Wastewater/Activity/PacpInspection/1.0Jan 23, 2019, 10:39 AM
01 0354_01 0353_01232019_030240.mpg
- Date
- 01/23/2019
- W/O
- 745625
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00215
- PipeID
- P00828
- Time
- 2:39 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5343
- Sewer Name
- 01 NADEAU TRUNK, SECTS 2&1
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745625_TV01077_JAN2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 01 0354
- Downstream MH
- 01 0353
- Dir. of Survey
- Downstream
- Length Surveyed
- 342.9 ft.
- Total Length
- 342.9 ft.
- Structural Index
- 4
- Structural Quick
- 4331
- Structural Rating
- 15
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (4)

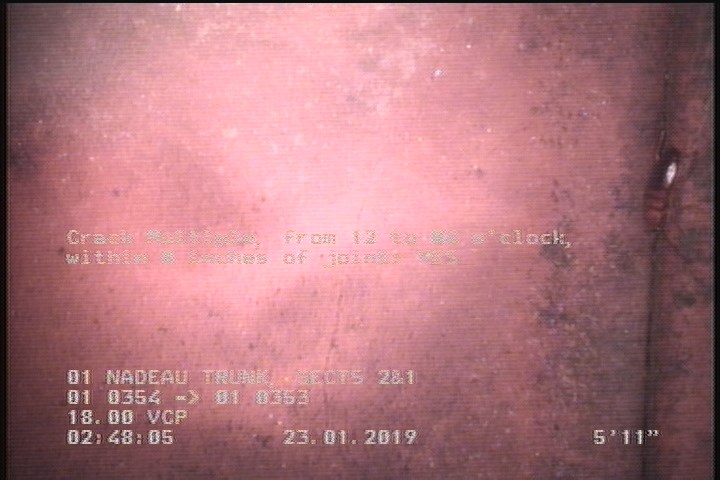

5.9 ft. - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

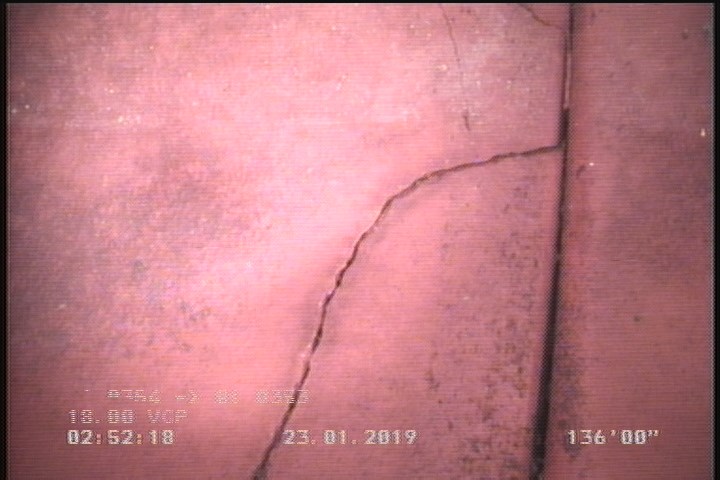

136 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

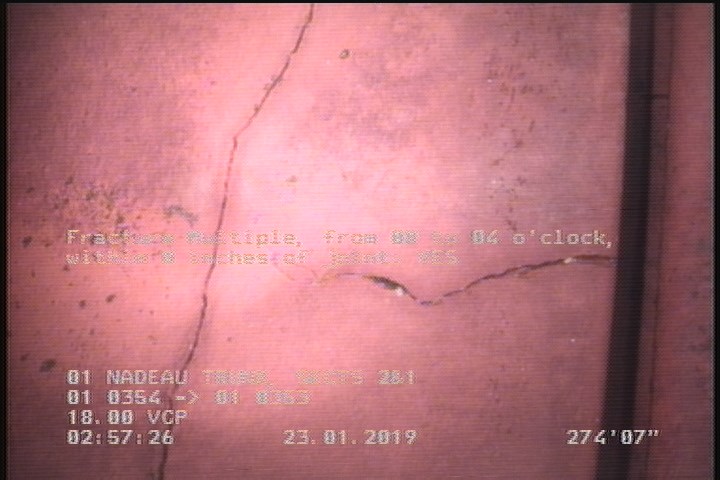

274.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

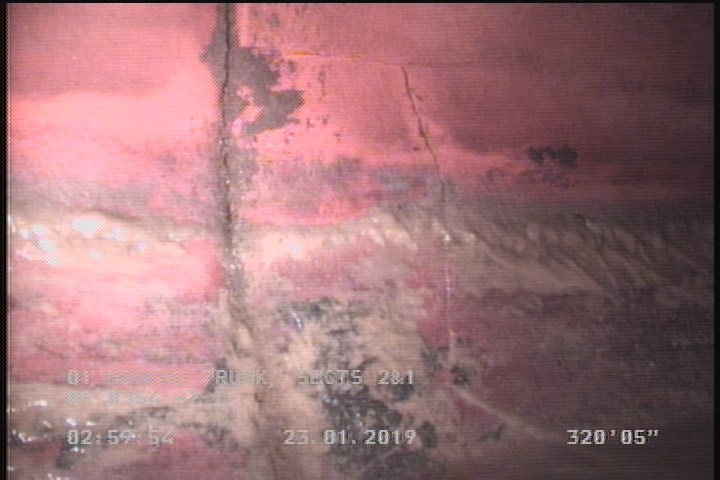

320.4 ft. - Fracture Multiple, from 07 to 09 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 320.4 | FM | — |
| 0 | AMH | 01 0354 |
| 0 | MWL | — |
| 5.9 | CM | — |
| 274.6 | FM | — |
| 342.9 | AMH | 01 0353 |
| 136 | FM | — |
| 0 | MWM | — |
Properties (4)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-01-23T02:39:09-08:00
- is_lateral_inspection
- false
