Wastewater/Activity/PacpInspection/1.0Jan 23, 2019, 08:58 AM
01 0357_01 0356_01232019_011536.mpg
- Date
- 01/23/2019
- W/O
- 745625
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00215
- PipeID
- P00831
- Time
- 12:58 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5343
- Sewer Name
- 01 NADEAU TRUNK, SECTS 2&1
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745625_TV01077_JAN2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 01 0357
- Downstream MH
- 01 0356
- Dir. of Survey
- Downstream
- Length Surveyed
- 335.4 ft.
- Total Length
- 335.4 ft.
- Structural Index
- 3
- Structural Quick
- 4231
- Structural Rating
- 13
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 17
Observation photos (2)

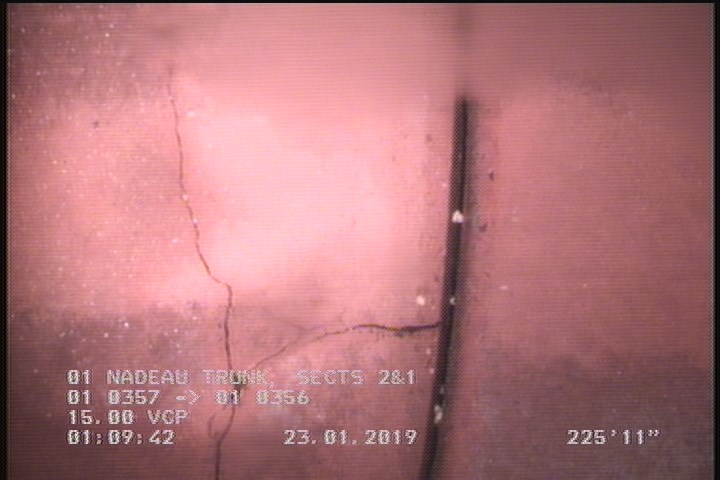

225.9 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

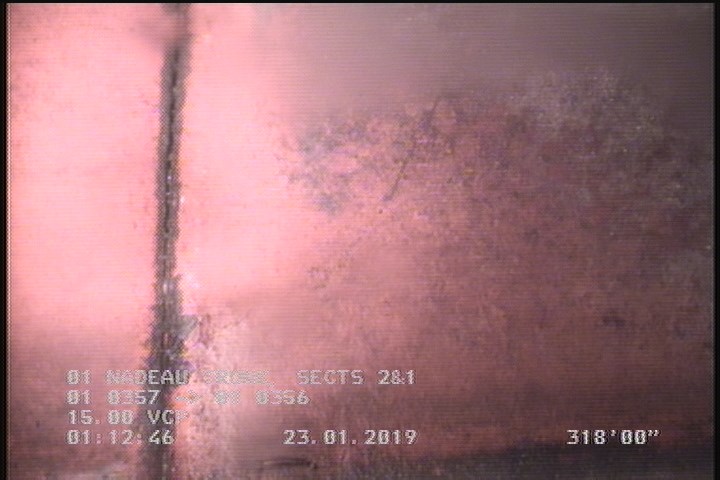

318 ft. - Crack Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 225.9 | FM | — |
| 184.8 | FM | — |
| 0 | AMH | 01 0357 |
| 335.4 | MGO | CONNECTION AT MH 9 OCLOCK |
| 0 | MWL | — |
| 318 | CM | — |
| 1.9 | FC | — |
| 335.4 | AMH | 01 0356 |
Properties (4)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-01-23T00:58:29-08:00
- is_lateral_inspection
- false
