Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 23, 2019, 09:37 AM

  • 01 0358_01 0357_01232019_015542.mpg

Date
01/23/2019
W/O
745625
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00215
PipeID
P00832
Time
1:37 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5343
Sewer Name
01 NADEAU TRUNK, SECTS 2&1
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
03
Purpose
Routine Assessment
Project
RFIR_WO_745625_TV01077_JAN2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0357
Downstream MH
01 0358
Dir. of Survey
Upstream
Length Surveyed
309.9 ft.
Total Length
309.9 ft.
Structural Index
4
Structural Quick
4200
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 01 0357 to 01 0358
MH: 01 0357MH: 01 0358upstream0 ft. AMH - Upstream Manhole, Survey Ends - 01 035887.8 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES200.9 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES309.9 ft. MWL - Water Level, 35 %of cross sectional area309.9 ft. AMH - Downstream Manhole, Survey Begins - 01 0357309.9 ft. MWM - Water Mark, 45 %of cross sectional area

Observation photos (2)

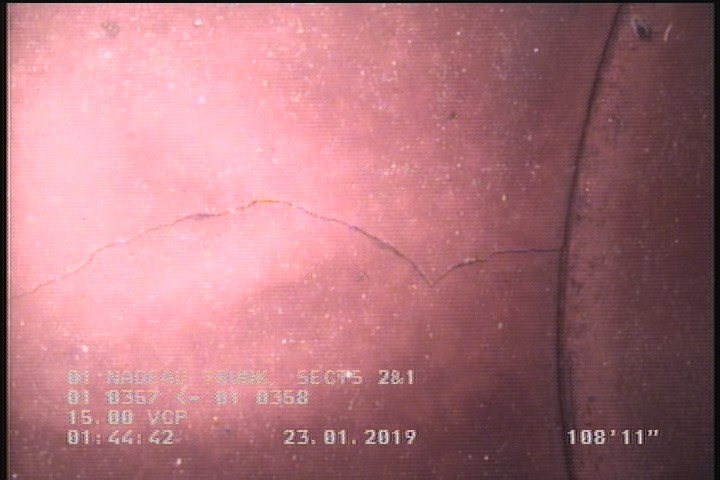

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    109 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

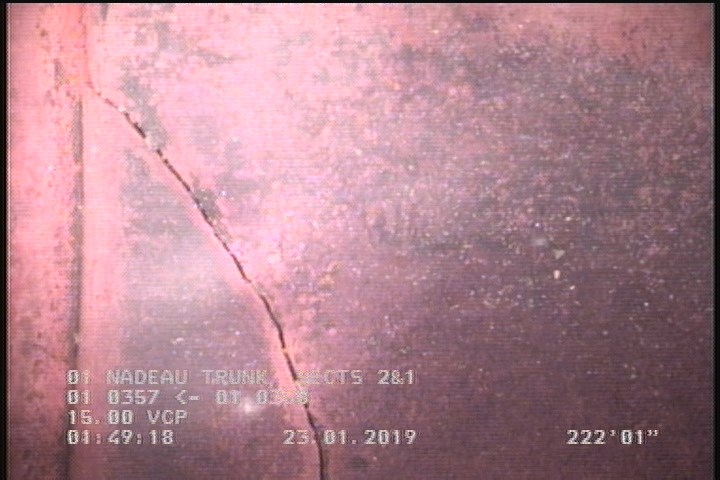

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    222.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P00832Work order 745625

Observations (6)

DistanceCodeObservation
222.1FM—
309.9AMH01 0358
109FM—
0MWL—
0AMH01 0357
0MWM—

Properties (4)

custom_field_two
3
customer
LACSD
datetime
2019-01-23T01:37:07-08:00
is_lateral_inspection
false
