Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 11, 2019, 10:57 AM

  • 02 1082_02 1081 _01112019_032644.mp4

Date
01/11/2019
W/O
745348
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00282
PipeID
P03656
Time
2:57 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5340
Sewer Name
02 MONTEBELLO DIVERSION TRUNK
City
MOTEBELLO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
18
Purpose
Routine Assessment
Project
RFIR_WO_745348_TV02212_JAN2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 1082
Downstream MH
02 1081
Dir. of Survey
Downstream
Length Surveyed
336.6 ft.
Total Length
336.8 ft.
Structural Index
5
Structural Quick
5531
Structural Rating
28
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
5
Overall Quick
—
Overall Rating
28
Pipe schematic from manhole 02 1082 to 02 1081
MH: 02 1082MH: 02 1081downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 10824.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 8"5.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start51.1 ft. SRV - Surface Reinforcement Visible, from 09 to 12 o'clock, within 8 inches of joint: YES110.7 ft. SRV - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES142.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 8"239.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 8"262.2 ft. SRV - Surface Reinforcement Visible, from 08 to 12 o'clock, within 8 inches of joint: YES272 ft. SRV - Surface Reinforcement Visible, from 10 to 12 o'clock, within 8 inches of joint: YES330.1 ft. SRV - Surface Reinforcement Visible, from 12 to 03 o'clock, within 8 inches of joint: YES336.5 ft. MGO - General Observation - MAGNEZIUM H.O COATING finish336.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish336.6 ft. AMH - Downstream Manhole, Survey Ends - 02 1081

Observation photos (6)

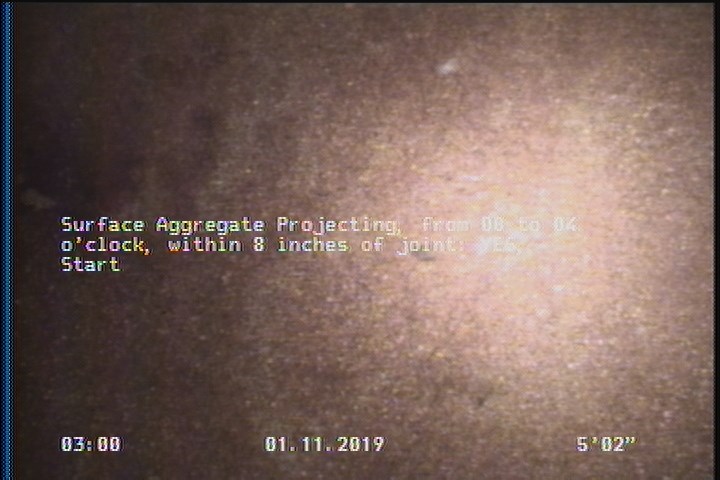

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

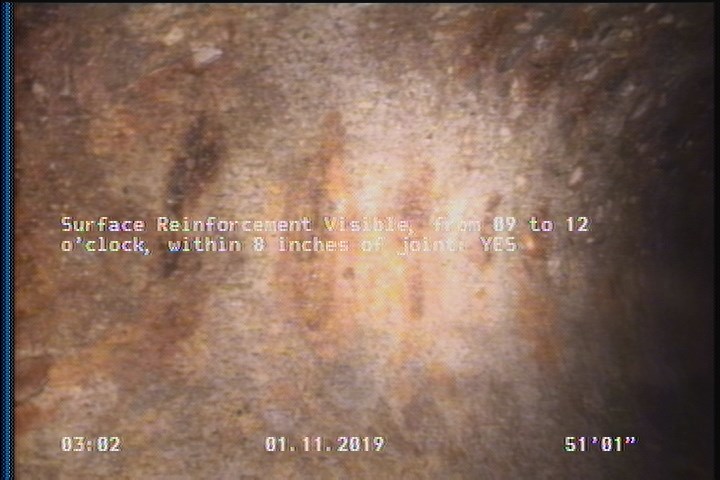

  • Surface Reinforcement Visible, from 09 to 12 o'clock, within 8 inches of joint: YES

    51.1 ft. - Surface Reinforcement Visible, from 09 to 12 o'clock, within 8 inches of joint: YES

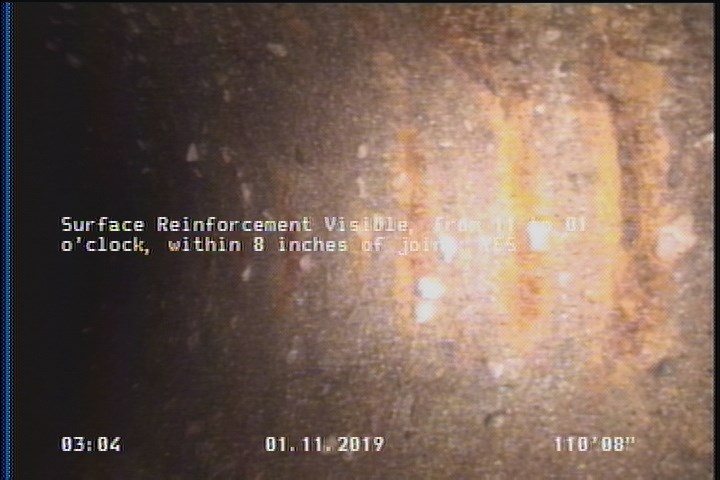

  • Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES

    110.7 ft. - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES

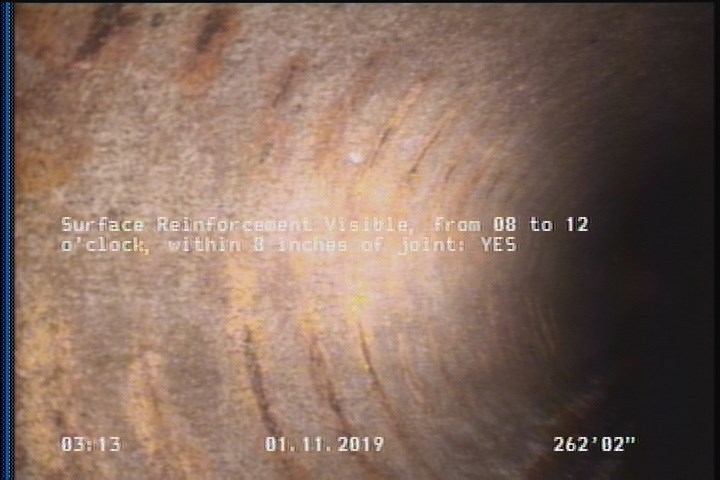

  • Surface Reinforcement Visible, from 08 to 12 o'clock, within 8 inches of joint: YES

    262.2 ft. - Surface Reinforcement Visible, from 08 to 12 o'clock, within 8 inches of joint: YES

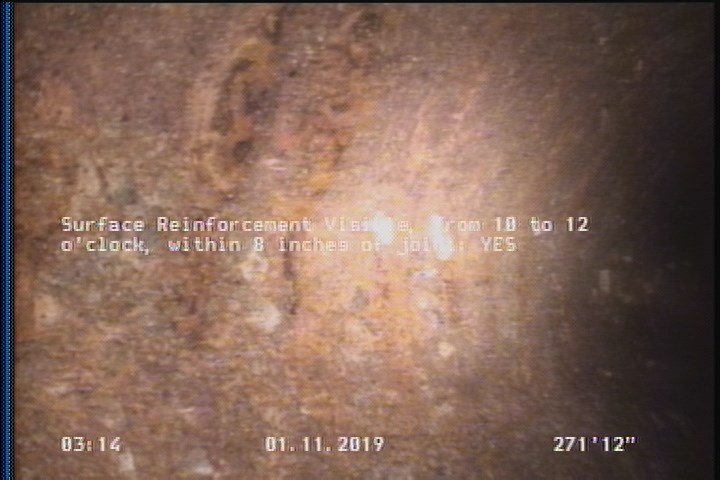

  • Surface Reinforcement Visible, from 10 to 12 o'clock, within 8 inches of joint: YES

    272 ft. - Surface Reinforcement Visible, from 10 to 12 o'clock, within 8 inches of joint: YES

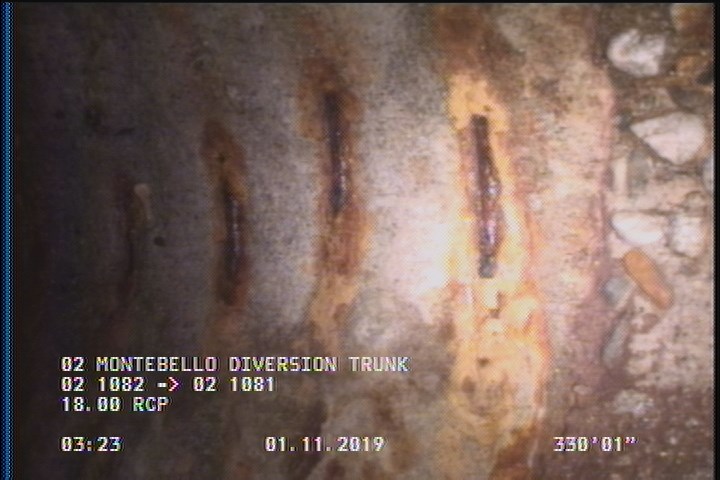

  • Surface Reinforcement Visible, from 12 to 03 o'clock, within 8 inches of joint: YES

    330.1 ft. - Surface Reinforcement Visible, from 12 to 03 o'clock, within 8 inches of joint: YES

All inspections of P03656Work order 745348

Observations (15)

DistanceCodeObservation
0MWM—
262.2SRV—
272SRV—
239.5TFC—
336.6SAP—
110.7SRV—
336.6AMH02 1081
51.1SRV—
142.6TFC—
330.1SRV—
0MWL—
336.5MGOMAGNEZIUM H.O COATING finish
0AMH02 1082
4.1TFA—
5.2SAP—

Properties (4)

custom_field_two
2
customer
LACSD
datetime
2019-01-11T02:57:09-08:00
is_lateral_inspection
false
