Wastewater/Activity/PacpInspection/1.0Jan 11, 2019, 10:07 AM
02 1083_02 1082 _01112019_022248.mp4
- Date
- 01/11/2019
- W/O
- 745348
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00282
- PipeID
- P03657
- Time
- 2:07 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5340
- Sewer Name
- 02 MONTEBELLO DIVERSION TRUNK
- City
- MOTEBELLO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745348_TV02212_JAN2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 1083
- Downstream MH
- 02 1082
- Dir. of Survey
- Downstream
- Length Surveyed
- 330.7 ft.
- Total Length
- 330.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

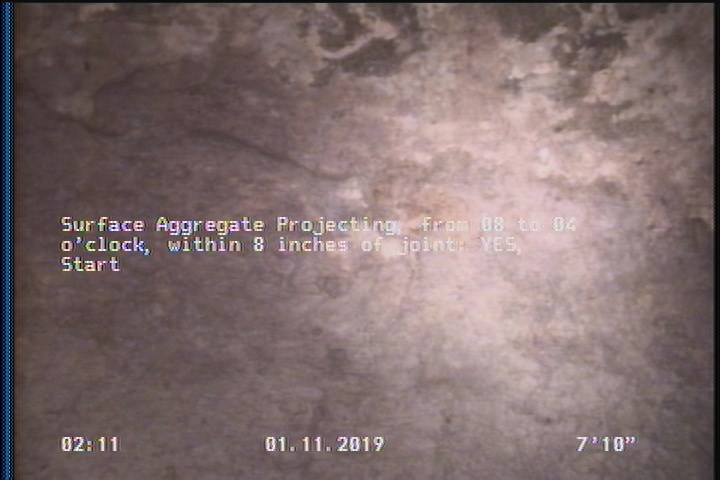

7.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

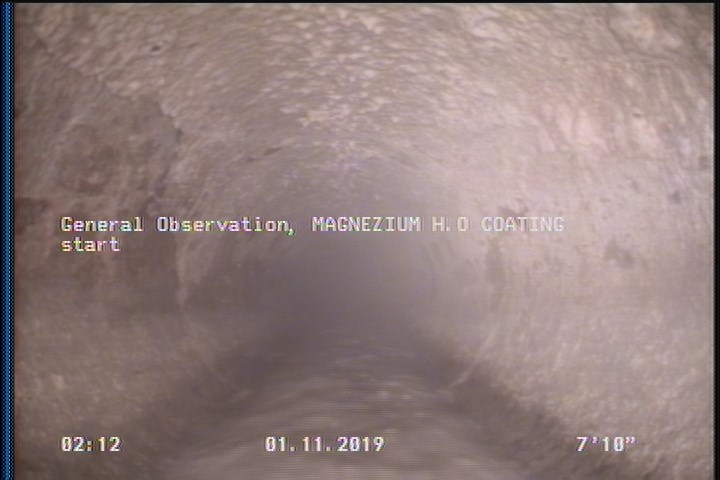

7.8 ft. - General Observation - MAGNEZIUM H.O COATING start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 327.5 | SAP | — |
| 7.8 | SAP | — |
| 0 | MWL | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 85.4 | TFA | — |
| 7.8 | MGO | MAGNEZIUM H.O COATING start |
| 0 | MWM | — |
| 0 | AMH | 02 1083 |
| 330.7 | AMH | 02 1082 |
| 46.9 | TFC | — |
| 327.5 | MGO | MAGNEZIUM H.O COATING finish |
Properties (4)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-11T02:07:45-08:00
- is_lateral_inspection
- false
