Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 11, 2019, 09:07 AM

  • 02 1087_02 1086 _011119_010730.mp4

Date
01/11/2019
W/O
745348
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00282
PipeID
P03661
Time
1:07 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5340
Sewer Name
02 MONTEBELLO DIVERSION TRUNK
City
MOTEBELLO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
18
Purpose
Routine Assessment
Project
RFIR_WO_745348_TV02212_JAN2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Square
Height
18 in.
Width
18 in.
Upstream MH
02 1086
Downstream MH
02 1087
Dir. of Survey
Upstream
Length Surveyed
334.5 ft.
Total Length
334.5 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 02 1086 to 02 1087
MH: 02 1086MH: 02 1087upstream0 ft. AMH - Upstream Manhole, Survey Ends - 02 10873 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish3 ft. MGO - General Observation - MAGNEZIUM H.O COATING finish13.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 8"53.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 8"101.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 8"157.3 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 8"207 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 8"255.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 8"304.2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 8"331.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start331.3 ft. MGO - General Observation - MAGNEZIUM H.O COATING start334.5 ft. MWM - Water Mark, 20 %of cross sectional area334.5 ft. MWL - Water Level, 10 %of cross sectional area334.5 ft. AMH - Downstream Manhole, Survey Begins - 02 1086

Observation photos (2)

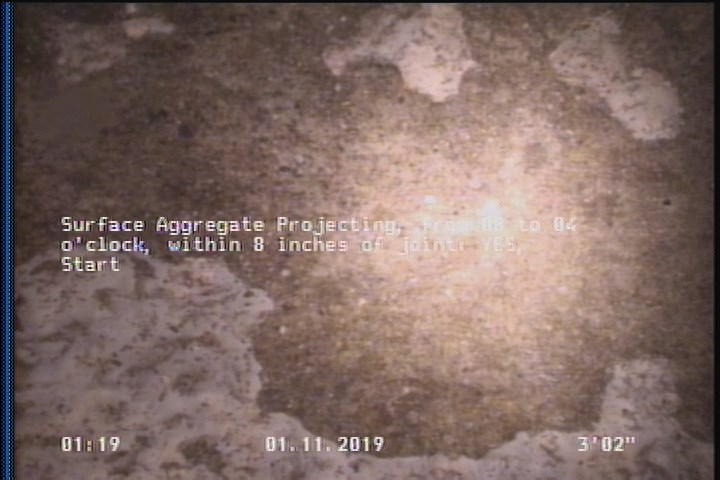

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

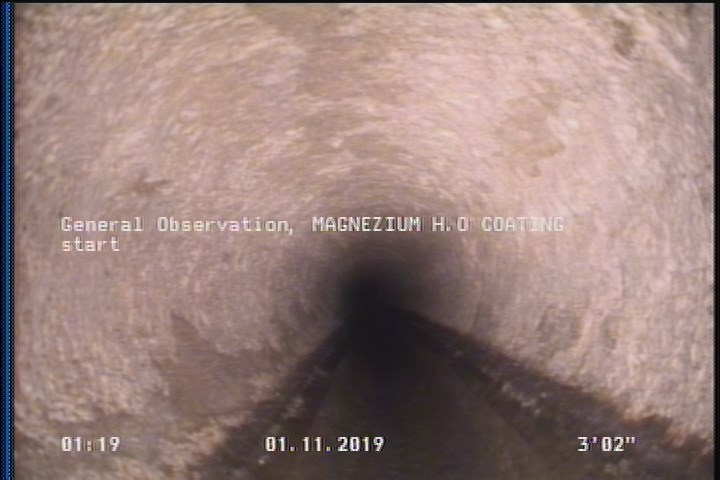

  • General Observation - MAGNEZIUM H.O COATING start

    3.2 ft. - General Observation - MAGNEZIUM H.O COATING start

All inspections of P03661Work order 745348

Observations (15)

DistanceCodeObservation
331.5SAP—
0MWM—
0MWL—
3.2SAP—
320.7TFC—
280.6TFC—
0AMH02 1086
334.5AMH02 1087
331.5MGOMAGNEZIUM H.O COATING finish
78.9TFC—
3.2MGOMAGNEZIUM H.O COATING start
177.2TFC—
30.3TFC—
232.7TFC—
127.5TFC—

Properties (4)

custom_field_two
2
customer
LACSD
datetime
2019-01-11T01:07:16-08:00
is_lateral_inspection
false
