Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 9, 2019, 09:09 AM

  • F 0273_F 0272 _01092019_011606.mp4

Date
01/09/2019
W/O
740302
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00040
PipeID
P10226
Time
1:09 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6318
Sewer Name
F JOINT OUTFALL F - UNIT 4 RELIEF
City
NORWALK
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
33
Purpose
Routine Assessment
Project
RFIR_WO_740302_TV02204_DEC2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
39 in.
Width
39 in.
Upstream MH
F 0273
Downstream MH
F 0272
Dir. of Survey
Downstream
Length Surveyed
81.5 ft.
Total Length
81.5 ft.
Structural Index
4
Structural Quick
5B3B
Structural Rating
128
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
128
Pipe schematic from manhole F 0273 to F 0272
MH: F 0273MH: F 0272downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - F 02730 ft. MWL - Water Level, 10 %of cross sectional area2.1 ft. SRC - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start81.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish81.5 ft. SRC - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish81.5 ft. AMH - Downstream Manhole, Survey Ends - F 0272

Observation photos (2)

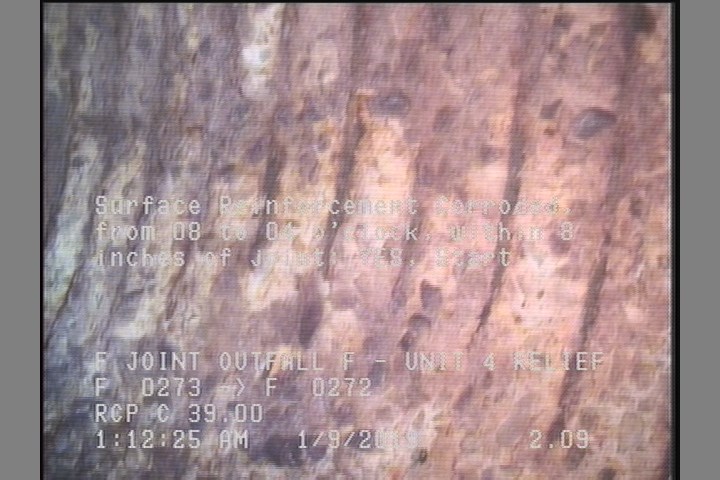

  • Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

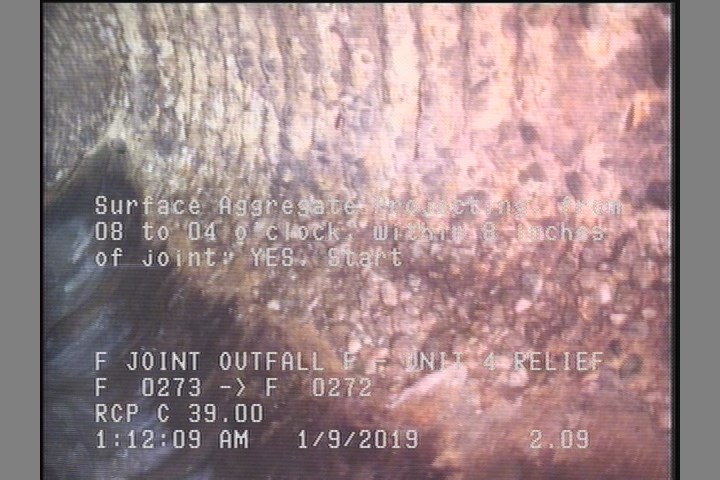

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P10226Work order 740302

Observations (8)

DistanceCodeObservation
81.5SAP—
0MWM—
81.5SRC—
0AMHF 0273
0MWL—
81.5AMHF 0272
2.1SRC—
2.1SAP—

Properties (6)

additional_info
SC365752
custom_field_two
1
customer
LACSD
datetime
2019-01-09T01:09:31-08:00
is_lateral_inspection
false
year_laid
31219
