Wastewater/Activity/PacpInspection/1.0Jan 9, 2019, 09:45 AM
F 0271_F 0270 _01092019_021411.mp4
- Date
- 01/09/2019
- W/O
- 740302
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00040
- PipeID
- P10224
- Time
- 1:45 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6318
- Sewer Name
- F JOINT OUTFALL F - UNIT 4 RELIEF
- City
- NORWALK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740302_TV02204_DEC2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Width
- 39 in.
- Upstream MH
- F 0271
- Downstream MH
- F 0270
- Dir. of Survey
- Downstream
- Length Surveyed
- 801.5 ft.
- Total Length
- 801.5 ft.
- Structural Index
- 3
- Structural Quick
- 3_2O
- Structural Rating
- 638
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 638
Observation photos (2)

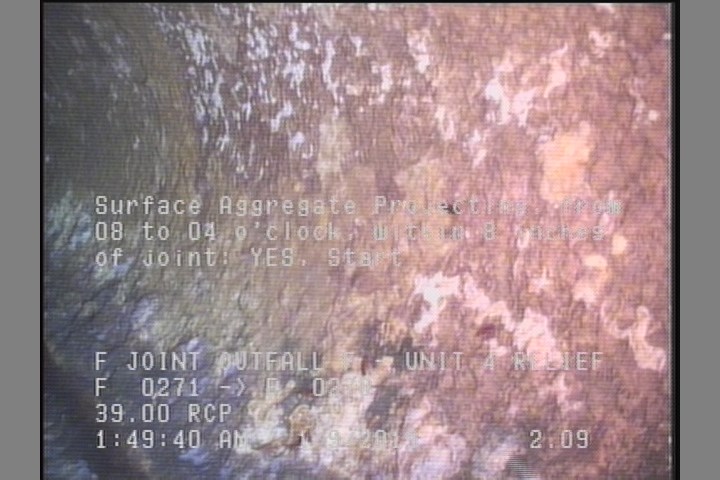

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

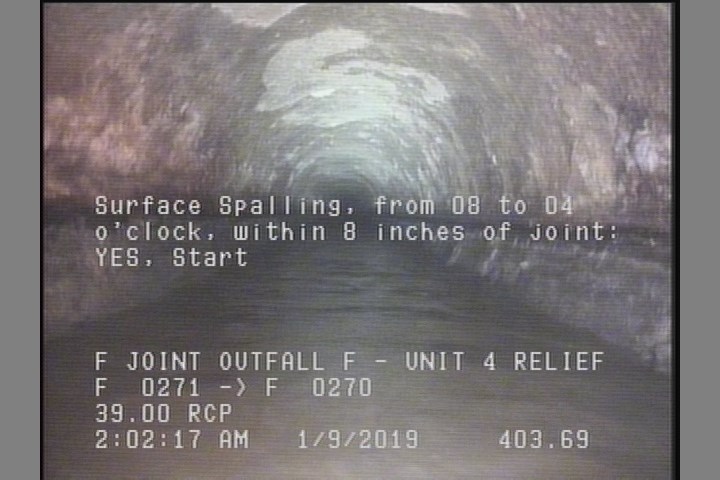

402.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SAP | — |
| 0 | AMH | F 0271 |
| 0 | MWM | — |
| 801.5 | SAP | — |
| 0 | MWL | — |
| 801.5 | AMH | F 0270 |
| 402.1 | SSS | — |
| 799.2 | SSS | — |
Properties (6)
- additional_info
- SC365752
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-01-09T01:45:31-08:00
- is_lateral_inspection
- false
- year_laid
- 31219
