Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 11, 2018, 11:46 PM

  • 02 1888_02 1887_01102019_021914.mp4

Date
12/11/2018
W/O
740174
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z01172
PipeID
P04252
Time
3:46 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5336
Sewer Name
02 DOUGLAS AVENUE RELOCATION TRUNK
City
EAST LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
08
Purpose
Routine Assessment
Project
RFIR_WO_740147_TV02046_DEC2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
02 1888
Downstream MH
02 1887
Dir. of Survey
Downstream
Length Surveyed
290.6 ft.
Total Length
290.6 ft.
Structural Index
3
Structural Quick
4133
Structural Rating
13
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 02 1888 to 02 1887
MH: 02 1888MH: 02 1887downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 18880 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area3.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 8"6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 8"6.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start31.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 8"57.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 8"64 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 8"71.4 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start72.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 8"115.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 8"116.7 ft. FM - Fracture Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES125.9 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES160.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 8"172.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 8"184 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 8"217.2 ft. RPZ - Repair Other, within 8 inches of joint: YES - SPOT REPAIR222.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 8"238.3 ft. RPP - Repair Patch, from 12 to 12 o'clock, within 8 inches of joint: YES259.2 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES263.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"288.5 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Finish288.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish290.2 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH290.6 ft. AMH - Downstream Manhole, Survey Ends - 02 1887

Observation photos (5)

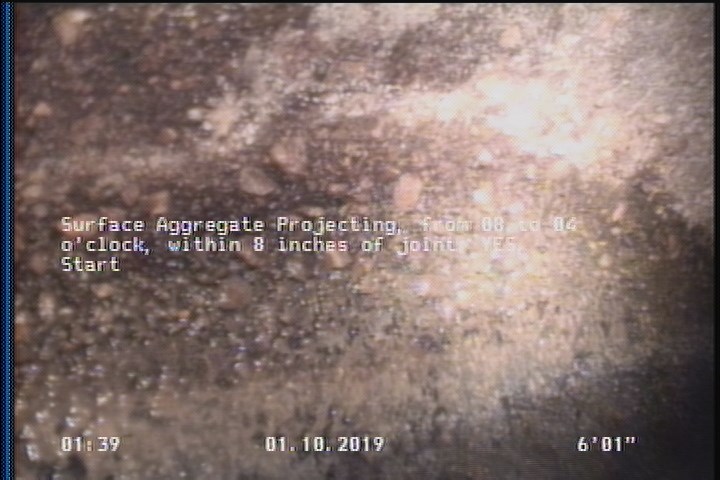

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

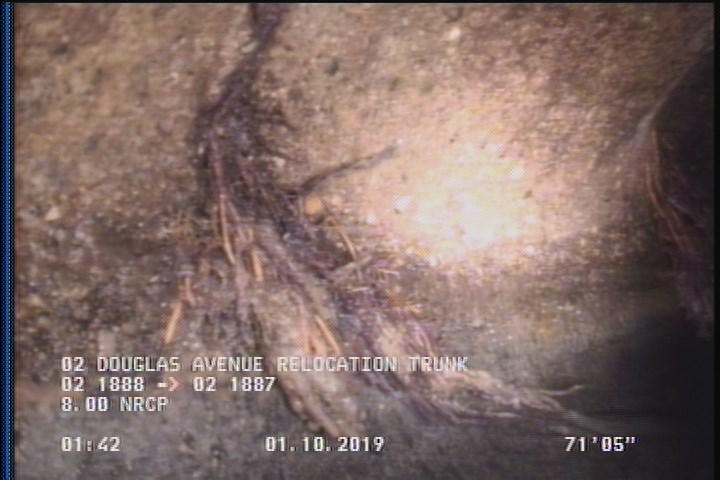

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

    71.4 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

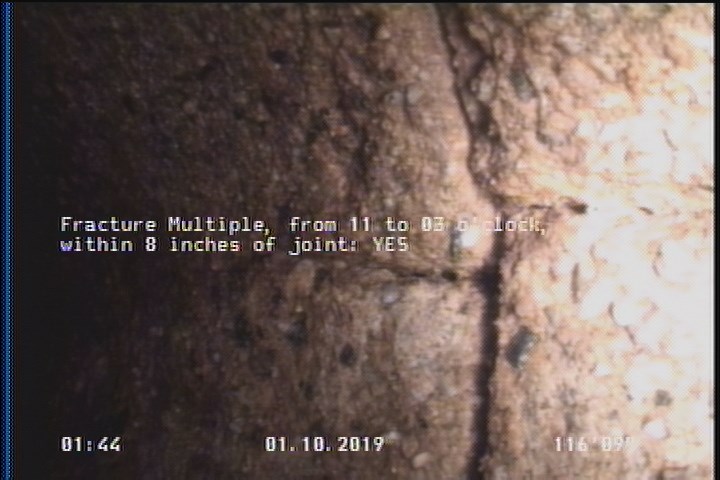

  • Fracture Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES

    116.7 ft. - Fracture Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES

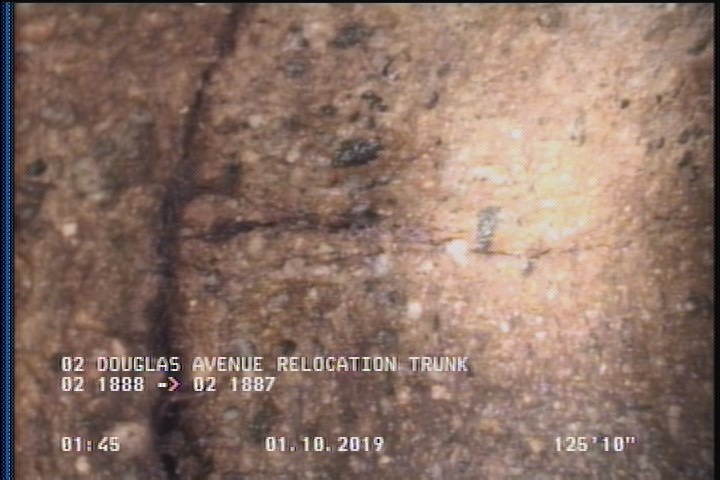

  • Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    125.9 ft. - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES

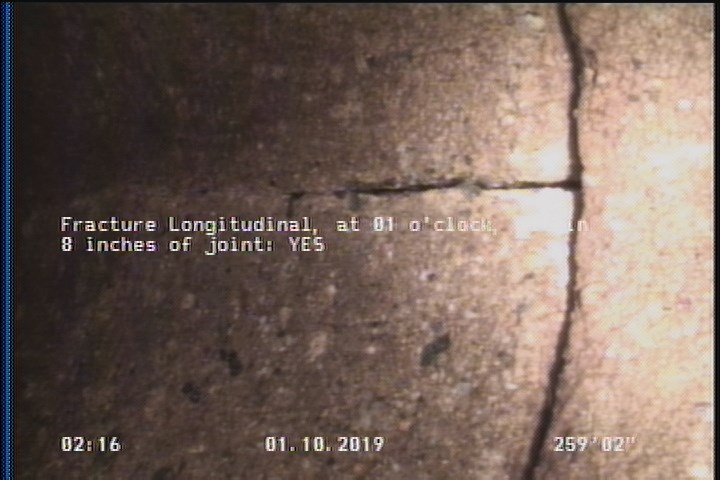

  • Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    259.2 ft. - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES

All inspections of P04252Work order 740174

Observations (26)

DistanceCodeObservation
6TFA—
115.2TFA—
222.3TFA—
125.9FL—
6.1SAP—
64TFA—
184TFA—
0AMH02 1888
290.2MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
290.6AMH02 1887
238.3RPP—
3.1TF—
116.7FM—
72.9TF—
217.2RPZSPOT REPAIR
0MWM—
259.2FL—
263.6TFA—
31.6TFA—
57.9TF—
160.4TF—
0MWL—
288.5RFJ—
172.2TF—
71.4RFJ—
288.5SAP—

Properties (4)

custom_field_two
2
customer
LACSD
datetime
2018-12-11T15:46:56-08:00
is_lateral_inspection
false
