Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 4, 2019, 07:15 AM

  • 01 0525_01 0524_01032019_232854.mp4

Date
01/03/2019
W/O
740024
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00206
PipeID
P01010
Time
11:15 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6313
Sewer Name
01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
City
LOS ANGELES
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_740024_TV01017_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0525
Downstream MH
01 0524
Dir. of Survey
Downstream
Length Surveyed
299.6 ft.
Total Length
299.6 ft.
Structural Index
3
Structural Quick
3O22
Structural Rating
238
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
238
Pipe schematic from manhole 01 0525 to 01 0524
MH: 01 0525MH: 01 0524downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 05250 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 15 %of cross sectional area2.6 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start14 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish24.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"25.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start27.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"67.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start74.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"77.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"125 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"127.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"169.5 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"175.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"178.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"183.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish223.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"225.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"276.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"279.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"299.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish299.6 ft. AMH - Downstream Manhole, Survey Ends - 01 0524

Observation photos (4)

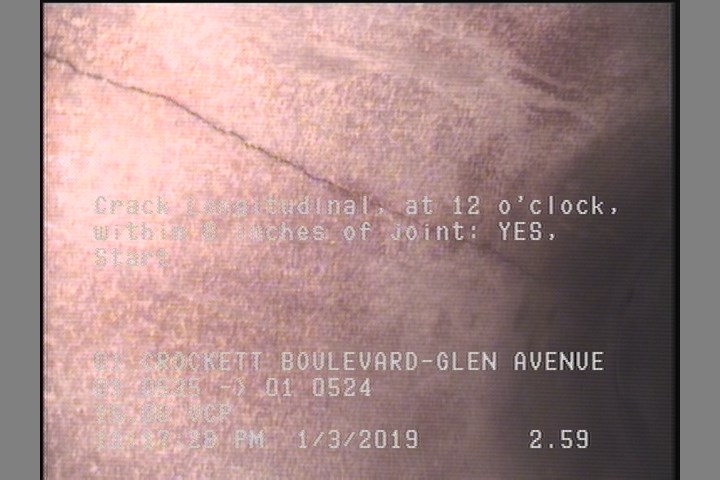

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    2.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

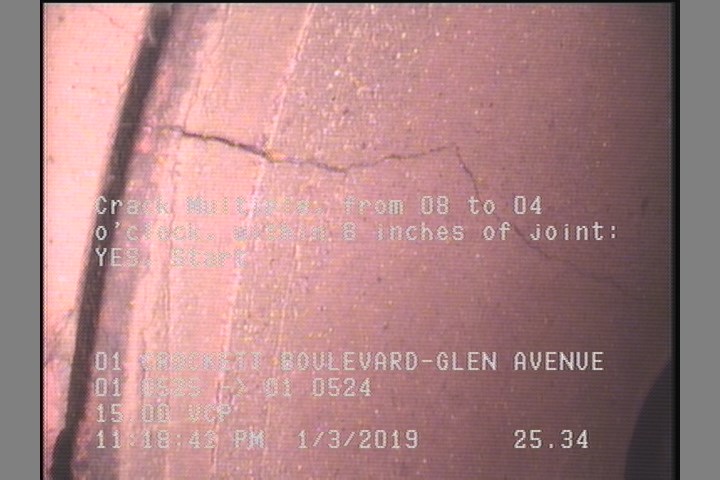

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    25.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

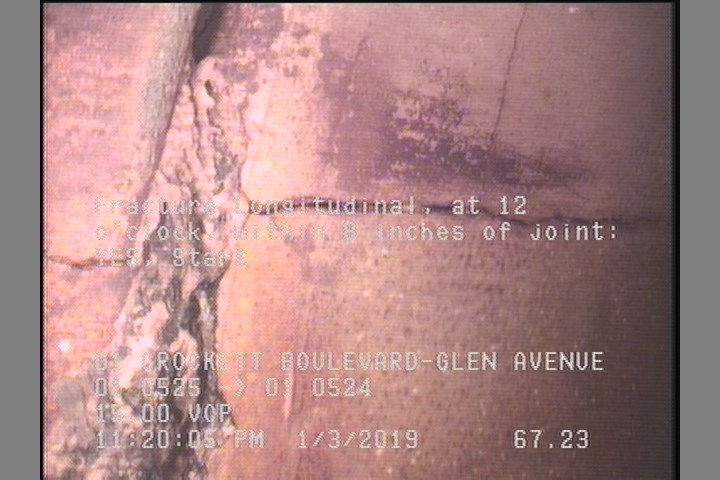

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    67.2 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

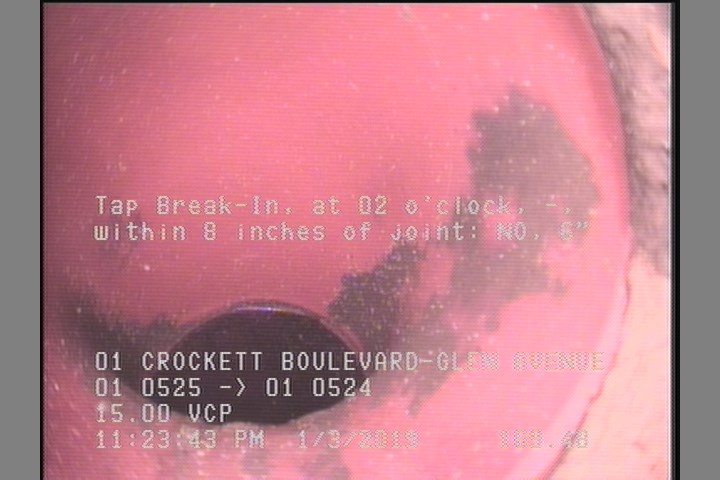

  • Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    169.5 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P01010Work order 740024

Observations (25)

DistanceCodeObservation
25.3CM—
27.3TFC—
0MGOCONNECTION AT MH 9 O'CLOCK
299.6CM—
225.9TFC—
74.7TFC—
24.5TFC—
183.6FL—
127.9TFC—
2.6CL—
0MWM—
0AMH01 0525
125TFC—
223.1TFC—
0MGOCONNECTION AT MH 3 O'CLOCK
77.2TFC—
175.7TFC—
299.6AMH01 0524
178.4TFC—
279.4TFC—
67.2FL—
169.5TB—
14CL—
0MWL—
276.6TF—

Properties (5)

additional_info
SC365497
custom_field_two
3
customer
LACSD
datetime
2019-01-03T23:15:41-08:00
is_lateral_inspection
false
