Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 7, 2019, 10:40 AM

  • 01 0537_01 0536_01072019_025311.mp4

Date
01/07/2019
W/O
740024
Weather
Light Rain
Operator/Surveyor
B.FUGATE
Sewer ID
Z00206
PipeID
P01024
Time
2:40 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6314
Sewer Name
01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_740024_TV01017_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
01 0536
Downstream MH
01 0537
Dir. of Survey
Upstream
Length Surveyed
250.5 ft.
Total Length
250.5 ft.
Structural Index
4
Structural Quick
4E3C
Structural Rating
181
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
181
Pipe schematic from manhole 01 0536 to 01 0537
MH: 01 0536MH: 01 0537upstream0 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. AMH - Upstream Manhole, Survey Ends - 01 05374.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"19.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"43 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"45.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"48.9 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"68.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"86.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"94.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"109.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"117.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"145.8 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"150.5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start150.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish155.5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES162.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"165.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"209.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"211.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"244.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start250.5 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK250.5 ft. MWL - Water Level, 10 %of cross sectional area250.5 ft. MWM - Water Mark, 25 %of cross sectional area250.5 ft. MGO - General Observation - CONNECTION AT MH 6 O'CLOCK250.5 ft. AMH - Downstream Manhole, Survey Begins - 01 0536

Observation photos (5)

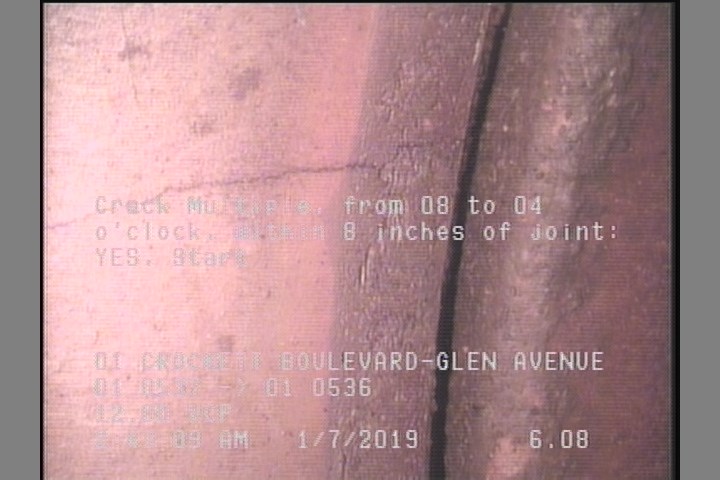

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

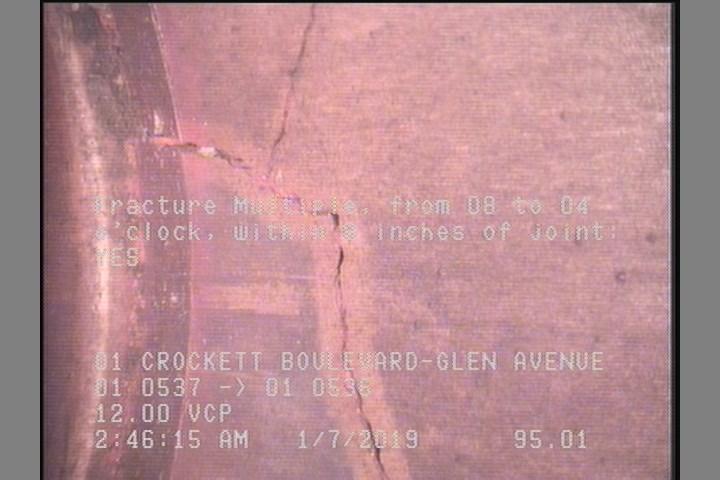

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    95 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

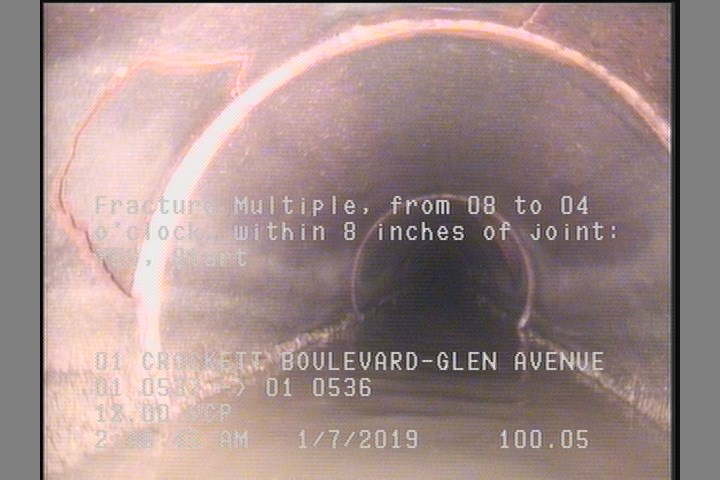

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    100 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

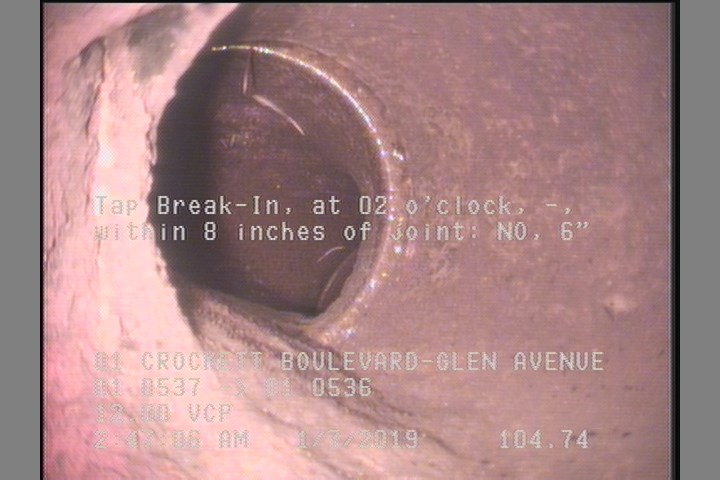

  • Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    104.7 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

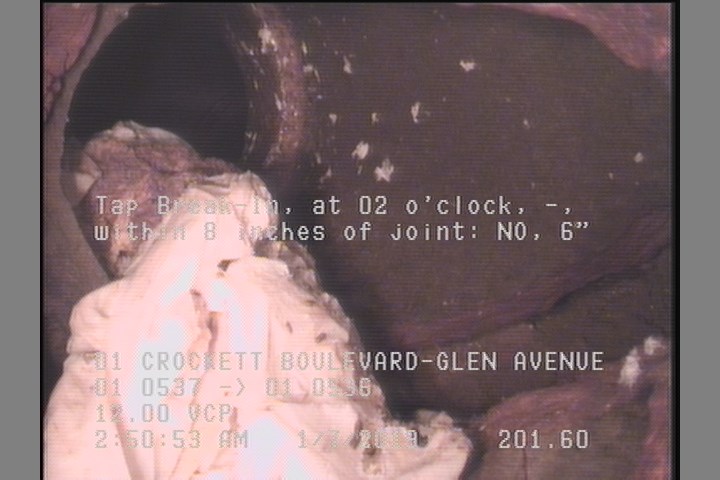

  • Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    201.6 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P01024Work order 740024

Observations (26)

DistanceCodeObservation
95FM—
246TFC—
6.1CM—
100FM—
207.5TFC—
250.5FM—
0MGOCONNECTION AT MH 3 O'CLOCK
0MWL—
201.6TB—
181.8TFC—
163.9TF—
85.1TFC—
204.9TFC—
38.9TFC—
100CM—
41.1TFC—
132.7TFC—
0MWM—
88.2TFC—
250.5AMH01 0537
104.7TB—
231.2TFC—
0MGOCONNECTION AT MH 6 O'CLOCK
141.2TF—
155.8TFC—
0AMH01 0536

Properties (5)

additional_info
SC365498
custom_field_two
2
customer
LACSD
datetime
2019-01-07T02:40:11-08:00
is_lateral_inspection
false
