Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 4, 2019, 08:04 AM

  • 01 0527A_01 0527_01042019_001653.mp4

Date
01/04/2019
W/O
740024
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00206
PipeID
P01014
Time
12:04 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6313
Sewer Name
01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_740024_TV01017_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0527A
Downstream MH
01 0527
Dir. of Survey
Downstream
Length Surveyed
342.6 ft.
Total Length
342.6 ft.
Structural Index
3
Structural Quick
423L
Structural Rating
209
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
209
Pipe schematic from manhole 01 0527A to 01 0527
MH: 01 0527AMH: 01 0527downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 01 0527A0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area5.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start85.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"87.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"144.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"147.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"186.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"223.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES225.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"227.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"275.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"278.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"339.5 ft. FM - Fracture Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES342.6 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK342.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish342.6 ft. AMH - Downstream Manhole, Survey Ends - 01 0527

Observation photos (3)

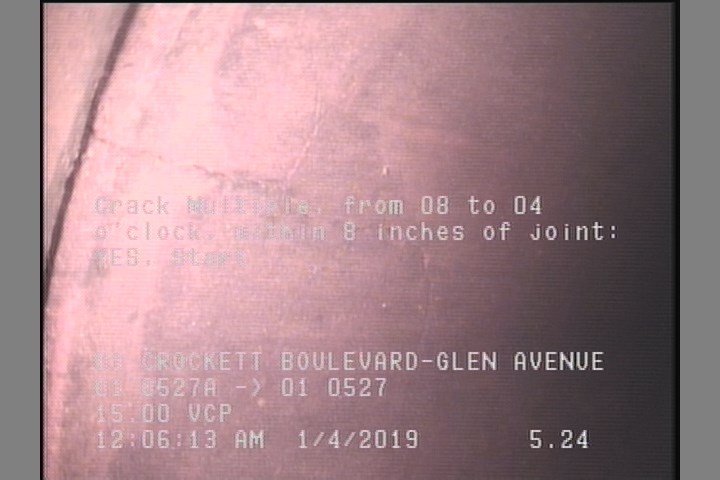

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

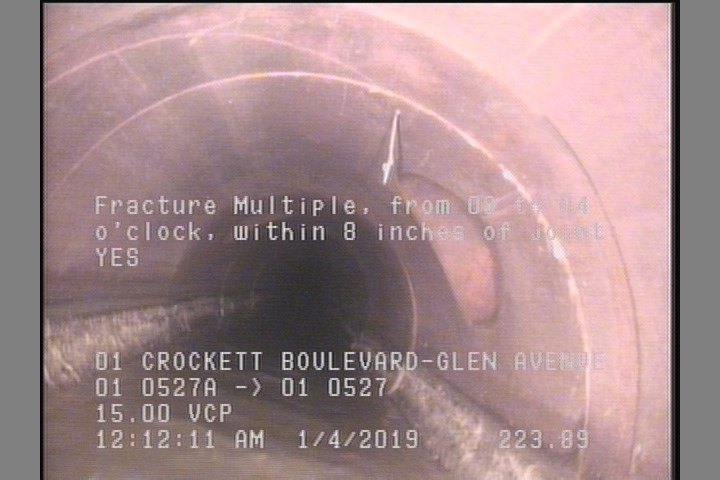

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    223.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

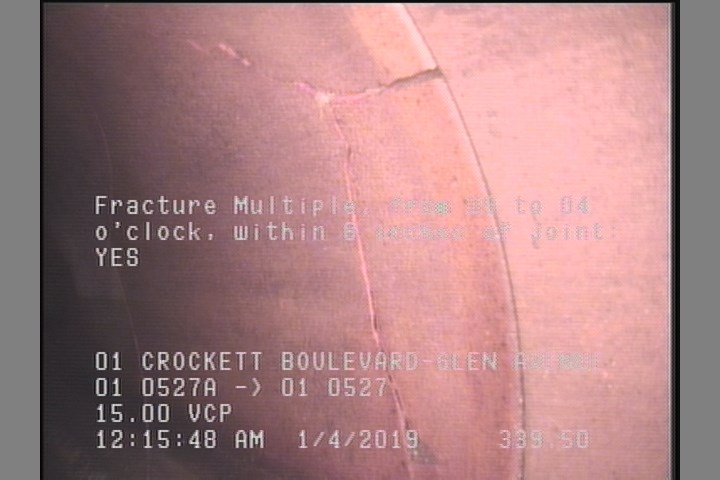

  • Fracture Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

    339.5 ft. - Fracture Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

All inspections of P01014Work order 740024

Observations (19)

DistanceCodeObservation
342.6MGOCONNECTION AT MH 9 O'CLOCK
0MGOCONNECTION AT MH 9 O'CLOCK
278.2TFC—
85.1TFC—
0AMH01 0527A
275.5TFC—
342.6CM—
5.2CM—
186.5TFC—
0MWL—
223.9FM—
339.5FM—
144.6TFC—
87.9TFC—
0MWM—
147.2TFC—
342.6AMH01 0527
225.2TFC—
227.8TFC—

Properties (5)

additional_info
SC365497
custom_field_two
3
customer
LACSD
datetime
2019-01-04T00:04:38-08:00
is_lateral_inspection
false
