Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 7, 2019, 10:57 AM

  • 01 0536_01 0535_01072019_030722.mp4

Date
01/07/2019
W/O
740024
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00206
PipeID
P01023
Time
2:57 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6314
Sewer Name
01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_740024_TV01017_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
01 0536
Downstream MH
01 0535
Dir. of Survey
Downstream
Length Surveyed
162.1 ft.
Total Length
162.1 ft.
Structural Index
3
Structural Quick
413E
Structural Rating
100
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
100
Pipe schematic from manhole 01 0536 to 01 0535
MH: 01 0536MH: 01 0535downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 05360 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT MH 6 O'CLOCK0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area3.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start54.7 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES80.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"107.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"148.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"162.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish162.1 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK162.1 ft. AMH - Downstream Manhole, Survey Ends - 01 0535

Observation photos (2)

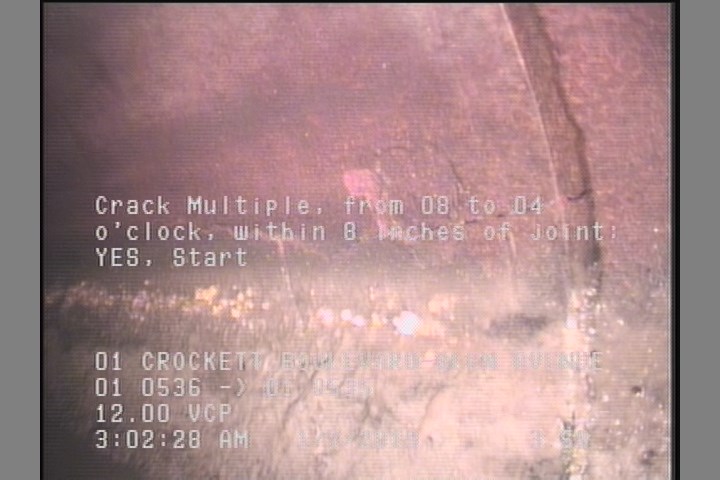

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

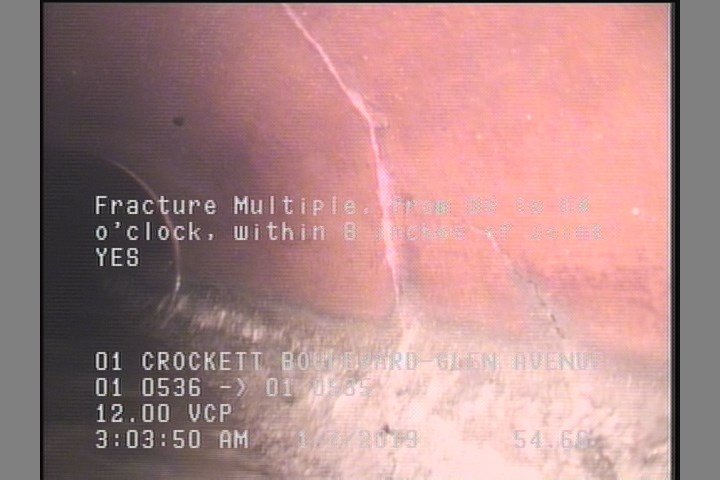

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    54.7 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P01023Work order 740024

Observations (13)

DistanceCodeObservation
0AMH01 0536
162.1CM—
0MGOCONNECTION AT MH 3 O'CLOCK
162.1MGOCONNECTION AT MH 9 O'CLOCK
0MGOCONNECTION AT MH 6 O'CLOCK
80.3TFC—
107.3TFC—
0MWM—
3.6CM—
0MWL—
162.1AMH01 0535
54.7FM—
148.9TFC—

Properties (5)

additional_info
SC365498
custom_field_two
3
customer
LACSD
datetime
2019-01-07T02:57:03-08:00
is_lateral_inspection
false
