Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 7, 2019, 09:03 AM

  • 01 0519_01 0518_01072019_012253.mp4

Date
01/07/2019
W/O
740024
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00206
PipeID
P01003
Time
1:03 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6314
Sewer Name
01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_740024_TV01017_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0519
Downstream MH
01 0518
Dir. of Survey
Downstream
Length Surveyed
302.1 ft.
Total Length
302.1 ft.
Structural Index
3
Structural Quick
3J00
Structural Rating
162
O&M Index
2
O&M Quick
3621
O&M Rating
22
Overall Index
3
Overall Quick
—
Overall Rating
184
Pipe schematic from manhole 01 0519 to 01 0518
MH: 01 0519MH: 01 0518downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 05190 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"11.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"30.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES36.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start43.5 ft. RML - Roots Medium Lateral, at 10 o'clock, 15 %, within 8 inches of joint: NO43.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"43.5 ft. RFC - Roots Fine Connection, from 08 to 10 o'clock44.8 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start70.8 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish74.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"111.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"147.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"165 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"204 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"208.4 ft. RFC - Roots Fine Connection, at 12 o'clock208.4 ft. TBI - Tap Break-In Intruding, at 12 o'clock, -, -, within 8 inches of joint: NO, 6", 1"209.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"255.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"297.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"302.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish302.1 ft. AMH - Downstream Manhole, Survey Ends - 01 0518302.1 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (4)

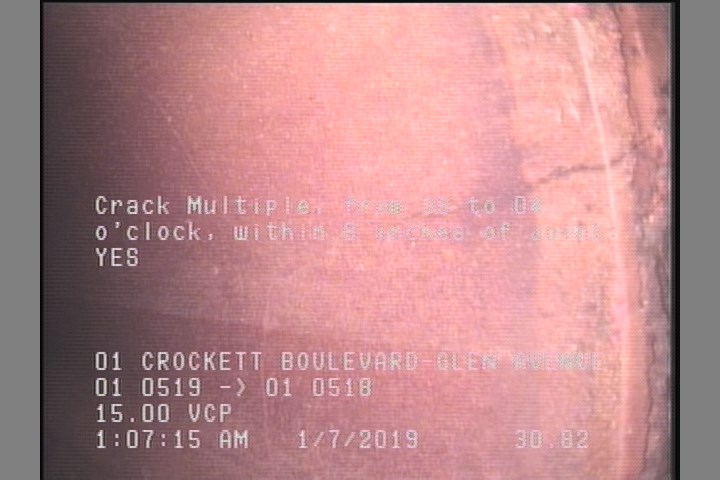

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    30.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

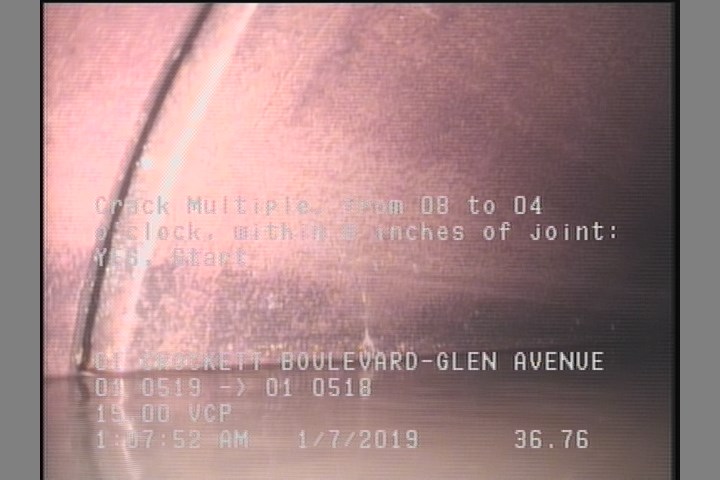

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    36.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

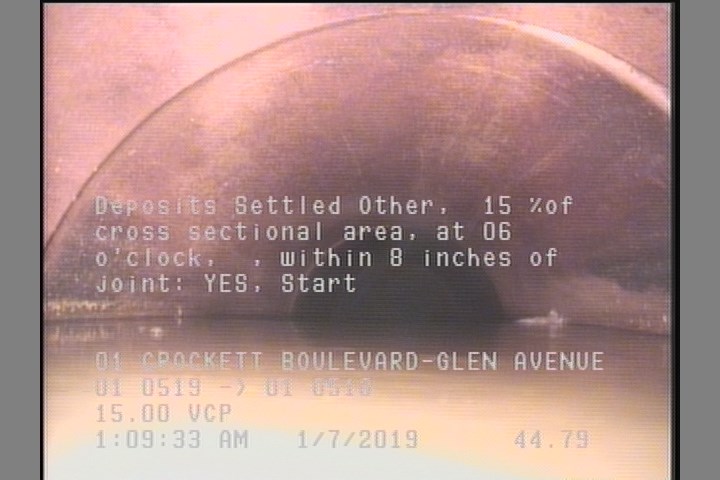

  • Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    44.8 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

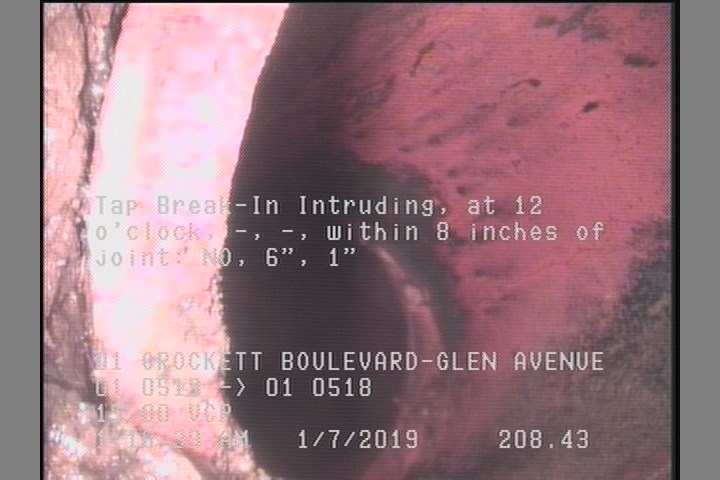

  • Tap Break-In Intruding, at 12 o'clock, -, -, within 8 inches of joint: NO, 6", 1"

    208.4 ft. - Tap Break-In Intruding, at 12 o'clock, -, -, within 8 inches of joint: NO, 6", 1"

All inspections of P01003Work order 740024

Observations (25)

DistanceCodeObservation
0AMH01 0519
36.8CM—
74.7TFC—
44.8DSZ—
30.8CM—
302.1CM—
43.5RML—
165TF—
302.1AMH01 0518
43.5TF—
255.2TF—
43.5RFC—
302.1MGOCONNECTION AT MH 3 O'CLOCK
70.8DSZ—
209.6TFC—
208.4RFC—
0MWL—
11.7TF—
111.1TF—
208.4TBI—
0MWM—
297.6TF—
147.7TF—
9TFC—
204TFC—

Properties (5)

additional_info
SC365498
custom_field_two
3
customer
LACSD
datetime
2019-01-07T01:03:35-08:00
is_lateral_inspection
false
