Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 4, 2019, 06:15 AM

  • 01 0526A_01 0526_01032019_223737.mp4

Date
01/03/2019
W/O
740024
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00206
PipeID
P01012
Time
10:15 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6313
Sewer Name
01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
City
LOS ANGELES
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_740024_TV01017_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0526A
Downstream MH
01 0526
Dir. of Survey
Downstream
Length Surveyed
133.7 ft.
Total Length
133.7 ft.
Structural Index
3
Structural Quick
3D2B
Structural Rating
101
O&M Index
2
O&M Quick
2D00
O&M Rating
52
Overall Index
2
Overall Quick
—
Overall Rating
153
Pipe schematic from manhole 01 0526A to 01 0526
MH: 01 0526AMH: 01 0526downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 0526A0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK6.1 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start16.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"18 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES19.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"20.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start24.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: NO59.7 ft. MWLS - Water Level, Sag in pipe, 25 %of cross sectional area, Start67 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"69.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"117.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"119.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"126.2 ft. MWLS - Water Level, Sag in pipe, 25 %of cross sectional area, Finish133.7 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish133.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish133.7 ft. AMH - Downstream Manhole, Survey Ends - 01 0526

Observation photos (4)

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

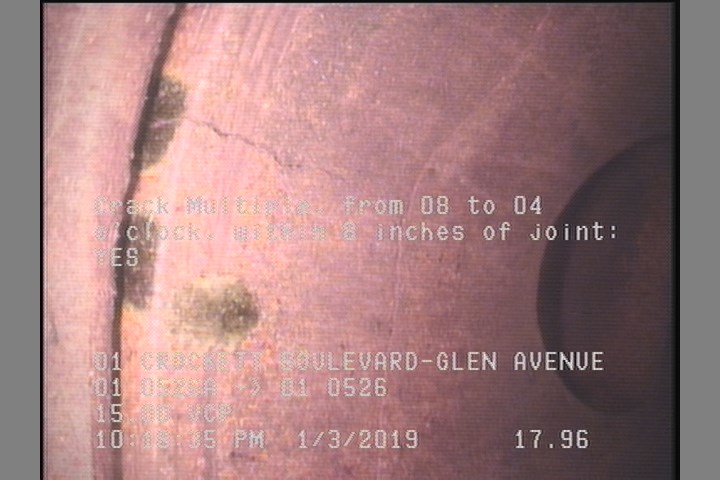

    18 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

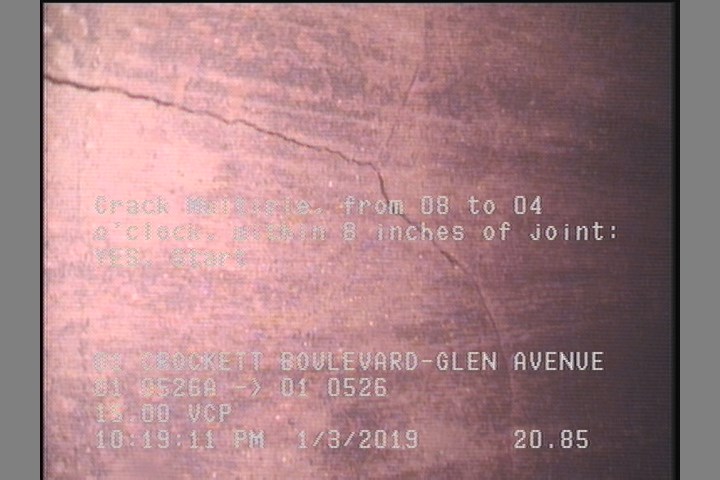

    20.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: NO

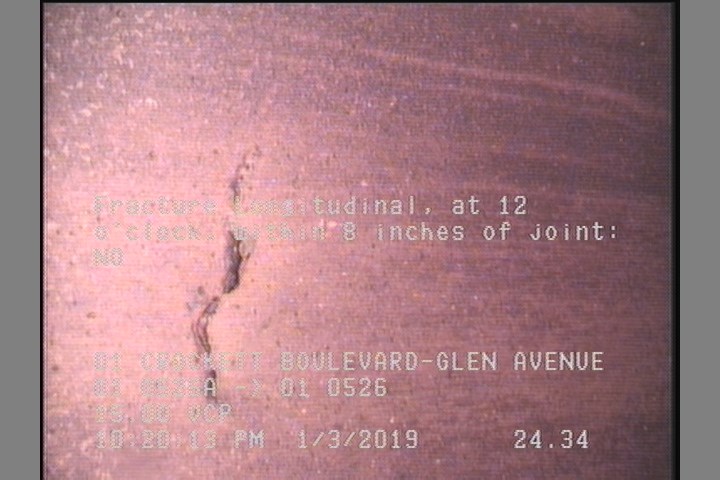

    24.3 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: NO

  • Water Level, Sag in pipe, 25 %of cross sectional area, Start

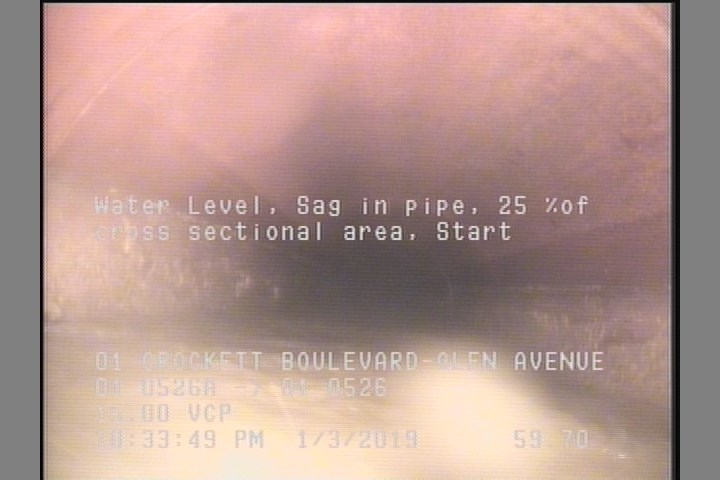

    59.7 ft. - Water Level, Sag in pipe, 25 %of cross sectional area, Start

All inspections of P01012Work order 740024

Observations (19)

DistanceCodeObservation
133.7DSZ—
0MWM—
0MWL—
6.1DSZ—
117.2TFC—
59.7MWLS—
0AMH01 0526A
133.7CM—
24.3FL—
0MGOCONNECTION AT MH 3 O'CLOCK
119.9TFC—
16.8TFC—
126.2MWLS—
20.8CM—
133.7AMH01 0526
19.7TFC—
67TFC—
18CM—
69.7TFC—

Properties (5)

additional_info
SC365497
custom_field_two
3
customer
LACSD
datetime
2019-01-03T22:15:29-08:00
is_lateral_inspection
false
