Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 4, 2019, 06:02 AM

  • 01 0527_01 0526A_01032019_221441.mp4

Date
01/03/2019
W/O
740024
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00206
PipeID
P01013
Time
10:02 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6313
Sewer Name
01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
RFIR_WO_740024_TV01017_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0527
Downstream MH
01 0526A
Dir. of Survey
Downstream
Length Surveyed
212.6 ft.
Total Length
212.6 ft.
Structural Index
3
Structural Quick
3I00
Structural Rating
147
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
147
Pipe schematic from manhole 01 0527 to 01 0526A
MH: 01 0527MH: 01 0526Adownstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 05270 ft. MGO - General Observation - CONNECTION AT MH 6 O'CLOCK4.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start9.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start51.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish78.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"80.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"129 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"131.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"179.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"181.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"211.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish212.6 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK212.6 ft. AMH - Downstream Manhole, Survey Ends - 01 0526A

Observation photos (2)

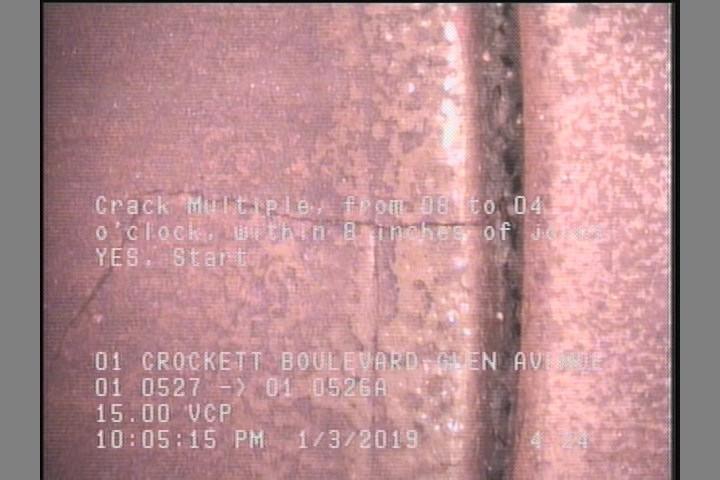

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

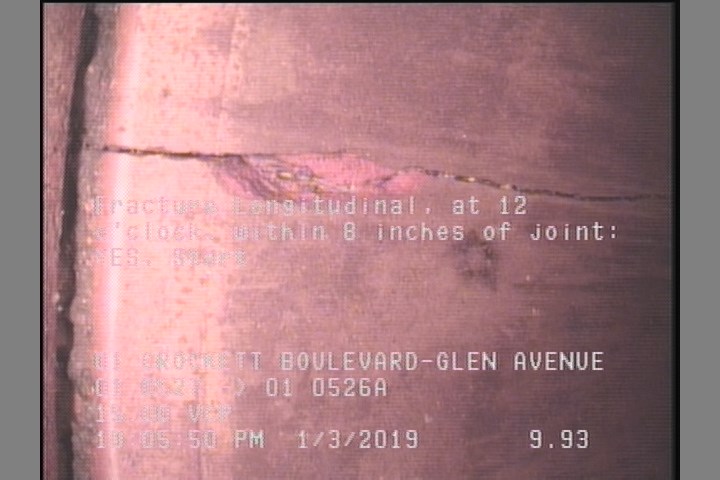

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    9.9 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P01013Work order 740024

Observations (16)

DistanceCodeObservation
4.2CM—
0MWL—
212.6MGOCONNECTION AT MH 3 O'CLOCK
129TFC—
80.8TFC—
0MWM—
0AMH01 0527
78.1TFC—
181.8TFC—
51.9FL—
131.5TFC—
211.3CM—
9.9FL—
179.1TFC—
0MGOCONNECTION AT MH 6 O'CLOCK
212.6AMH01 0526A

Properties (5)

additional_info
SC365497
custom_field_two
3
customer
LACSD
datetime
2019-01-03T22:02:21-08:00
is_lateral_inspection
false
