Wastewater/Activity/PacpInspection/1.0Jan 11, 2019, 09:12 AM
B 0414_B 0413 _01112019_012931.mp4
- Date
- 01/11/2019
- W/O
- 740017
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00092
- PipeID
- P08926
- Time
- 1:12 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6302
- Sewer Name
- B JOINT OUTFALL B - UNIT 5B
- City
- PASADENA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740017_TV15187_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- B 0414
- Downstream MH
- B 0413
- Dir. of Survey
- Downstream
- Length Surveyed
- 366.6 ft.
- Total Length
- 366.6 ft.
- Structural Index
- 3
- Structural Quick
- 3M00
- Structural Rating
- 213
- O&M Index
- 2
- O&M Quick
- 2N11
- O&M Rating
- 147
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 360
Observation photos (3)

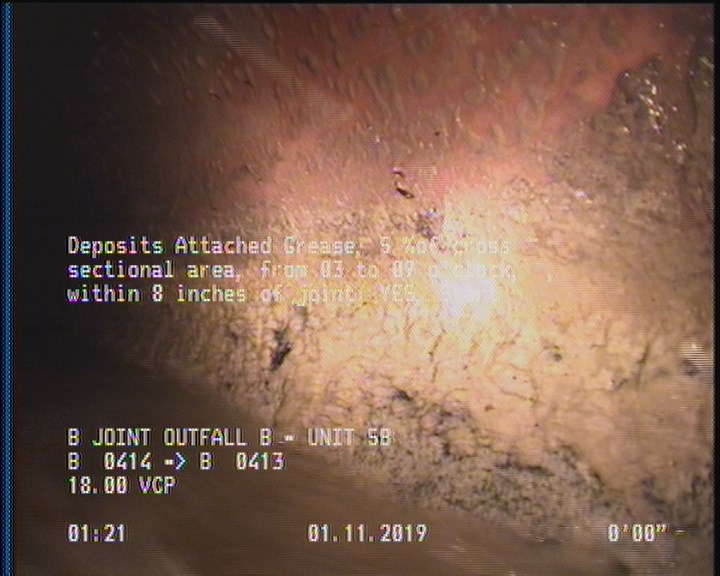

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

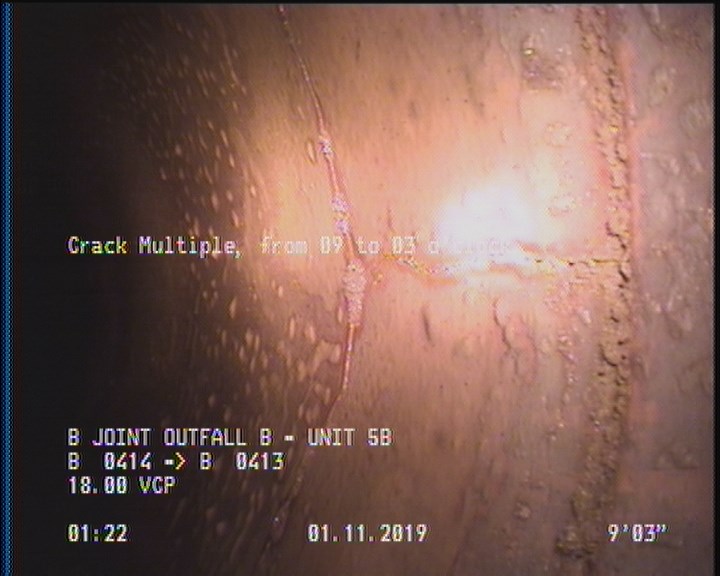

9.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

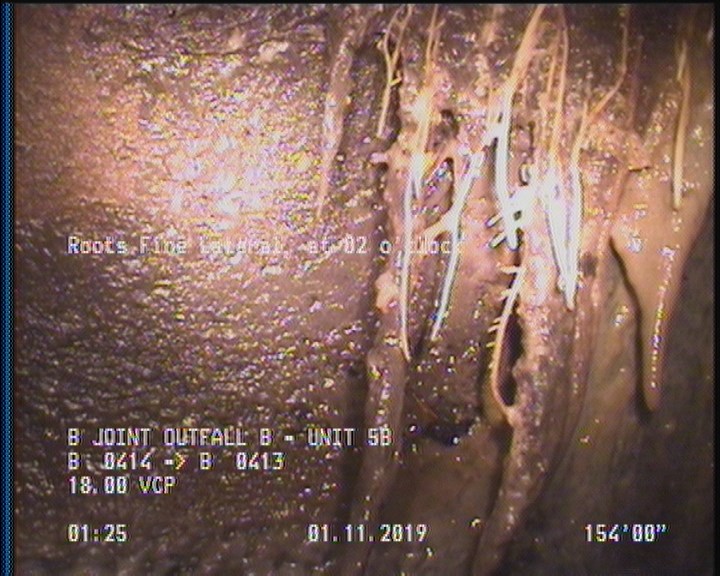

154 ft. - Roots Fine Lateral, at 02 o'clock
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 224.5 | TFA | — |
| 9.3 | CM | — |
| 366.6 | AMH | B 0413 |
| 355.4 | TFA | — |
| 365.1 | CM | — |
| 2 | DAGS | — |
| 0 | AMH | B 0414 |
| 365.1 | DAGS | — |
| 154 | RFL | — |
| 153.9 | TFA | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 103.1 | TFA | — |
Properties (5)
- additional_info
- SC365668
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-01-11T01:12:01-08:00
- is_lateral_inspection
- false
