Wastewater/Activity/PacpInspection/1.0Jan 2, 2019, 10:44 AM
B 0433_B 0432 _01022019_025523.mp4
- Date
- 01/02/2019
- W/O
- 740017
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00092
- PipeID
- P08945
- Time
- 2:44 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6287
- Sewer Name
- B JOINT OUTFALL B - UNIT 5B
- City
- PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740017_TV15187_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- B 0433
- Downstream MH
- B 0432
- Dir. of Survey
- Downstream
- Length Surveyed
- 240.9 ft.
- Total Length
- 240.9 ft.
- Structural Index
- 3
- Structural Quick
- 3H00
- Structural Rating
- 132
- O&M Index
- 2
- O&M Quick
- 2I00
- O&M Rating
- 96
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 228
Observation photos (2)

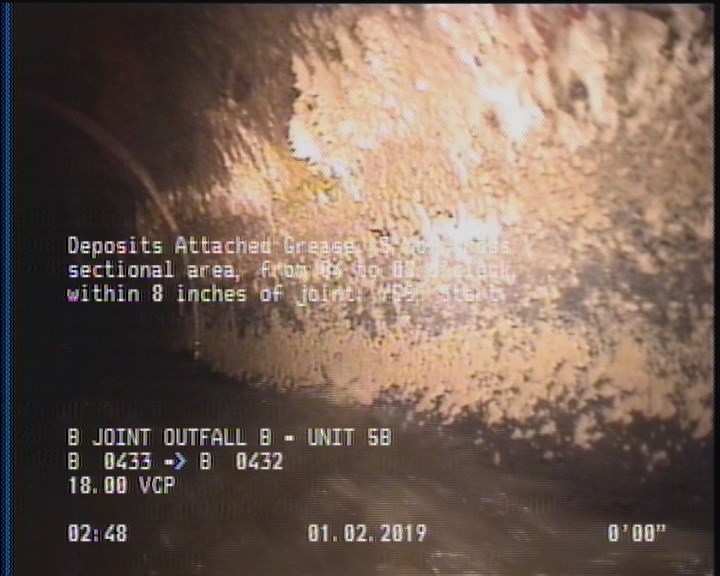

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

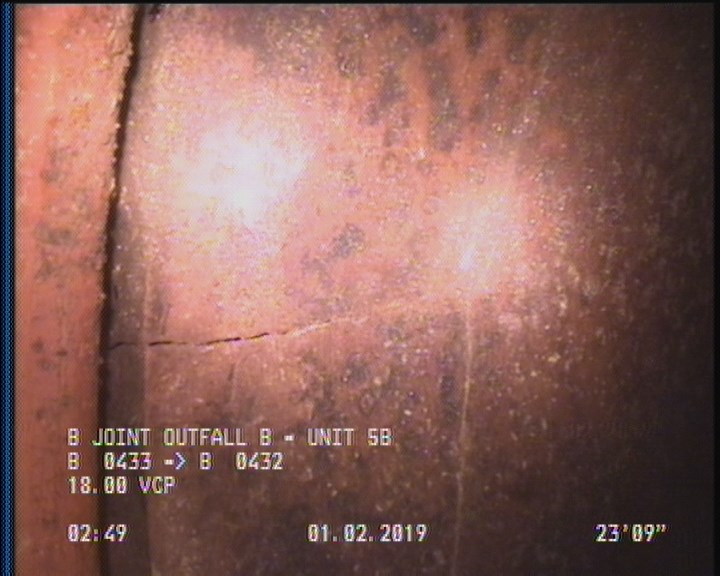

20 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 240.9 | DAGS | — |
| 106.1 | TBA | — |
| 20 | CM | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 240.9 | CM | — |
| 154.2 | TFC | — |
| 240.9 | AMH | B 0432 |
| 0 | AMH | B 0433 |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 97.8 | TFA | — |
| 0 | MWL | — |
| 192.1 | TFC | — |
Properties (5)
- additional_info
- SC365653
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-01-02T02:44:45-08:00
- is_lateral_inspection
- false
