Wastewater/Activity/PacpInspection/1.0Jan 2, 2019, 11:31 AM
B 0410_B 0409 _01022019_034449.mp4
- Date
- 01/02/2019
- W/O
- 740017
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00092
- PipeID
- P08922
- Time
- 3:31 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6287
- Sewer Name
- B JOINT OUTFALL B - UNIT 5B
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740017_TV15187_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- B 0410
- Downstream MH
- B 0409
- Dir. of Survey
- Downstream
- Length Surveyed
- 386.6 ft.
- Total Length
- 386.6 ft.
- Structural Index
- 3
- Structural Quick
- 3M00
- Structural Rating
- 207
- O&M Index
- 2
- O&M Quick
- 412N
- O&M Rating
- 158
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 365
Observation photos (3)

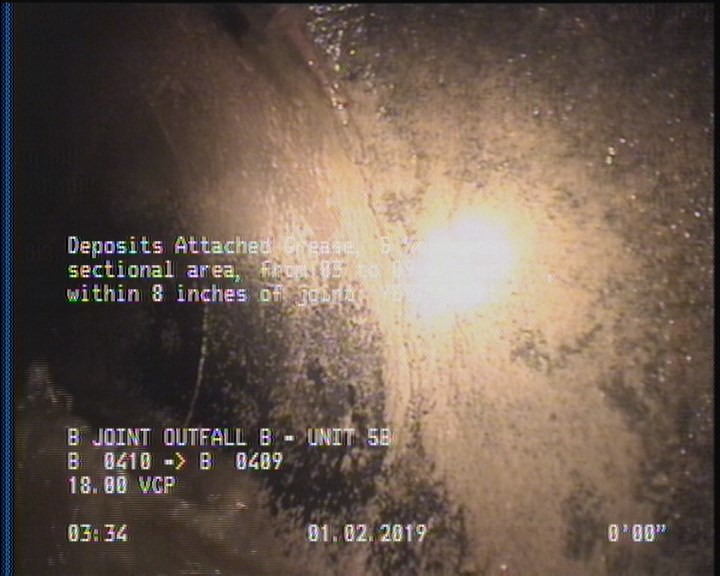

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

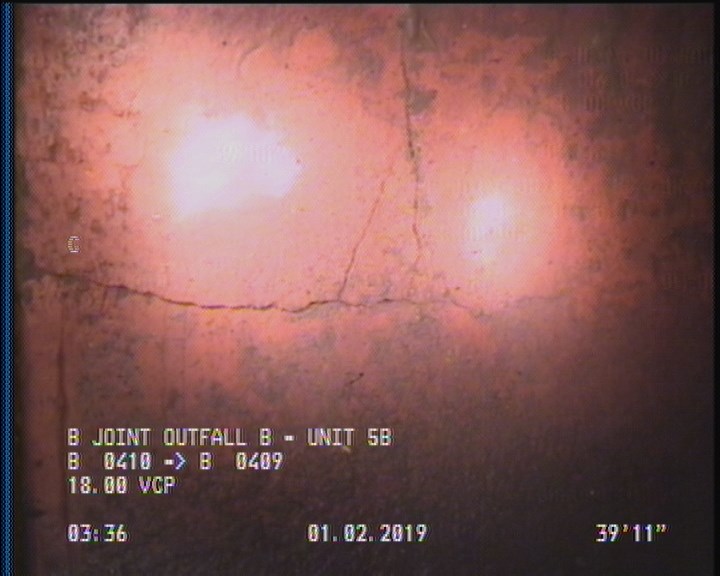

39.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

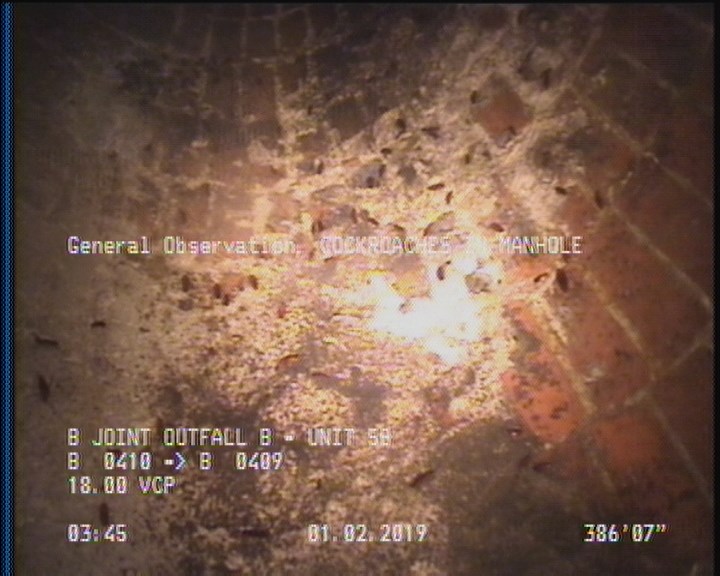

386.6 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 22.3 | TFA | — |
| 0 | MWL | — |
| 253.7 | TF | — |
| 39.9 | CM | — |
| 145.7 | TFA | — |
| 184.7 | TF | — |
| 0 | AMH | B 0410 |
| 264.1 | TFC | — |
| 386.6 | MGO | COCKROACHES IN MANHOLE |
| 385 | DAGS | — |
| 110.2 | TFC | — |
| 386.6 | AMH | B 0409 |
| 328.1 | TF | — |
| 0 | MWM | — |
| 2 | DAGS | — |
| 385 | CM | — |
Properties (5)
- additional_info
- SC365653
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-01-02T03:31:51-08:00
- is_lateral_inspection
- false
