Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 2, 2019, 09:42 AM

  • B 0432_B 0431 _01022019_020704.mp4

Date
01/02/2019
W/O
740017
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00092
PipeID
P08944
Time
1:42 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6287
Sewer Name
B JOINT OUTFALL B - UNIT 5B
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
03
Purpose
Routine Assessment
Project
RFIR_WO_740017_TV15187_DEC2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
B 0432
Downstream MH
B 0431
Dir. of Survey
Downstream
Length Surveyed
418.2 ft.
Total Length
418.2 ft.
Structural Index
3
Structural Quick
3O2O
Structural Rating
405
O&M Index
2
O&M Quick
2P00
O&M Rating
166
Overall Index
2
Overall Quick
—
Overall Rating
571
Pipe schematic from manhole B 0432 to B 0431
MH: B 0432MH: B 0431downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - B 04320 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start10.7 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start10.7 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start83.4 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"89.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"150.2 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"416.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish416.5 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish416.5 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish418.2 ft. AMH - Downstream Manhole, Survey Ends - B 0431418.2 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (5)

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    10.7 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

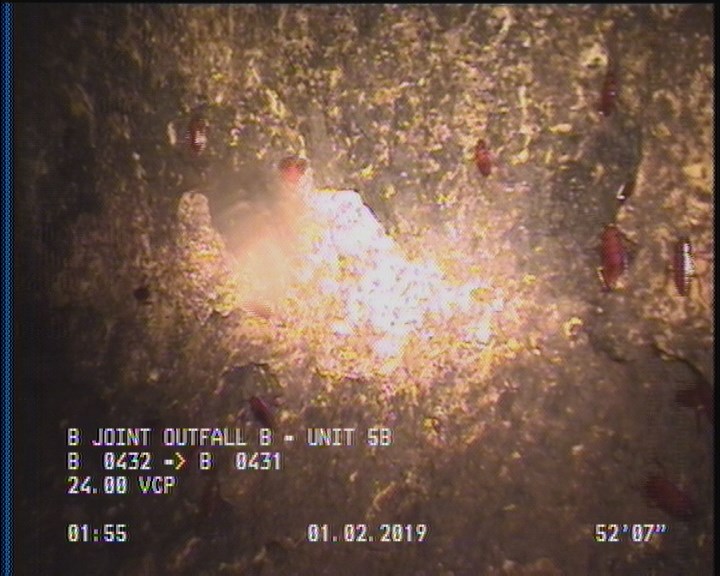

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    10.7 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • General Observation - COCKROACHES IN MANHOLE

    418.2 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P08944Work order 740017

Observations (16)

DistanceCodeObservation
0MGOCOCKROACHES IN MANHOLE
83.4TBA—
0MGOCONNECTION AT MH 3 O'CLOCK
416.5DAGS—
0AMHB 0432
0MWM—
416.5SAP—
150.2TBA—
2DAGS—
418.2AMHB 0431
10.7SAP—
0MWL—
89.5TFA—
416.5SSS—
10.7SSS—
418.2MGOCOCKROACHES IN MANHOLE

Properties (5)

additional_info
SC365653
custom_field_two
2
customer
LACSD
datetime
2019-01-02T01:42:12-08:00
is_lateral_inspection
false
