Wastewater/Activity/PacpInspection/1.0Mar 26, 2019, 07:04 AM
29 0346_29 0345 _03262019_001642.mp4
- Date
- 03/26/2019
- W/O
- 755793
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z01017
- PipeID
- P24366
- Time
- 12:04 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6494
- Sewer Name
- 29 PACIFIC COAST HIGHWAY SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- RFIR_WO_755793_TV29085_MAR2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0346
- Downstream MH
- 29 0345
- Dir. of Survey
- Downstream
- Length Surveyed
- 153.7 ft.
- Total Length
- 153.7 ft.
- Structural Index
- 3
- Structural Quick
- 5131
- Structural Rating
- 10
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

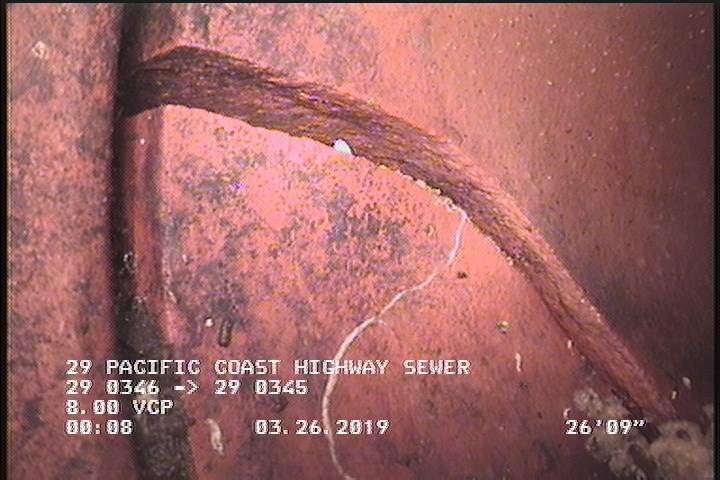

26.7 ft. - Broken, from 05 to 10 o'clock, within 8 inches of joint: YES

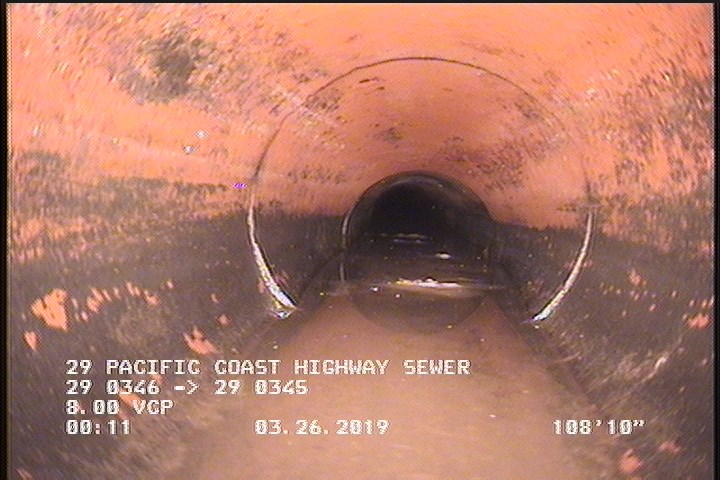

108.7 ft. - Water Level, Sag in pipe, 50 %of cross sectional area, Start

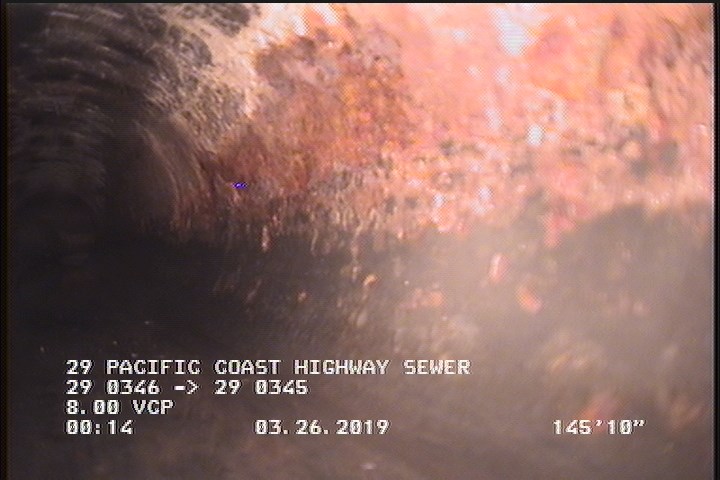

145.7 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 26.7 | B | — |
| 152.1 | SSS | — |
| 0 | MWL | — |
| 149 | MWLS | — |
| 0 | AMH | 29 0346 |
| 0 | MWM | — |
| 153.7 | AMH | 29 0345 |
| 145.7 | SSS | — |
| 108.7 | MWLS | — |
Properties (4)
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2019-03-26T00:04:31-07:00
- is_lateral_inspection
- false
