Wastewater/Activity/PacpInspection/1.0Mar 26, 2019, 08:00 AM
29 0356_29 0355 _03262019_011825.mp4
- Date
- 03/26/2019
- W/O
- 755793
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z01017
- PipeID
- P24376
- Time
- 1:00 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6494
- Sewer Name
- 29 PACIFIC COAST HIGHWAY SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- RFIR_WO_755793_TV29085_MAR2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0356
- Downstream MH
- 29 0355
- Dir. of Survey
- Downstream
- Length Surveyed
- 318.8 ft.
- Total Length
- 318.8 ft.
- Structural Index
- 4
- Structural Quick
- 5121
- Structural Rating
- 7
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

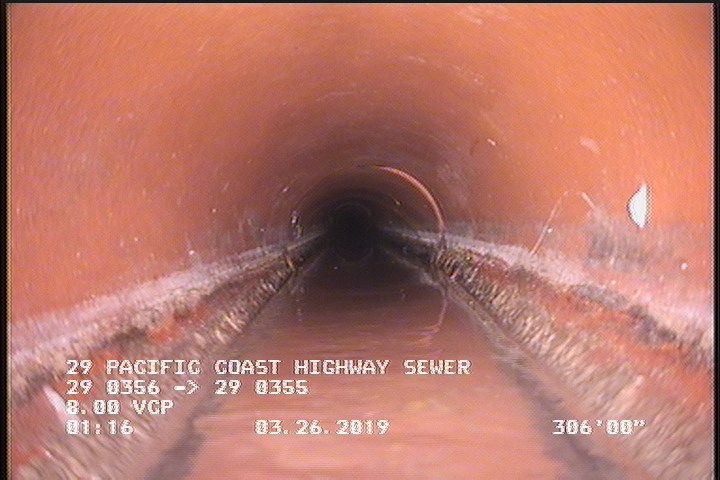

305.8 ft. - Water Level, Sag in pipe, 30 %of cross sectional area, Start

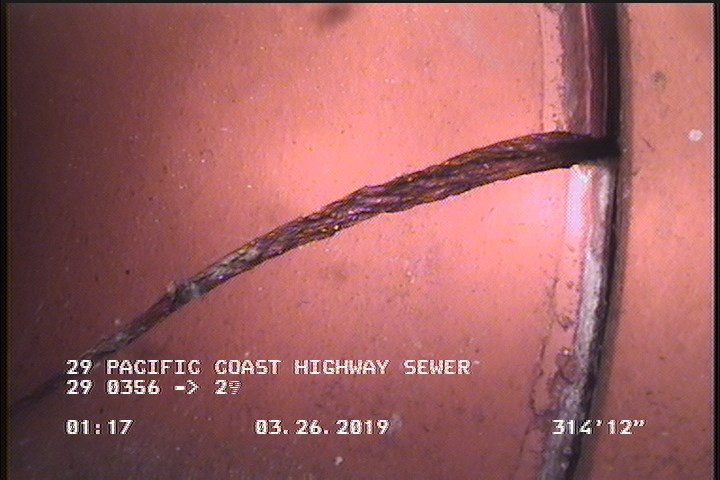

314.8 ft. - Broken, from 03 to 08 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 174.1 | TFA | — |
| 0 | MWL | — |
| 208.4 | TBA | — |
| 287.7 | TBA | — |
| 314.8 | B | — |
| 0 | MWM | — |
| 0 | AMH | 29 0356 |
| 305.8 | MWLS | — |
| 238.7 | TBA | — |
| 316.3 | MWLS | — |
| 318.8 | AMH | 29 0355 |
Properties (4)
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2019-03-26T01:00:42-07:00
- is_lateral_inspection
- false
