Wastewater/Activity/PacpInspection/1.0May 14, 2019, 05:00 PM
19 0010_C 0323_5142019_100624.mp4
- Date
- 05/14/2019
- W/O
- 0664155
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00958
- PipeID
- P21189
- Time
- 10:00 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7978
- Sewer Name
- A JOA-1A LONG BEACH WRP INFLUENT SWR
- City
- LONG BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- 20190514DF_JOA_1A_LONG_BEACH_WRP_INFLUENT_SEWER
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 19 0010
- Downstream MH
- C 0323
- Dir. of Survey
- Downstream
- Length Surveyed
- 294 ft.
- Total Length
- 294 ft.
- Structural Index
- 2
- Structural Quick
- 3121
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (5)

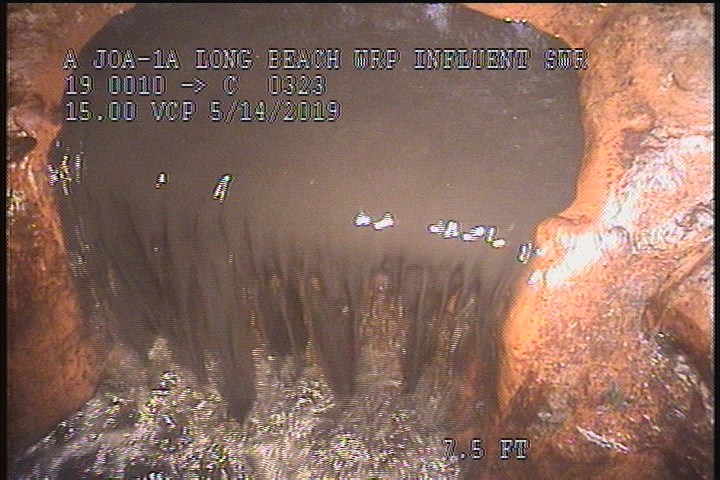

0.3 ft. - Water Level, 15 %of cross sectional area

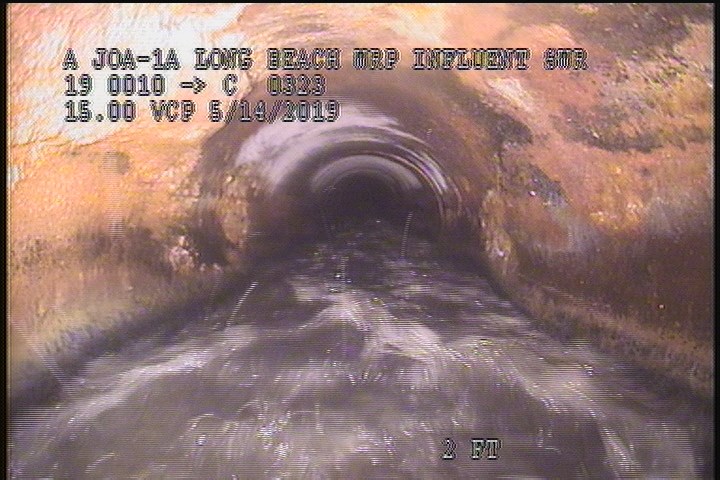

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

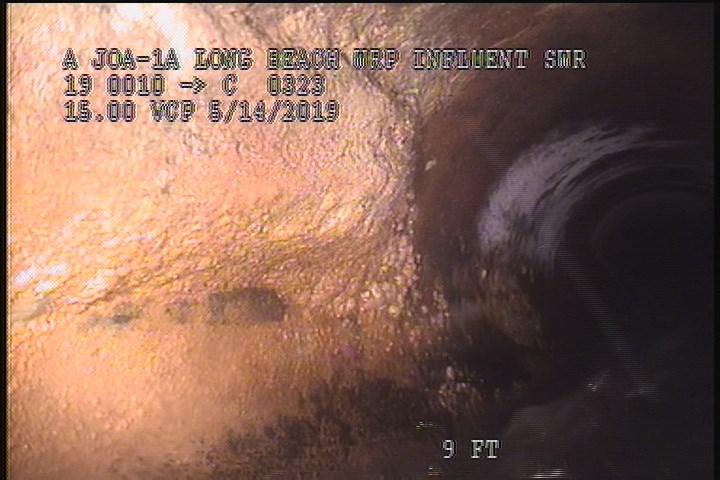

9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

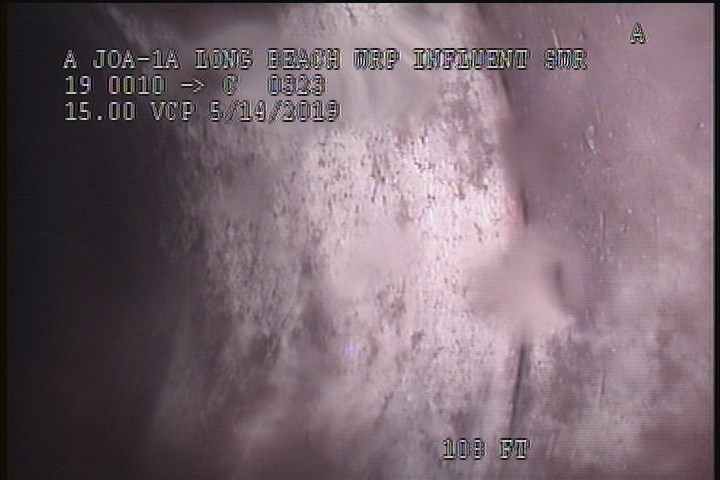

108 ft. - General Photograph

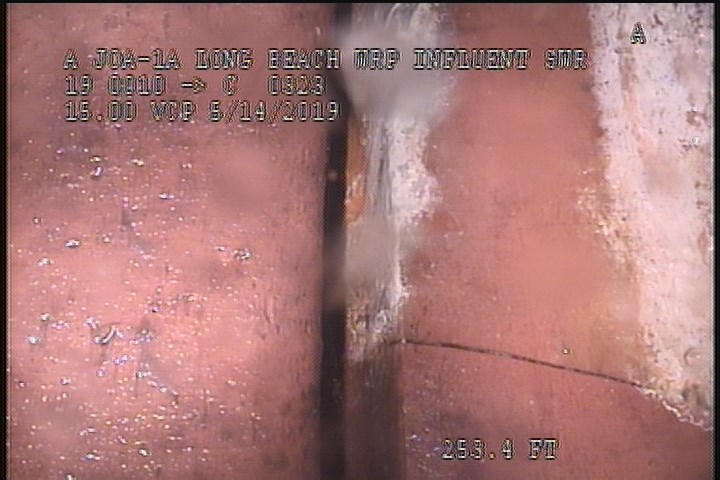

253.4 ft. - Crack Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 265.6 | CM | — |
| 0 | AMH | 10:03 AM |
| 0.3 | MWL | — |
| 294 | MSA | HIGH WATER |
| 294 | SSS | — |
| 2 | SSS | — |
| 108 | MGP | — |
| 253.4 | CC | — |
| 9 | DAGS | — |
| 0.6 | MWM | — |
| 294 | CM | — |
| 294 | DAGS | — |
Properties (5)
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-05-14T10:00:47-07:00
- documentation
- FRANKLIN, CASTILLO, BRAR
- is_lateral_inspection
- false
