Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 3, 2019, 08:37 AM

  • H JOINT_H 0611_532019_022704.mp4

Date
05/03/2019
W/O
0769645
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00190
PipeID
P21860
Time
1:37 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1195
Sewer Name
H JOINT OUTFALL H - UNIT 8G
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
24
Purpose
Routine Assessment
Project
20190503MDM_JOINT_OUTFALL_H_UNIT_8G
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
H JOINT
Downstream MH
H 0611
Dir. of Survey
Downstream
Length Surveyed
6.5 ft.
Total Length
6.5 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole H JOINT to H 0611
MH: H JOINTMH: H 0611downstream0 ft. AMH - Upstream Manhole, Survey Begins - 2:30AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - MAG COAT 90% START2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC5.7 ft. SAV - Surface Aggregate Visible, from 09 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETEW6 ft. MGO - General Observation - V NOTCH IN MH6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG SPORATIC6 ft. MGO - General Observation - 90% MAG COAT FINISH6.5 ft. AMH - Downstream Manhole, Survey Ends - 2:35AM

Observation photos (5)

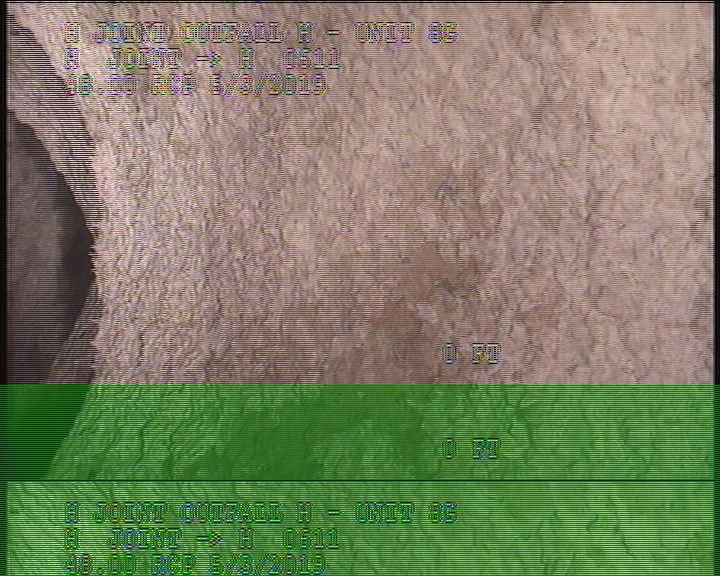

  • General Observation - MAG COAT 90% START

    0 ft. - General Observation - MAG COAT 90% START

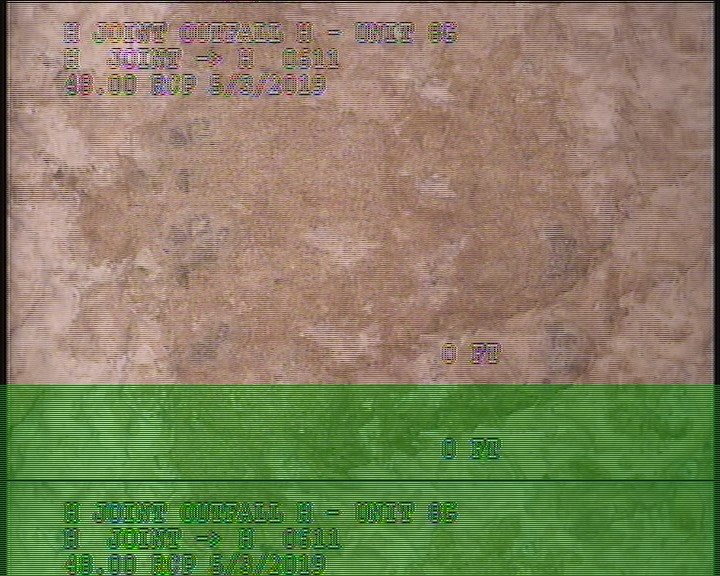

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

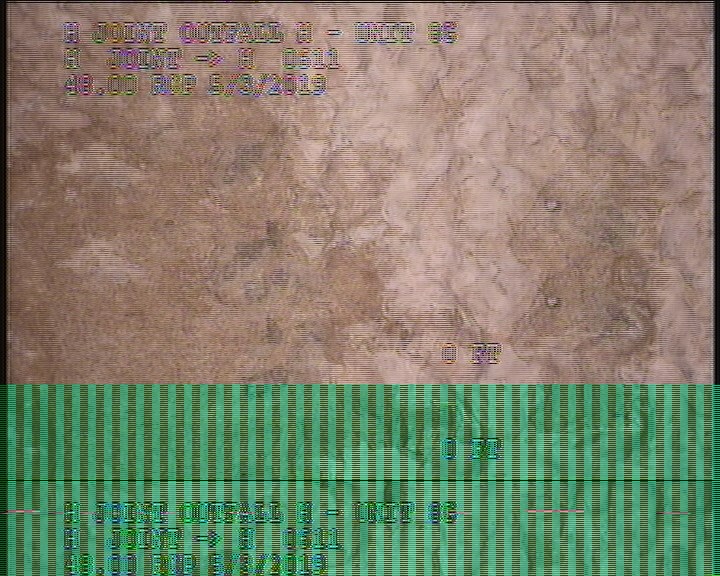

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC

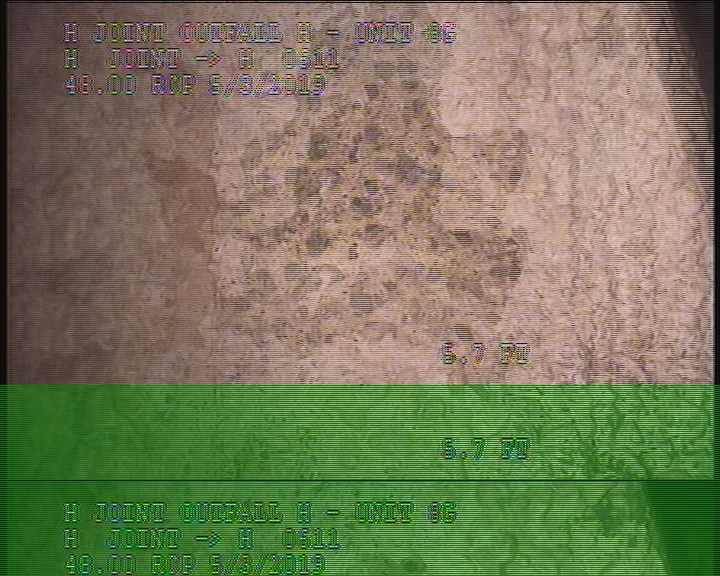

  • Surface Aggregate Visible, from 09 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG

    5.7 ft. - Surface Aggregate Visible, from 09 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG

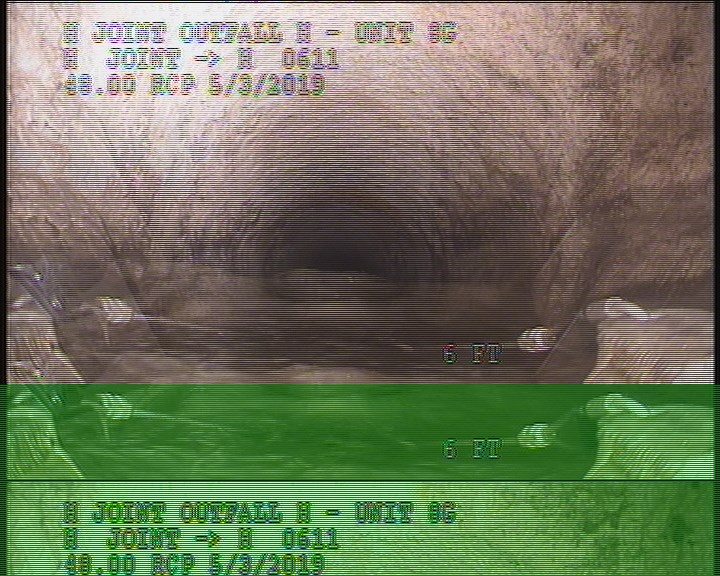

  • General Observation - V NOTCH IN MH

    6 ft. - General Observation - V NOTCH IN MH

All inspections of P21860Work order 0769645

Observations (12)

DistanceCodeObservation
0AMH2:30AM
2SSSBLISTERING PEELING CONCRETE
6SSSBLISTERING PEELING CONCRETEW
0MWM—
2SAVSEVERE AGG SPORATIC
0MWL—
6MGOV NOTCH IN MH
6SAVSEVERE AGG SPORATIC
5.7SAVSEVERE AGG
6MGO90% MAG COAT FINISH
6.5AMH2:35AM
0MGOMAG COAT 90% START

Properties (6)

custom_field_three
SEVERE AGG SPORATIC - 90% MAG COAT
custom_field_two
4
customer
LACSD
datetime
2019-05-03T01:37:27-07:00
documentation
MARTIN,REVELES,OLIVER 111,RUVALCABA
is_lateral_inspection
false
