Wastewater/Activity/PacpInspection/1.0Mar 8, 2019, 01:12 PM
03 0474_C 0511_382019_051537.mp4
- Date
- 03/08/2019
- W/O
- 0745398
- Weather
- Light Rain
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00401
- PipeID
- P21638
- Time
- 5:12 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7936
- Sewer Name
- 03 PUMP DISTRICT #5 CONNECTION TRUNK
- City
- LONG BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 22
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190308DF_PUMP_DISTRICT_5_CONNECTION_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 03 0474
- Downstream MH
- C 0511
- Dir. of Survey
- Downstream
- Length Surveyed
- 22.6 ft.
- Total Length
- 22.6 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (4)
0 ft. - Upstream Manhole, Survey Begins - 5:13 AM

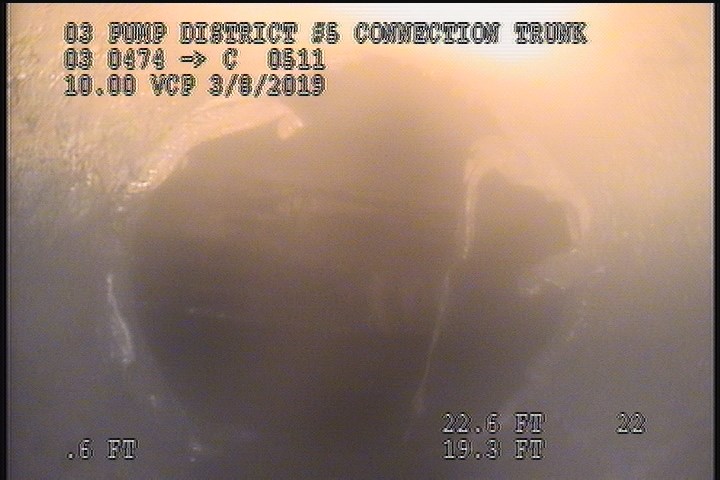

0 ft. - Water Level, 10 %of cross sectional area
2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

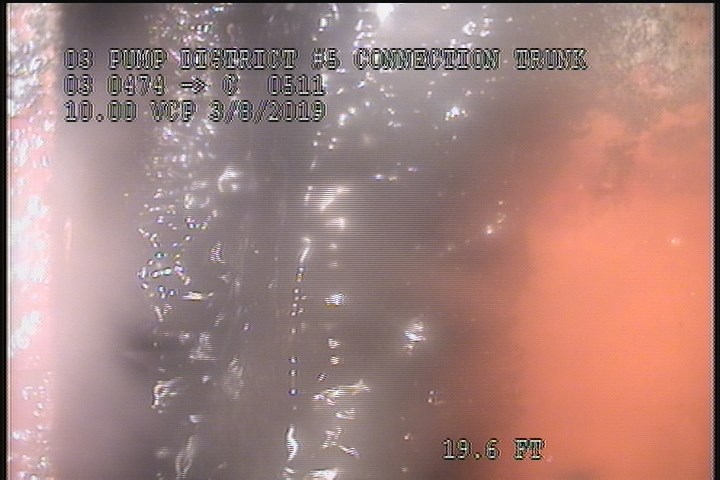

19.6 ft. - Infiltration Runner, at 12 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 22.1 | SSS | — |
| 0 | MWM | — |
| 21.8 | SSS | — |
| 20.1 | DAGS | — |
| 19.6 | IR | — |
| 2 | SSS | — |
| 0 | AMH | 5:13 AM |
| 0 | MWL | — |
| 2 | DAGS | — |
| 22.6 | AMH | 5:28 AM |
| 2 | SSS | — |
Properties (5)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-03-08T05:12:04-08:00
- documentation
- FRANKLIN, IGNACIO, RAMIREZ, RUVALCABA
- is_lateral_inspection
- false
