Wastewater/Activity/PacpInspection/1.0Mar 7, 2019, 08:58 AM
J 0395_J 0243_372019_031125.mp4
- Date
- 03/07/2019
- W/O
- 0756080
- Weather
- Light Rain
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00057
- PipeID
- P21087
- Time
- 12:58 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1139
- Sewer Name
- J JOINT OUTFALL J - UNIT 1E
- City
- PALO VERDES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 46
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190307MDM_JOINT_OUTFALL_J_UNIT_1E
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- J 0395
- Downstream MH
- J 0243
- Dir. of Survey
- Downstream
- Length Surveyed
- 8.4 ft.
- Total Length
- 8.5 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

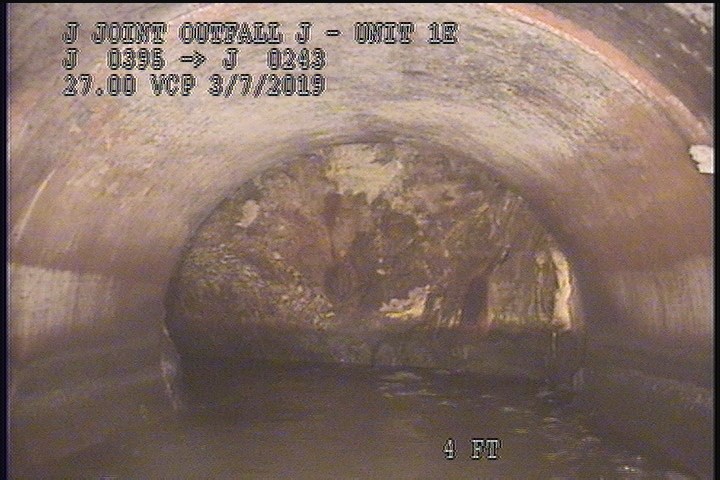

4 ft. - General Observation - 27" VCP

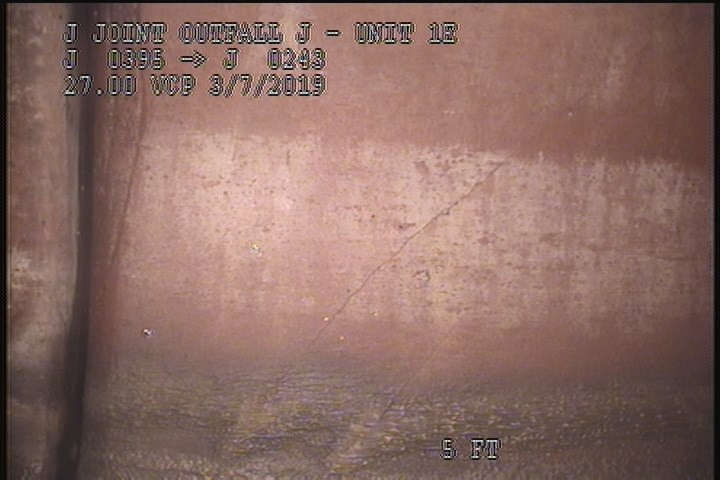

5 ft. - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - HAIRLINE
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 8.5 | AMH | 3:00AM |
| 4 | MGO | 27" VCP |
| 0 | MWM | — |
| 0 | AMH | 2:55AM |
| 0 | MWL | — |
| 5 | FC | HAIRLINE |
| 8 | MGO | Conn. @ Mh, 3 O' Clock. OPEN |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-03-07T00:58:50-08:00
- documentation
- MARTIN,OLIVER 111,CASTILLO
- is_lateral_inspection
- false
