Wastewater/Activity/PacpInspection/1.0Mar 5, 2019, 12:24 PM
30 0059_30 0058_352019_042559.mp4
- Date
- 03/05/2019
- W/O
- 0759065
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00878
- PipeID
- P17762
- Time
- 4:24 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1137
- Sewer Name
- 30 SOUTH BAY CITIES MAIN TRUNK
- City
- REDONDO BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 05
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190305MDM_SOUTH_BAY_CITIES_MAIN_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 30 0059
- Downstream MH
- 30 0058
- Dir. of Survey
- Downstream
- Length Surveyed
- 298.8 ft.
- Total Length
- 298.8 ft.
- Structural Index
- 4
- Structural Quick
- 4300
- Structural Rating
- 12
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (6)

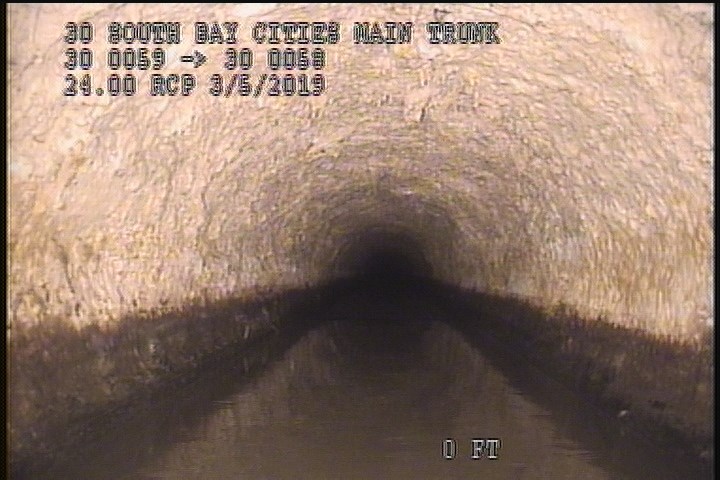

2 ft. - General Observation - 98% MAG COAT START

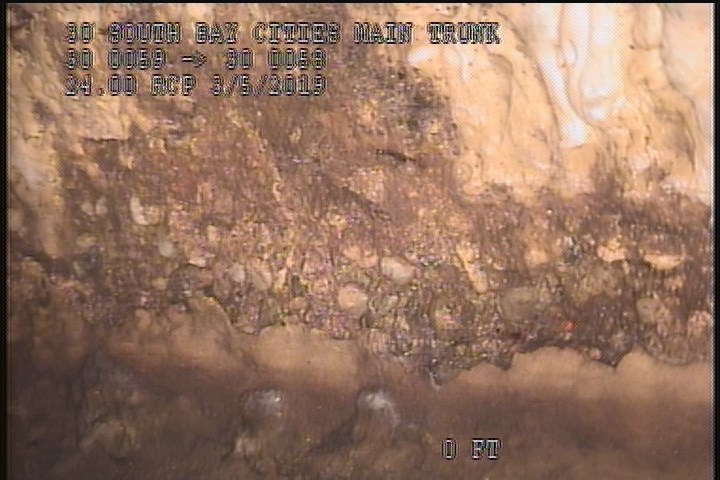

2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG UNDER MAG COAT

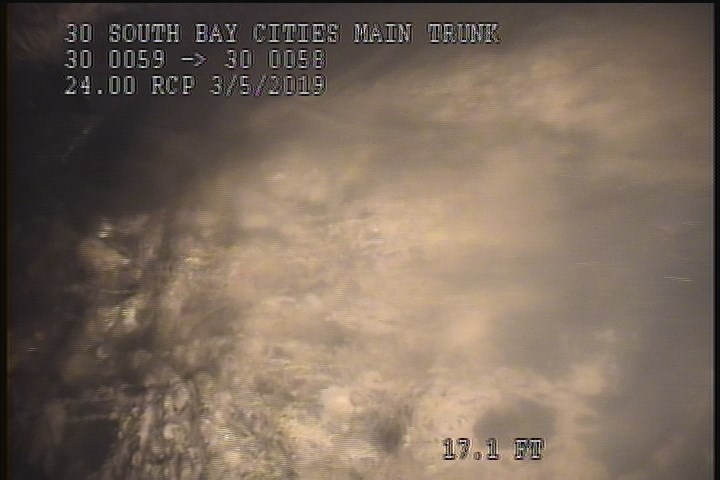

17.1 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - R0CKS SLUDGE

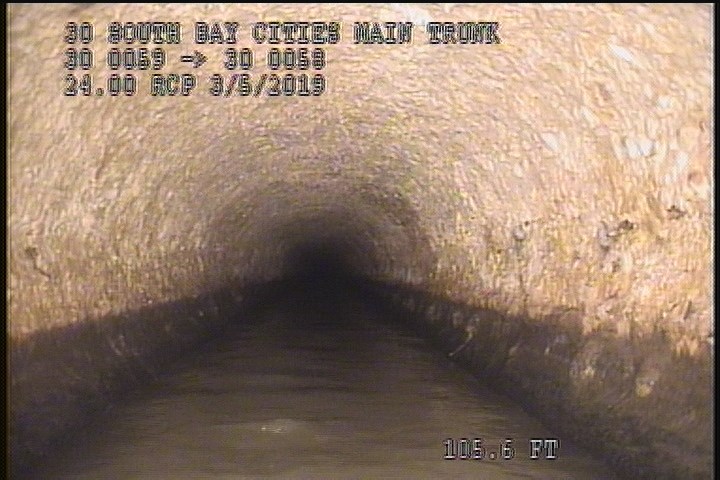

105.6 ft. - General Observation - 99% MAG COAT

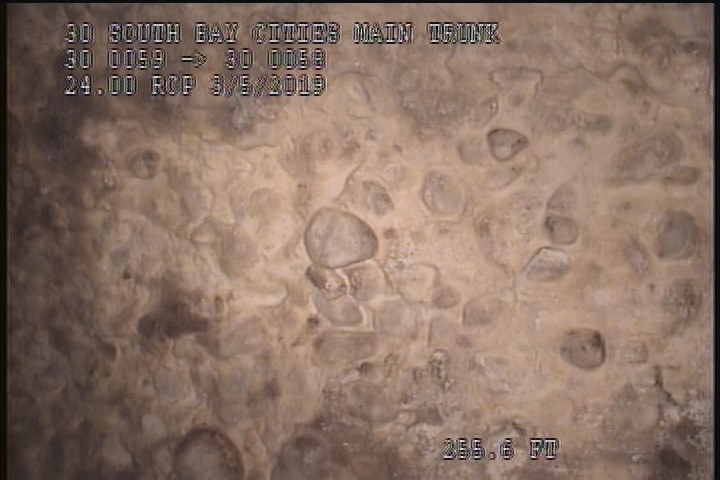

255.6 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG UNDER MAG COAT

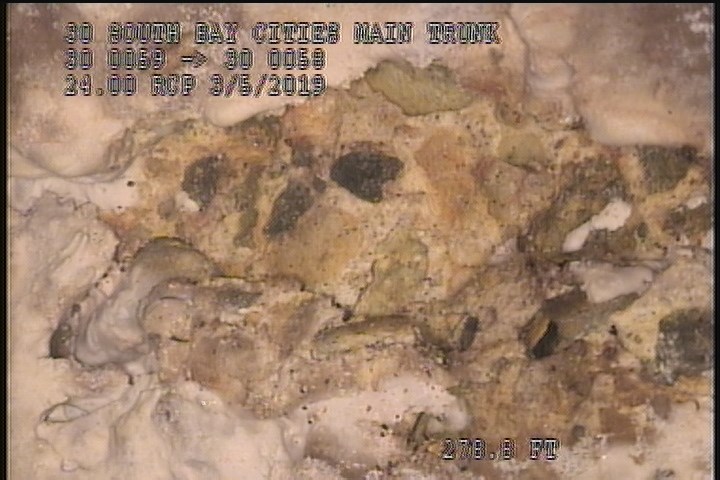

278.8 ft. - Surface Aggregate Missing, from 01 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 43.1 | TF | Open |
| 0 | AMH | 4:25AM |
| 298.8 | AMH | 4:45AM |
| 298.1 | MGO | 99% MAG COAT FINISH |
| 298.1 | SAM | SEVERE AGG UNDER MAG COAT |
| 105.6 | MGO | 99% MAG COAT |
| 278.8 | SAM | SEVERE AGG |
| 17.1 | DSZ | R0CKS SLUDGE |
| 0 | MWM | — |
| 2 | MGO | 98% MAG COAT START |
| 0 | MWL | — |
| 255.6 | SAM | SEVERE AGG UNDER MAG COAT |
| 2 | SAM | SEVERE AGG UNDER MAG COAT |
| 35.6 | DSZ | ROCKS |
| 298.1 | DSZ | R0CKS SLUDGE |
Properties (6)
- custom_field_three
- 99% MAG COAT-SEVERE AGG MISSING
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-03-05T04:24:50-08:00
- documentation
- MARTIN,REVELES,OLIVER 111,CASTILLO
- is_lateral_inspection
- false
