Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 5, 2019, 09:12 AM

  • 30 0087_30 0086_352019_012436.mp4

Date
03/05/2019
W/O
0759065
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00878
PipeID
P17795
Time
1:12 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1137
Sewer Name
30 SOUTH BAY CITIES MAIN TRUNK
City
REDONDO BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
05
Purpose
Capital Improvement Program Assesment
Project
20190305MDM_SOUTH_BAY_CITIES_MAIN_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
30 0087
Downstream MH
30 0086
Dir. of Survey
Downstream
Length Surveyed
209.8 ft.
Total Length
209.8 ft.
Structural Index
2
Structural Quick
4235
Structural Rating
65
O&M Index
2
O&M Quick
3122
O&M Rating
7
Overall Index
2
Overall Quick
—
Overall Rating
72
Pipe schematic from manhole 30 0087 to 30 0086
MH: 30 0087MH: 30 0086downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:20AM8 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT8 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - HAIRLINE12.9 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - H16.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - H19.4 ft. FM - Fracture Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES - SL22.6 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SL22.6 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL25.6 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - ROCKS SLUDGE28.6 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - H28.6 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - H31.7 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H35.2 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H37.8 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H37.8 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H40.8 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL44 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - H44 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - H47.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H50.3 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H50.3 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL53.5 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - H56.8 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H56.8 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H63.2 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H65.9 ft. FC - Fracture Circumferential, from 10 to 03 o'clock, within 8 inches of joint: YES - SL72.1 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS72.1 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS72.1 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS72.1 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS75.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start94.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open135.1 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 6" - Open175.9 ft. MGP - General Photograph202.3 ft. RMJ - Roots Medium Joint, from 08 to 10 o'clock, 5 %, within 8 inches of joint: YESR209.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 30% SLIGHT AT JOINTS209.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish209.2 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish - ROCKS SLUDGE209.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 60% SLIGHT AT JOINTS209.2 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 10% SLIGHT AT JOINTS209.2 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 20% HAIRLINE AT JOINTS209.8 ft. AMH - Downstream Manhole, Survey Ends - 2:00AM

Observation photos (4)

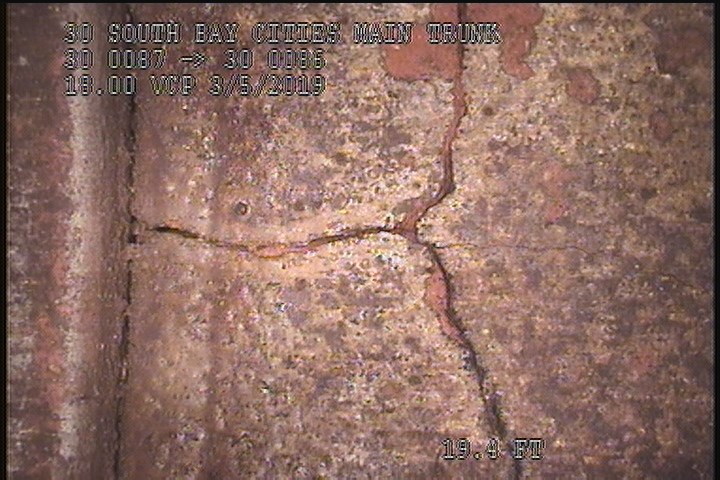

  • Fracture Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES - SL

    19.4 ft. - Fracture Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES - SL

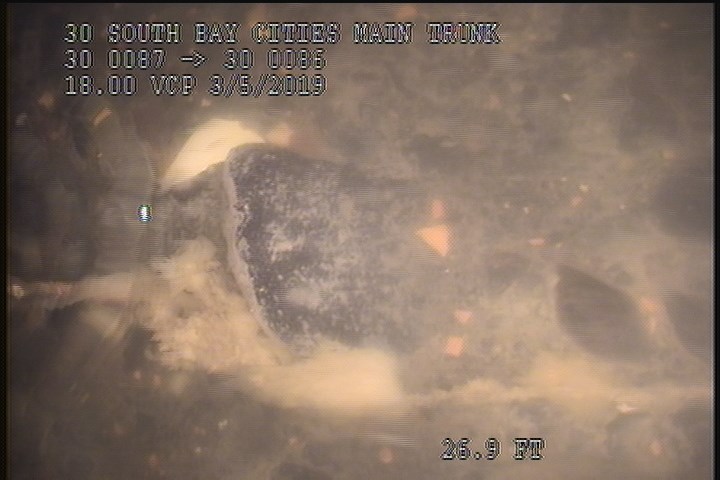

  • Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - ROCKS SLUDGE

    25.6 ft. - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - ROCKS SLUDGE

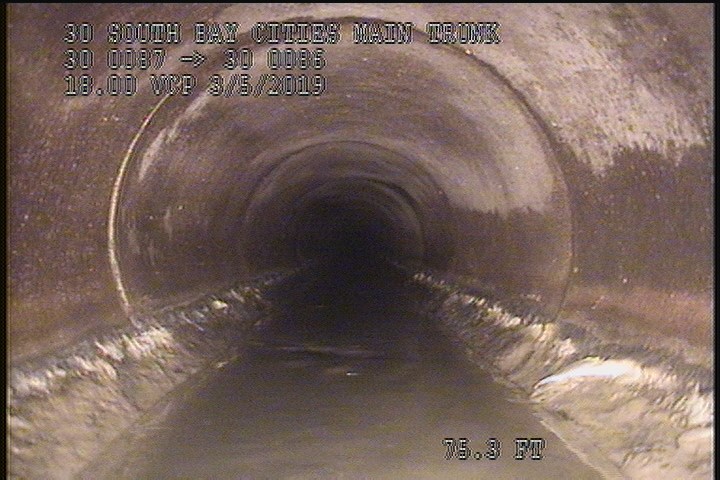

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    75.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

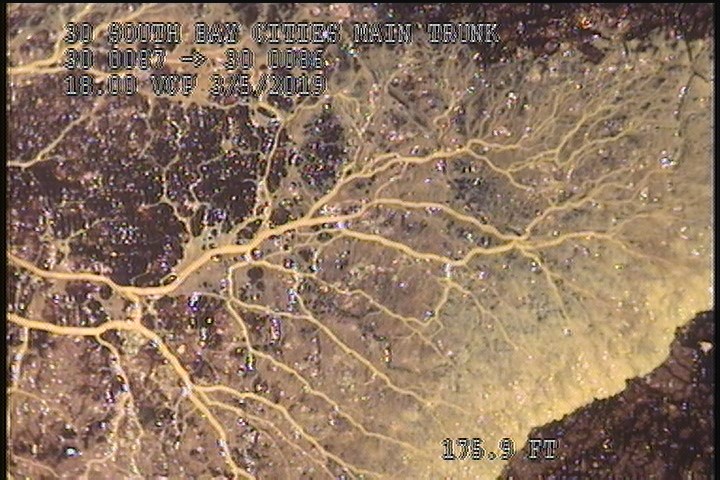

  • General Photograph

    175.9 ft. - General Photograph

All inspections of P17795Work order 0759065

Observations (44)

DistanceCodeObservation
28.6FCH
209.2FC30% SLIGHT AT JOINTS
72.1FCSLIGHT AT JOINTS
209.2DAGS—
28.6FCH
22.6FCSL
47.3FLH
50.3FCH
19.4FMSL
31.7FCH
72.1FLSLIGHT AT JOINTS
202.3RMJ—
209.2DSZROCKS SLUDGE
16.1FMH
35.2FCH
72.1FCHAIRLINE AT JOINTS
50.3FCSL
22.6FCSL
94.9TFOpen
44FCH
63.2FCH
175.9MGP—
72.1FLHAIRLINE AT JOINTS
75.3DAGS—
44FCH
209.2FC60% SLIGHT AT JOINTS
8FCSLIGHT
65.9FCSL
12.9FCH
56.8FCH
209.2FL10% SLIGHT AT JOINTS
0MWM—
209.8AMH2:00AM
56.8FLH
209.2FL20% HAIRLINE AT JOINTS
25.6DSZROCKS SLUDGE
135.1TFOpen
0MWL—
40.8FCSL
53.5FCH
0AMH1:20AM
37.8FCH
37.8FCH
8FLHAIRLINE

Properties (6)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2019-03-05T01:12:59-08:00
documentation
MARTIN,REVELES,OLIVER 111,CASTILLO
is_lateral_inspection
false
