Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 1, 2019, 01:05 PM

  • 02 0701_02 0700_312019_051113.mp4

Date
03/01/2019
W/O
0756474
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00311
PipeID
P03252
Time
5:05 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1124
Sewer Name
02 WOODRUFF AVENUE TRUNK
City
DOWNEY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
30
Purpose
Routine Assessment
Project
20190301MDM_WOODRUFF_AVENUE_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
02 0701
Downstream MH
02 0700
Dir. of Survey
Downstream
Length Surveyed
125.6 ft.
Total Length
125.6 ft.
Structural Index
3
Structural Quick
3222
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 02 0701 to 02 0700
MH: 02 0701MH: 02 0700downstream0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:10AM2 ft. MGO - General Observation - 80% MAG COAT START2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE2.6 ft. SAV - Surface Aggregate Visible, from 03 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC17.6 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC27 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG SPORATIC98.1 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO - PEELING CPNCRETE CONCRETE125 ft. MGO - General Observation - 80% MAG COAT FINISH125 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE125.6 ft. AMH - Downstream Manhole, Survey Ends - 5:30AM

Observation photos (5)

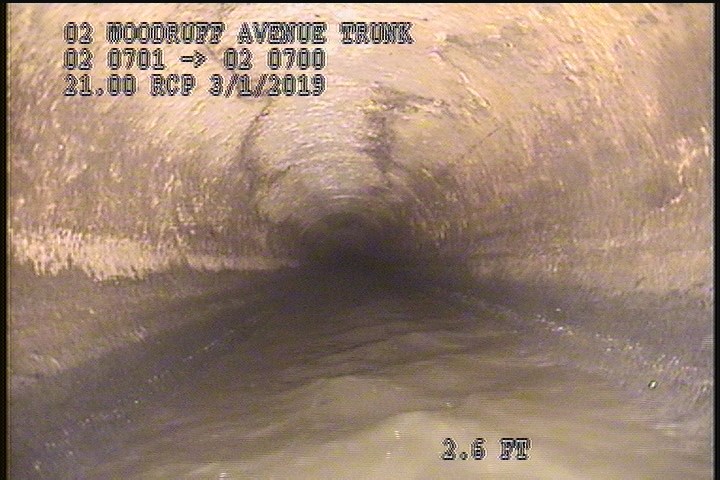

  • General Observation - 80% MAG COAT START

    2 ft. - General Observation - 80% MAG COAT START

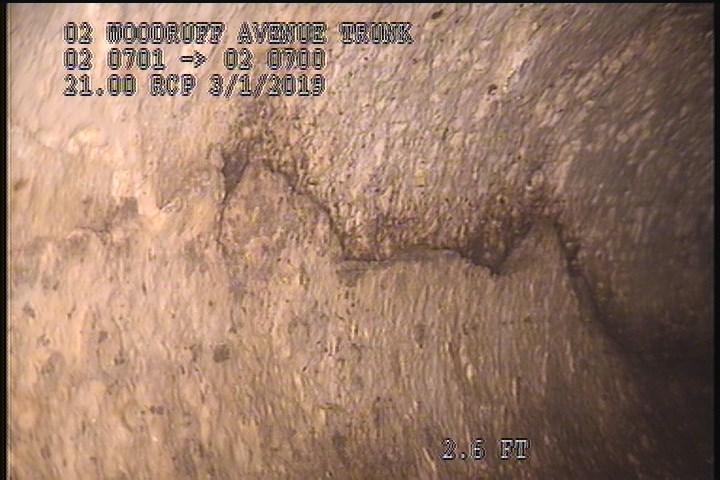

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

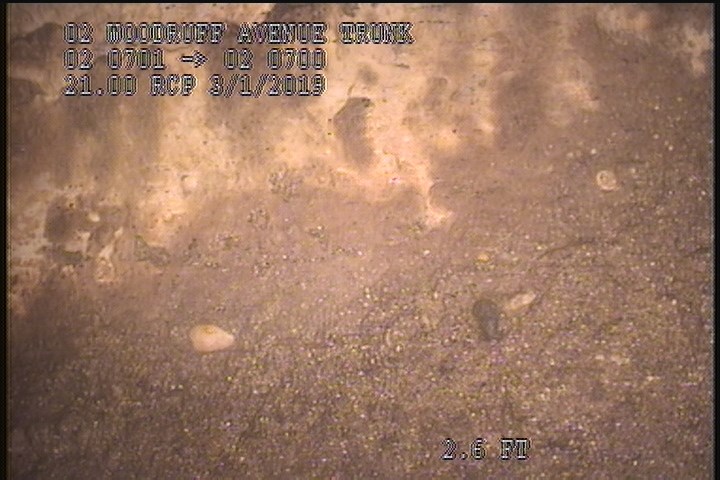

  • Surface Aggregate Visible, from 03 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

    2.6 ft. - Surface Aggregate Visible, from 03 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

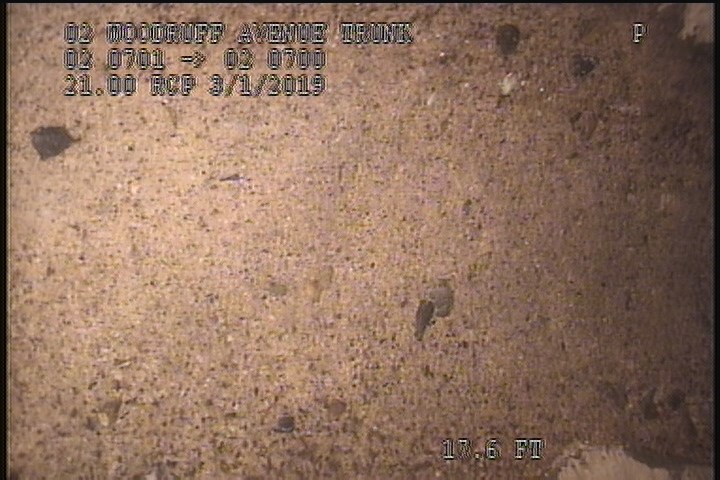

  • Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC

    17.6 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC

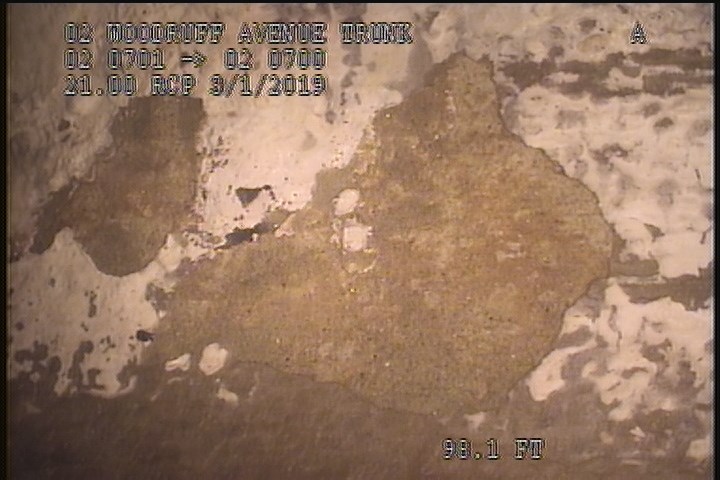

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO - PEELING CPNCRETE CONCRETE

    98.1 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO - PEELING CPNCRETE CONCRETE

All inspections of P03252Work order 0756474

Observations (13)

DistanceCodeObservation
125MGO80% MAG COAT FINISH
2MGO80% MAG COAT START
125.6AMH5:30AM
0MGOConn. @ Mh, 9 O' Clock. Active
98.1SSSPEELING CPNCRETE CONCRETE
0MWM—
27SAVSEVERE AGG SPORATIC
17.6SAVSEVERE AGG SPORATIC
2.6SAVSEVERE AGG SPORATIC
0MWL—
2SSSBLISTERING PEELING CONCRETE
0AMH5:10AM
125SSSBLISTERING PEELING CONCRETE

Properties (6)

custom_field_three
SEVERE AGG SPORATIC-80% MAG COAT
custom_field_two
4
customer
LACSD
datetime
2019-03-01T05:05:48-08:00
documentation
MARTIN,REVELES,OLIVER 111,CASTILLO
is_lateral_inspection
false
