Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 1, 2019, 08:46 AM

  • B 0413_B 0412_312019_010536.mp4

Date
03/01/2019
W/O
0750457
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00092
PipeID
P08925
Time
12:46 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1134R
Sewer Name
B JOINT OUTFALL B - UNIT 5B
City
ARACADIA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
03
Purpose
Maintenance Related
Project
20190301MDM_JOINT_OUTFALL_B_UNIT_5B
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
B 0413
Downstream MH
B 0412
Dir. of Survey
Downstream
Length Surveyed
382.8 ft.
Total Length
382.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole B 0413 to B 0412
MH: B 0413MH: B 0412downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:55AM0 ft. MWL - Water Level, 15 %of cross sectional area8.1 ft. MGO - General Observation - 18" VCP77.1 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open-20% ROOTS148.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open168 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open244.1 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open335.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN382.8 ft. AMH - Downstream Manhole, Survey Ends - 1:15AM

Observation photos (2)

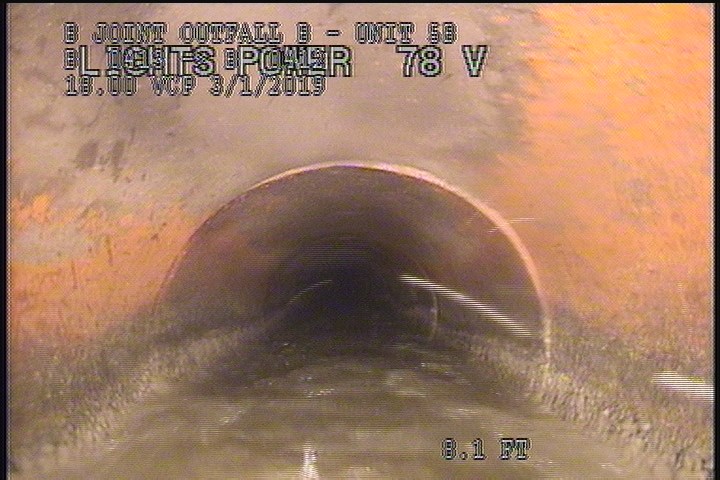

  • General Observation - 18" VCP

    8.1 ft. - General Observation - 18" VCP

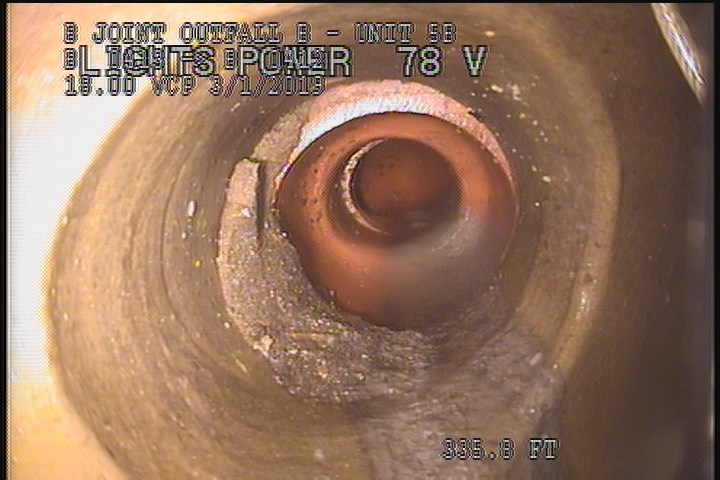

  • Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN

    335.7 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN

All inspections of P08925Work order 0750457

Observations (10)

DistanceCodeObservation
0MWM—
77.1TFDOpen-20% ROOTS
8.1MGO18" VCP
244.1TFOpen
335.7TFOPEN
382.8AMH1:15AM
148.7TFOpen
0AMH12:55AM
168TBOpen
0MWL—

Properties (5)

additional_info
POST ROOT EVALUATION ONLY
customer
LACSD
datetime
2019-03-01T00:46:07-08:00
documentation
MARTIN,REVELES,OLIVER 111,CASTILLO
is_lateral_inspection
false
