Wastewater/Activity/PacpInspection/1.0Mar 1, 2019, 05:09 PM
08 0673_08 0672_312019_091226.mp4
- Date
- 03/01/2019
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00446
- PipeID
- P24636
- Time
- 9:09 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7929
- Sewer Name
- 08 FIGUEROA STREET RELIEF TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 01
- Purpose
- Maintenance Related
- Project
- 20190301DF_FIGUEROA_STREET_RELIEF_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 08 0672
- Downstream MH
- 08 0673
- Dir. of Survey
- Upstream
- Length Surveyed
- 14.5 ft.
- Total Length
- 14.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (5)

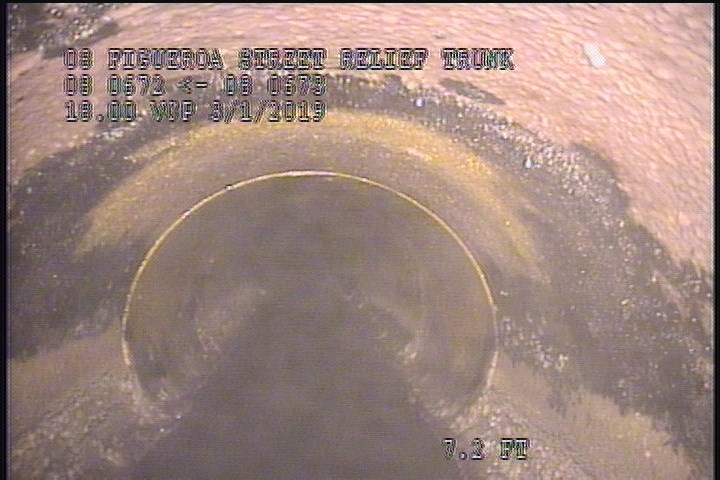

0 ft. - Downstream Manhole, Survey Begins - 9:11 AM

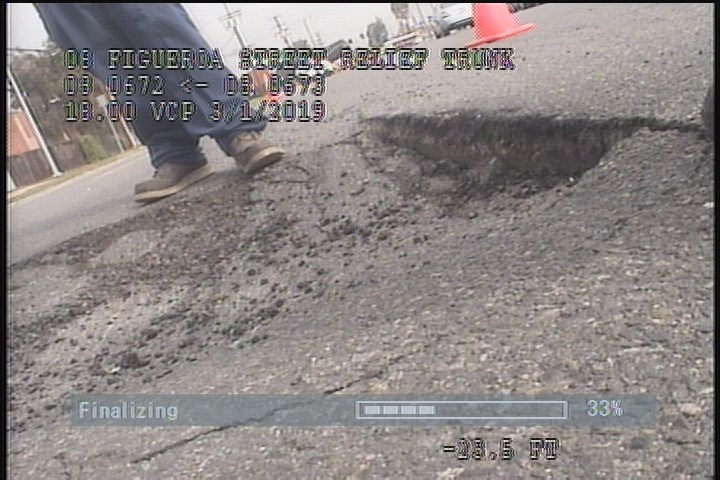

0.1 ft. - Water Mark, 25 %of cross sectional area

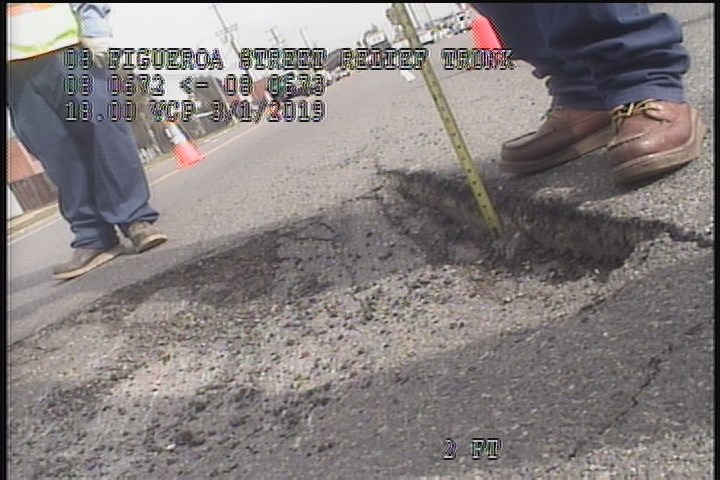

2 ft. - General Photograph
8.1 ft. - General Photograph
14.5 ft. - Survey Abandoned - 9:22 AM
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0.1 | MWL | — |
| 14.5 | MSA | 9:22 AM |
| 8.1 | MGP | — |
| 2 | MGP | — |
| 2 | MGP | — |
| 0.1 | MWM | — |
| 0 | AMH | 9:11 AM |
Properties (7)
- additional_info
- POSSIBLE SINKHOLE
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-03-01T09:09:32-08:00
- documentation
- FRANKLIN, IGNACIO, RUVALCABA
- is_lateral_inspection
- false
- year_laid
- 20020802
