Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 1, 2019, 08:14 PM

  • 02 0696_02 0695_312019_121718.mp4

Date
03/01/2019
W/O
0756474
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00311
PipeID
P03247
Time
12:14 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7930
Sewer Name
02 WOODRUFF AVENUE TRUNK
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
33
Purpose
Routine Assessment
Project
20190228DF_WOODRUFF_AVENUE_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
02 0696
Downstream MH
02 0695
Dir. of Survey
Downstream
Length Surveyed
356.6 ft.
Total Length
356.6 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 02 0696 to 02 0695
MH: 02 0696MH: 02 0695downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:15 PM0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - ROACHES @ MH2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start111.7 ft. MGP - General Photograph158.3 ft. MGP - General Photograph163.5 ft. MGP - General Photograph214.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 4"255.2 ft. MGP - General Photograph354.5 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish354.5 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70% MAG354.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish356.6 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach356.6 ft. AMH - Downstream Manhole, Survey Ends - 12:41 PM356.6 ft. MGO - General Observation - Mag Coat xx% 9 to 3 o' Clock Throughout

Observation photos (7)

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG

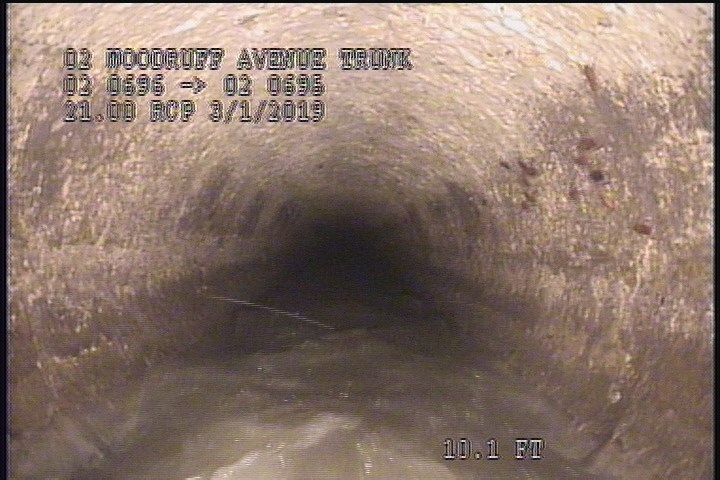

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

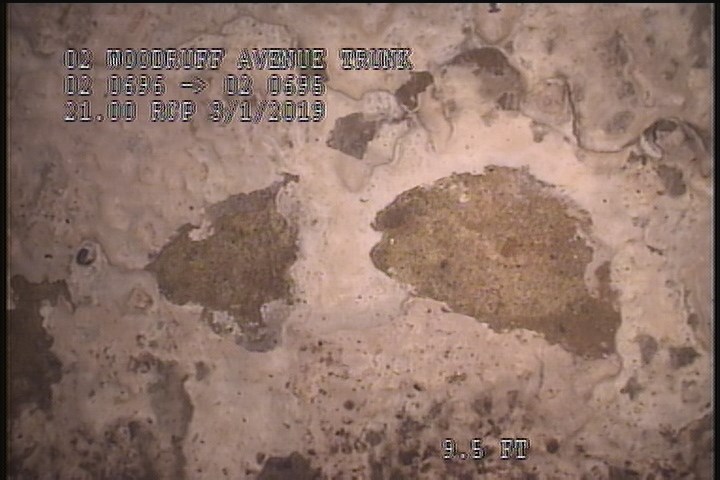

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

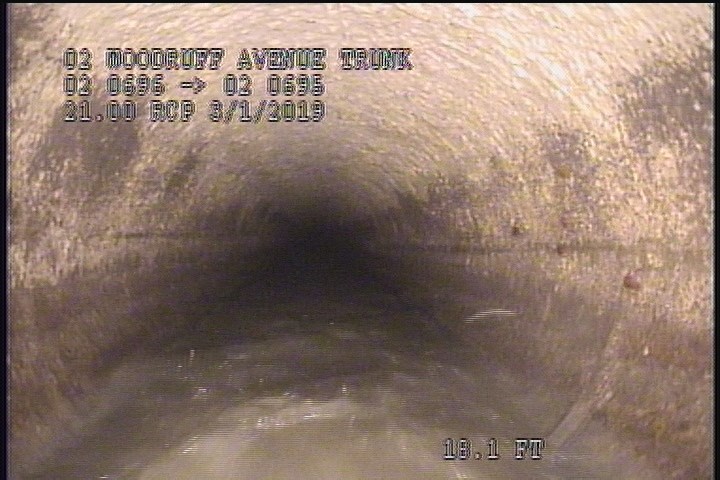

    2 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Photograph

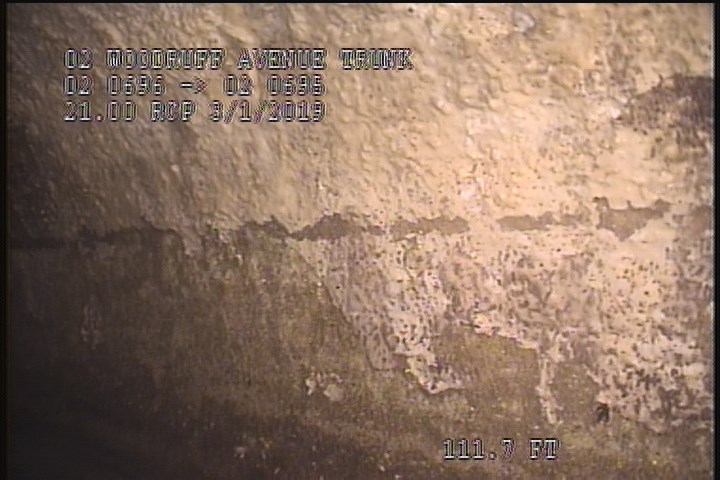

    111.7 ft. - General Photograph

  • General Photograph

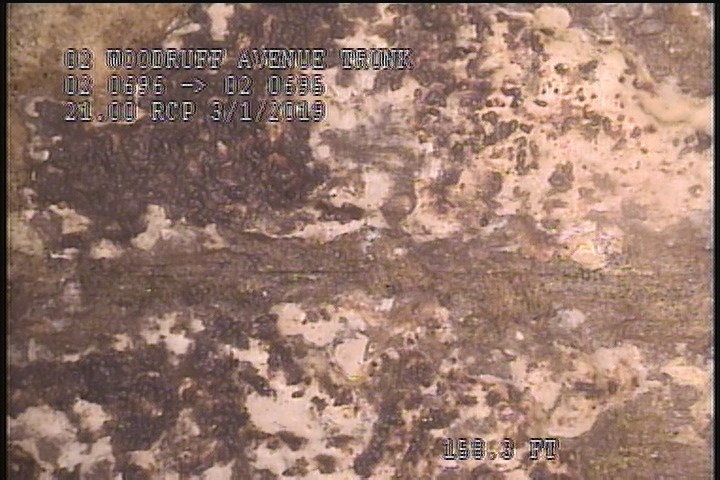

    158.3 ft. - General Photograph

  • General Photograph

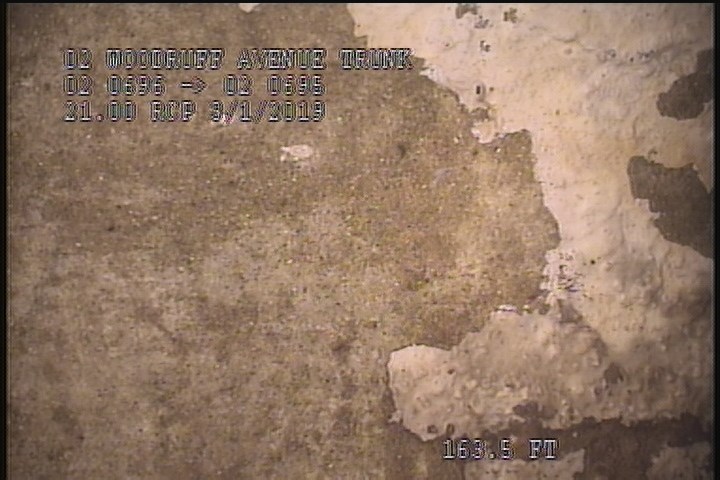

    163.5 ft. - General Photograph

  • General Photograph

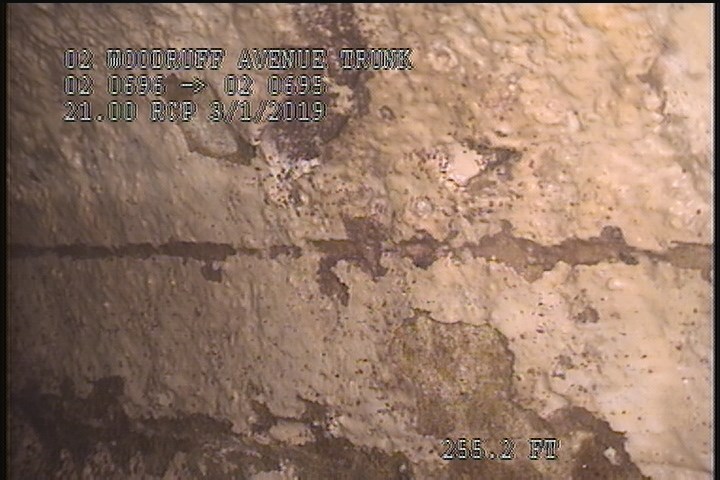

    255.2 ft. - General Photograph

All inspections of P03247Work order 0756474

Observations (18)

DistanceCodeObservation
0MWM—
356.6MGOPeeling & Flaking Throughout The Reach
0AMH12:15 PM
354.5SRV—
111.7MGP—
2SZ70% MAG
2SAV—
158.3MGP—
0MWL—
354.5SZ70% MAG
354.5SAV—
255.2MGP—
0MGOROACHES @ MH
356.6AMH12:41 PM
214.1TFC—
2SRV—
163.5MGP—
356.6MGOMag Coat xx% 9 to 3 o' Clock Throughout

Properties (6)

custom_field_three
REINFORCEMENT VISIBLE
custom_field_two
2
customer
LACSD
datetime
2019-03-01T12:14:55-08:00
documentation
FRANKLIN, IGNACIO, RUVALCABA
is_lateral_inspection
false
