Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 1, 2019, 07:52 PM

  • 02 0697_02 0696_312019_115539.mp4

Date
03/01/2019
W/O
0756474
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00311
PipeID
P03248
Time
11:52 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7930
Sewer Name
02 WOODRUFF AVENUE TRUNK
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
33
Purpose
Routine Assessment
Project
20190228DF_WOODRUFF_AVENUE_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
02 0697
Downstream MH
02 0696
Dir. of Survey
Downstream
Length Surveyed
348.8 ft.
Total Length
348.8 ft.
Structural Index
4
Structural Quick
5231
Structural Rating
13
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 02 0697 to 02 0696
MH: 02 0697MH: 02 0696downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - ROACHES @ MH0 ft. AMH - Upstream Manhole, Survey Begins - 11:53 AM0 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start45.5 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"98.7 ft. MGP - General Photograph170.3 ft. MGP - General Photograph189.5 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start201.7 ft. SRC - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Start310.9 ft. MGP - General Photograph346.9 ft. SRC - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish346.9 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish346.9 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70% MAG346.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish348.8 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach348.8 ft. AMH - Downstream Manhole, Survey Ends - 12:14 PM348.8 ft. MGO - General Observation - Grease Throughout The Reach (5%)348.8 ft. MGO - General Observation - ROACHES @ MH

Observation photos (7)

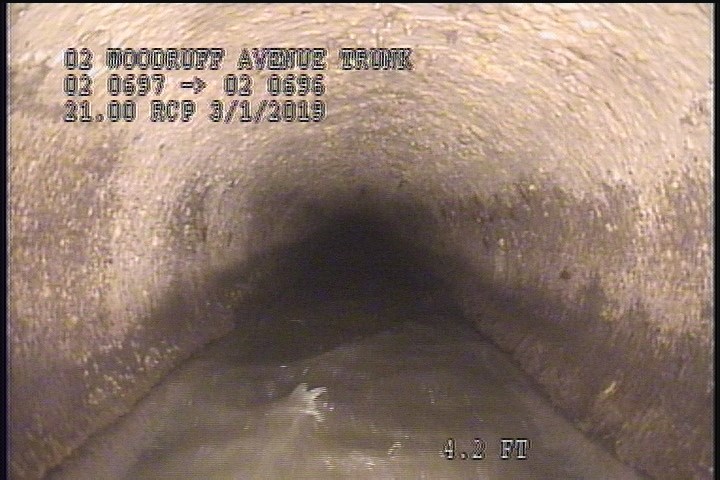

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG

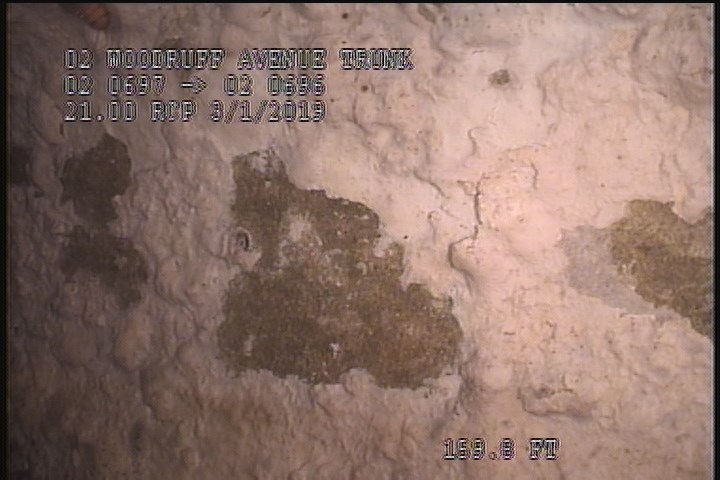

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

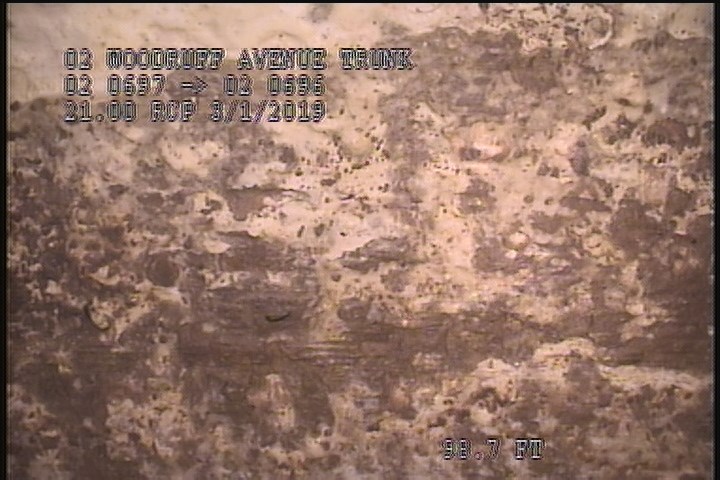

  • General Photograph

    98.7 ft. - General Photograph

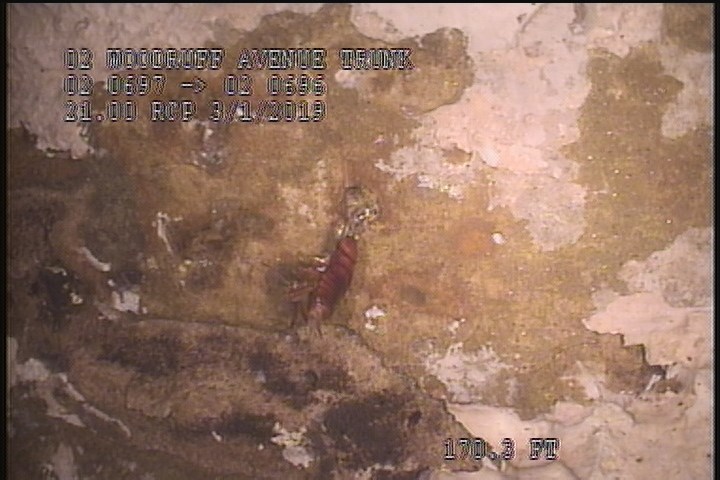

  • General Photograph

    170.3 ft. - General Photograph

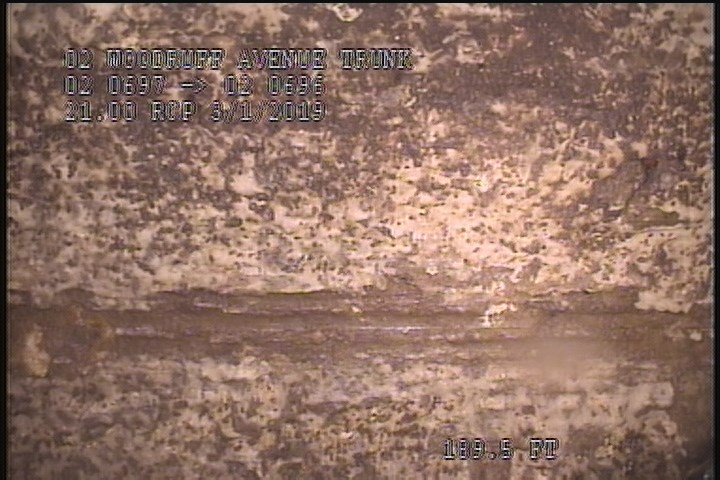

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    189.5 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

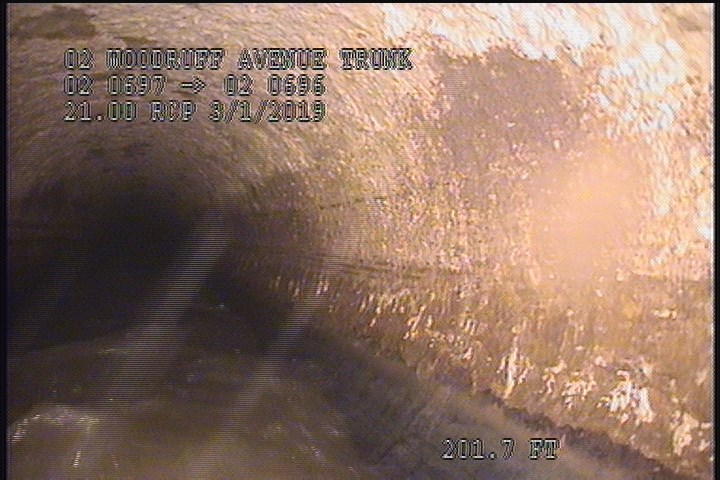

  • Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    201.7 ft. - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

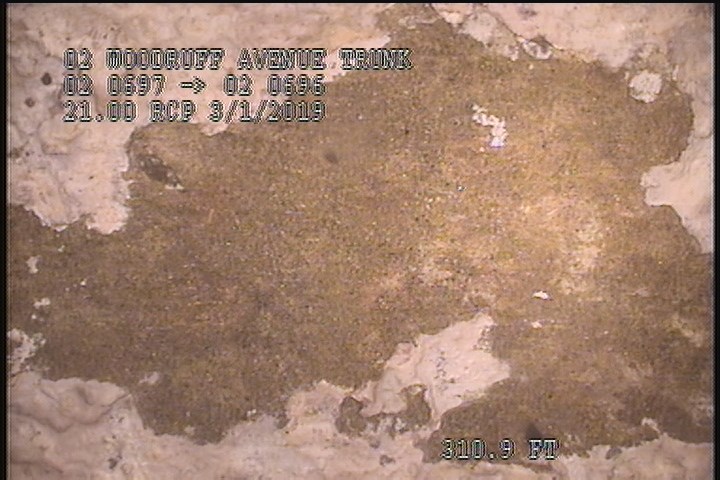

  • General Photograph

    310.9 ft. - General Photograph

All inspections of P03248Work order 0756474

Observations (20)

DistanceCodeObservation
310.9MGP—
0MWL—
348.8MGOPeeling & Flaking Throughout The Reach
170.3MGP—
346.9SRC—
348.8AMH12:14 PM
201.7SRC—
0MGOROACHES @ MH
348.8MGOGrease Throughout The Reach (5%)
2SZ70% MAG
346.9SRV—
2SAV—
346.9SZ70% MAG
0AMH11:53 AM
45.5TFA—
98.7MGP—
0MWM—
189.5SRV—
346.9SAV—
348.8MGOROACHES @ MH

Properties (6)

custom_field_three
REINFORCEMENT VISIBLE
custom_field_two
2
customer
LACSD
datetime
2019-03-01T11:52:15-08:00
documentation
FRANKLIN, IGNACIO, RUVACABA
is_lateral_inspection
false
