Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 1, 2019, 07:20 PM

  • 02 0698_02 0697_312019_113548.mp4

Date
03/01/2019
W/O
0756474
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00311
PipeID
P03249
Time
11:20 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7930
Sewer Name
02 WOODRUFF AVENUE TRUNK
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
33
Purpose
Routine Assessment
Project
20190228DF_WOODRUFF_AVENUE_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
02 0698
Downstream MH
02 0697
Dir. of Survey
Downstream
Length Surveyed
341 ft.
Total Length
341 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 02 0698 to 02 0697
MH: 02 0698MH: 02 0697downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 11:23 AM0 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG0 ft. MWL - Water Level, 20 %of cross sectional area61.6 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"164.8 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"168.4 ft. MGP - General Photograph318.6 ft. MGP - General Photograph337.6 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70% MAG340 ft. MGO - General Observation - ROACHES @ MH340.2 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)340.2 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach341 ft. AMH - Downstream Manhole, Survey Ends - 11:52 AM

Observation photos (3)

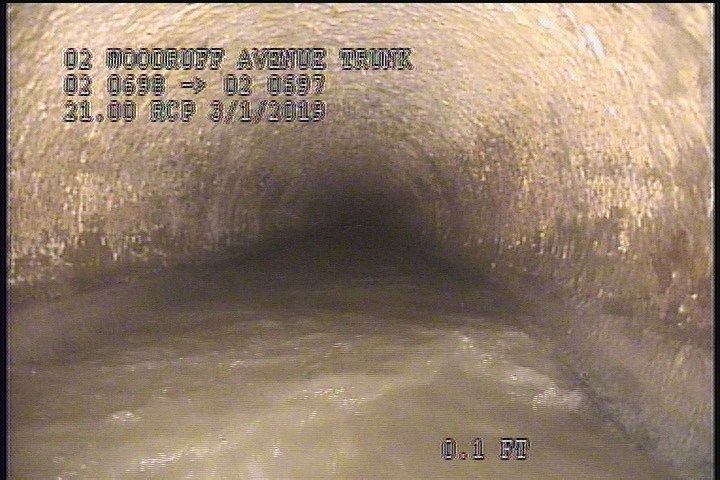

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG

    0 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG

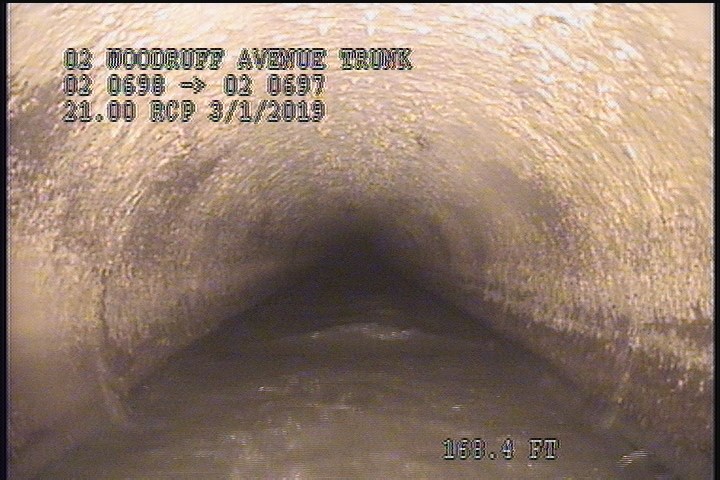

  • General Photograph

    168.4 ft. - General Photograph

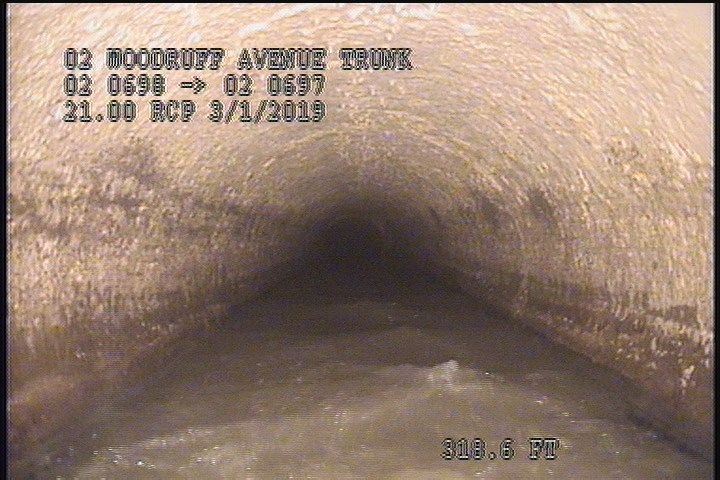

  • General Photograph

    318.6 ft. - General Photograph

All inspections of P03249Work order 0756474

Observations (13)

DistanceCodeObservation
340MGOROACHES @ MH
341AMH11:52 AM
337.6SZ70% MAG
0MWM—
0AMH11:23 AM
61.6TFA—
340.2MGOGREASE THROUGHOUT THE REACH (5%)
0SZ70% MAG
318.6MGP—
340.2MGOPeeling & Flaking Throughout The Reach
0MWL—
164.8TFA—
168.4MGP—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2019-03-01T11:20:06-08:00
documentation
FRANKLIN, IGNACIO, RUVACABA
is_lateral_inspection
false
