Wastewater/Activity/PacpInspection/1.0Feb 28, 2019, 07:07 PM
02 0678_02 0677_2282019_111101.mp4
- Date
- 02/28/2019
- W/O
- 0756474
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00311
- PipeID
- P03233
- Time
- 11:07 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7928
- Sewer Name
- 02 WOODRUFF AVENUE TRUNK
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- 20190228DF_WOODRUFF_AVENUE_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 02 0678
- Downstream MH
- 02 0677
- Dir. of Survey
- Downstream
- Length Surveyed
- 398 ft.
- Total Length
- 398 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (3)

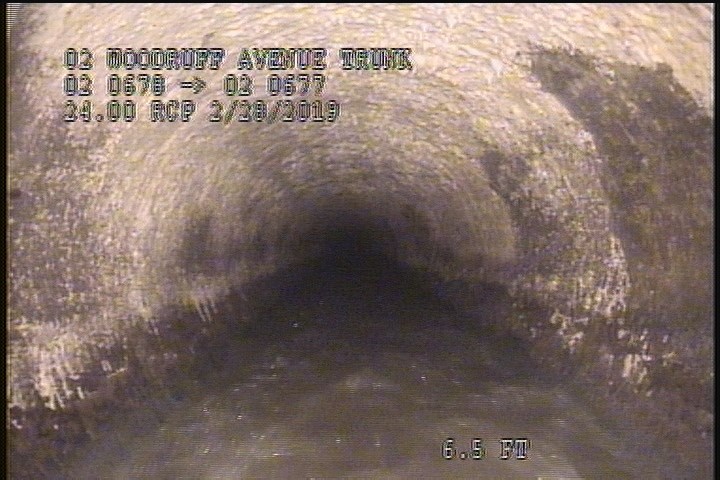

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG

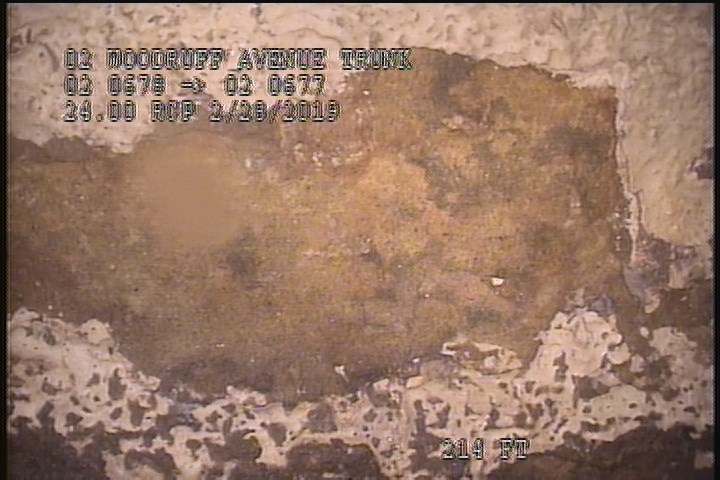

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

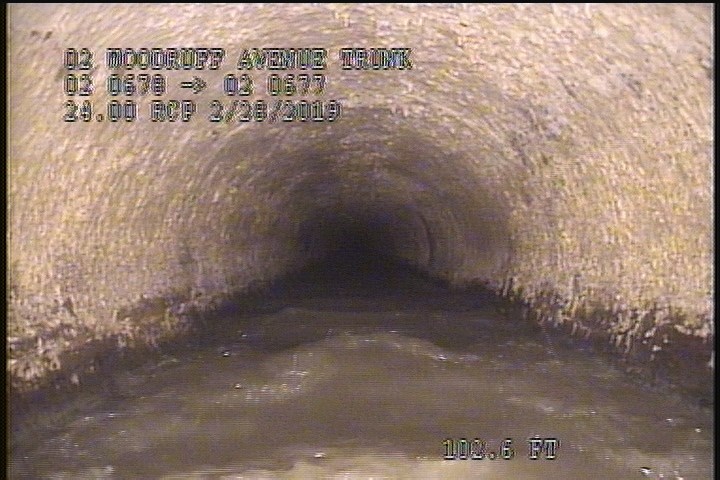

102.6 ft. - General Photograph
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 398 | AMH | 11:25 AM |
| 102.6 | MGP | — |
| 395.5 | SAV | — |
| 0 | AMH | 11:09 AM |
| 0 | MWM | — |
| 395.6 | MGO | Peeling & Flaking Throughout The Reach |
| 2 | SZ | 75% MAG |
| 395.6 | SZ | 75% MAG |
| 395.6 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 2 | SAV | — |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-02-28T11:07:52-08:00
- documentation
- FRANKLIN, IGNACIO, RUVACABA
- is_lateral_inspection
- false
