Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 28, 2019, 06:29 PM

  • 02 0679_02 0678_2282019_103329.mp4

Date
02/28/2019
W/O
0756474
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00311
PipeID
P03234
Time
10:29 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7928
Sewer Name
02 WOODRUFF AVENUE TRUNK
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
33
Purpose
Routine Assessment
Project
20190228DF_WOODRUFF_AVENUE_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
02 0679
Downstream MH
02 0678
Dir. of Survey
Downstream
Length Surveyed
401.5 ft.
Total Length
401.5 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 02 0679 to 02 0678
MH: 02 0679MH: 02 0678downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 10:30 AM0 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG95.3 ft. MGP - General Photograph112.2 ft. MGP - General Photograph292.6 ft. MGP - General Photograph398.8 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish398.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish398.8 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 75% MAG401.4 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach401.4 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)401.5 ft. AMH - Downstream Manhole, Survey Ends - 11:07 AM

Observation photos (4)

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

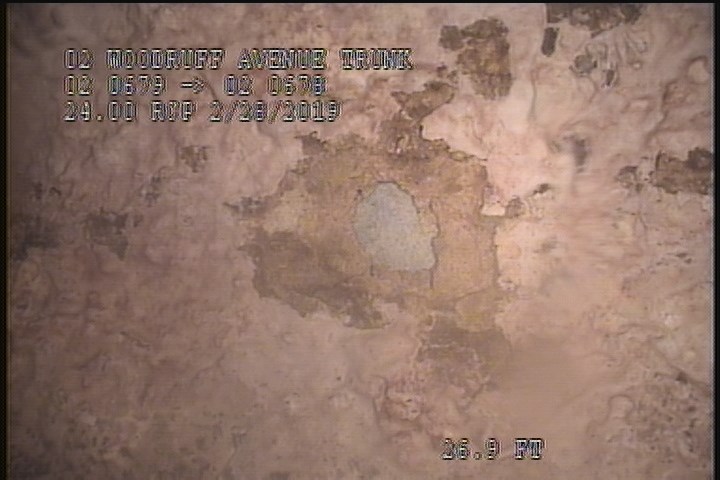

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Photograph

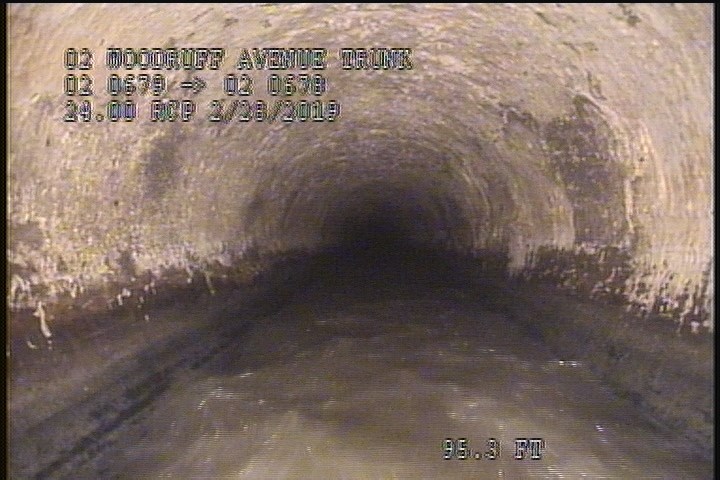

    95.3 ft. - General Photograph

  • General Photograph

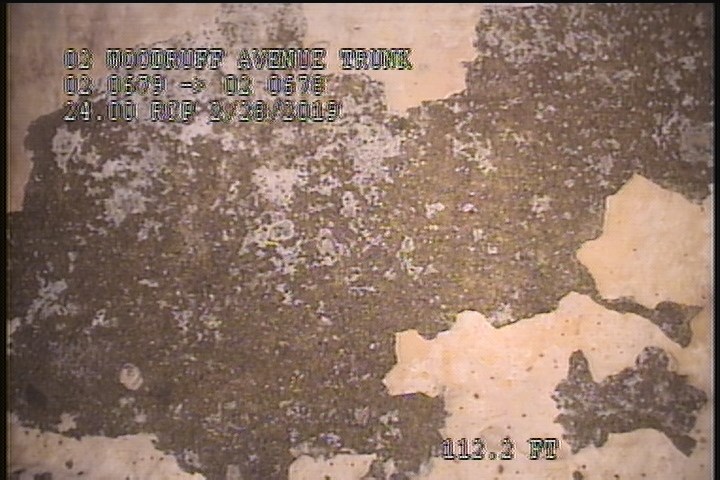

    112.2 ft. - General Photograph

  • General Photograph

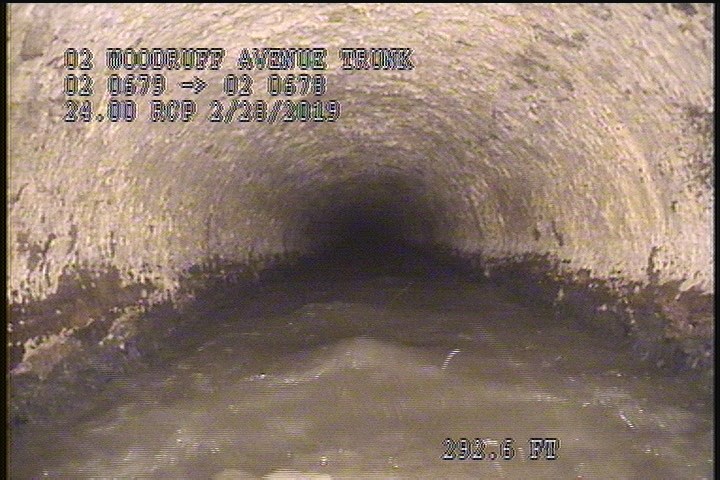

    292.6 ft. - General Photograph

All inspections of P03234Work order 0756474

Observations (15)

DistanceCodeObservation
2SAV—
401.4MGOPeeling & Flaking Throughout The Reach
2SRV—
398.8SRV—
401.4MGOGREASE THROUGHOUT THE REACH (5%)
398.8SAV—
398.8SZ75% MAG
95.3MGP—
2SZ75% MAG
292.6MGP—
0MWL—
112.2MGP—
401.5AMH11:07 AM
0AMH10:30 AM
0MWM—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-02-28T10:29:55-08:00
documentation
FRANKLIN, IGNACIO, RUVACABA
is_lateral_inspection
false
