Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 22, 2019, 09:55 AM

  • A 1039_A 1038_3222019_045159.mp4

Date
03/22/2019
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00918
PipeID
P20814
Time
2:55 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1159
Sewer Name
A JOA-1A DISTRICT 5 INTERCEPTOR RELIEF
City
LAWNDALE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
20
Purpose
Routine Assessment
Project
20190322MDM_JOA_1A_DISTRIC_5_INTERCEPTOR_RELIEF
Material
RGRCP-PTL
Shape
Circular
Height
54 in.
Upstream MH
A 1039
Downstream MH
A 1038
Dir. of Survey
Downstream
Length Surveyed
6 ft.
Total Length
6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole A 1039 to A 1038
MH: A 1039MH: A 1038downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:55AM0 ft. MWL - Water Level, 80 %of cross sectional area0 ft. MWM - Water Mark, 100 %of cross sectional area2 ft. MGO - General Observation - 54" RGRCP-PTL2 ft. MGO - General Observation - PTL LINER6 ft. MSA - Survey Abandoned - DOWNLEG UPSTREAM SIPHON

Observation photos (3)

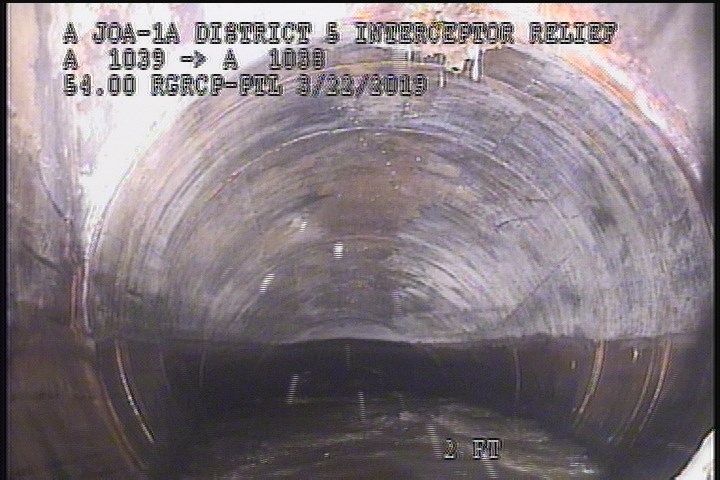

  • General Observation - 54" RGRCP-PTL

    2 ft. - General Observation - 54" RGRCP-PTL

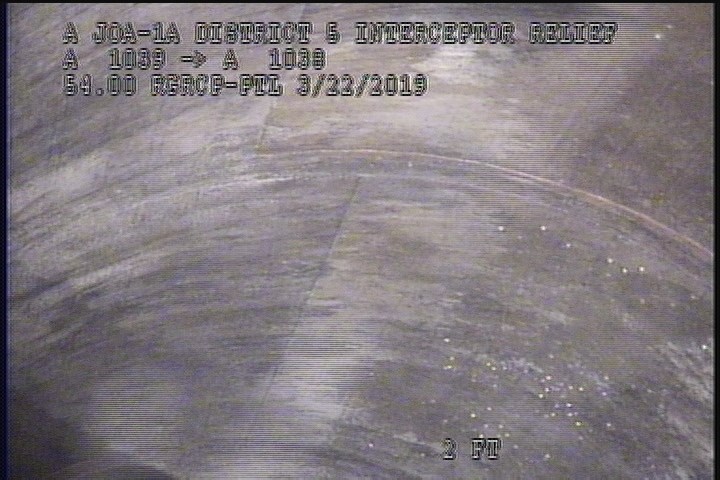

  • General Observation - PTL LINER

    2 ft. - General Observation - PTL LINER

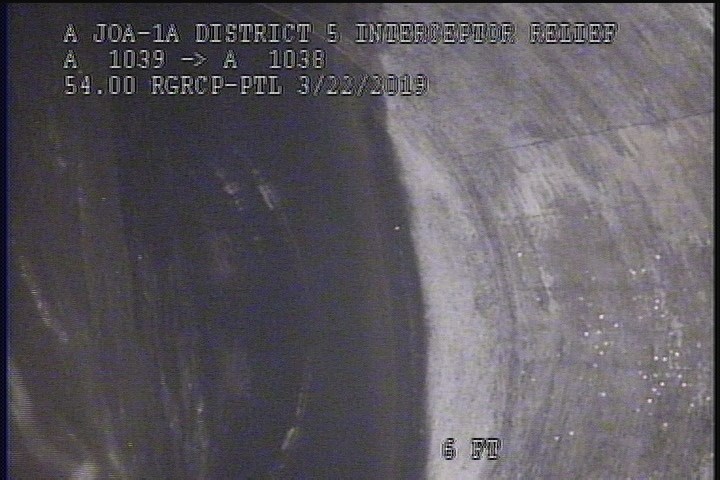

  • Survey Abandoned - DOWNLEG UPSTREAM SIPHON

    6 ft. - Survey Abandoned - DOWNLEG UPSTREAM SIPHON

All inspections of P20814Work order #

Observations (6)

DistanceCodeObservation
2MGO54" RGRCP-PTL
0AMH4:55AM
6MSADOWNLEG UPSTREAM SIPHON
0MWL—
0MWM—
2MGOPTL LINER

Properties (7)

additional_info
DOWNLEG UPSTREAM SIPHON
custom_field_three
PTL- LINER GOOD COND.
custom_field_two
4
customer
LACSD
datetime
2019-03-22T02:55:20-07:00
documentation
MARTIN,REVELES,CASTILLO
is_lateral_inspection
false
