Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 22, 2019, 09:54 AM

  • A 1040_A 1039_3222019_041937.mp4

Date
03/22/2019
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00918
PipeID
P20815
Time
2:54 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1159
Sewer Name
A JOA-1A DISTRICT 5 INTERCEPTOR RELIEF
City
LAWNDALE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
20
Purpose
Routine Assessment
Project
20190322MDM_JOA_1A_DISTRIC_5_INTERCEPTOR_RELIEF
Material
RCP-PTL
Shape
Circular
Height
54 in.
Upstream MH
A 1040
Downstream MH
A 1039
Dir. of Survey
Downstream
Length Surveyed
540 ft.
Total Length
540 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole A 1040 to A 1039
MH: A 1040MH: A 1039downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:15AM0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. MGO - General Observation - 54" RCP-PTL122.9 ft. MGO - General Observation - JOINTS SEALED338.6 ft. MGO - General Observation - 54" RCP-PTL540 ft. AMH - Downstream Manhole, Survey Ends - 4:40AM

Observation photos (3)

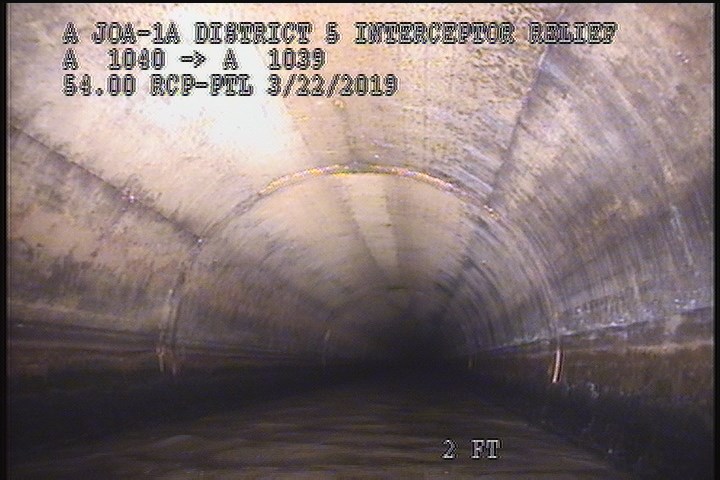

  • General Observation - 54" RCP-PTL

    2 ft. - General Observation - 54" RCP-PTL

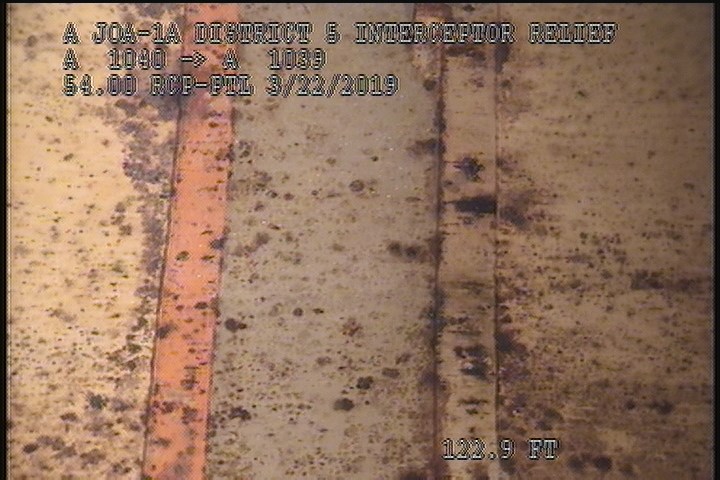

  • General Observation - JOINTS SEALED

    122.9 ft. - General Observation - JOINTS SEALED

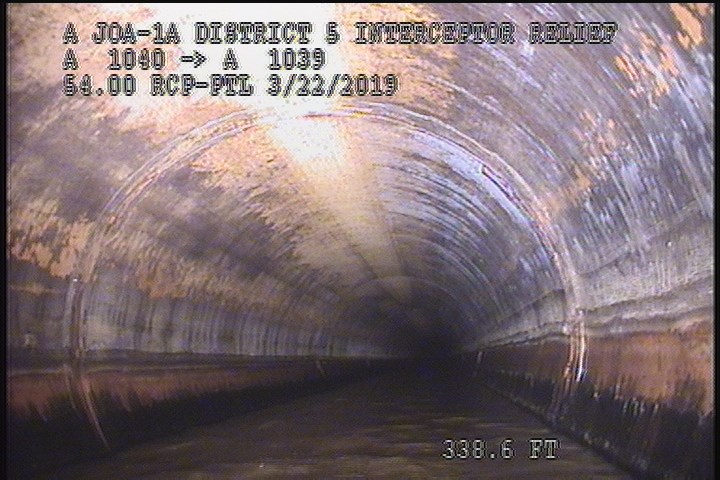

  • General Observation - 54" RCP-PTL

    338.6 ft. - General Observation - 54" RCP-PTL

All inspections of P20815Work order #

Observations (7)

DistanceCodeObservation
122.9MGOJOINTS SEALED
540AMH4:40AM
2MGO54" RCP-PTL
338.6MGO54" RCP-PTL
0MWM—
0AMH4:15AM
0MWL—

Properties (6)

custom_field_three
PTL- LINER GOOD COND
custom_field_two
4
customer
LACSD
datetime
2019-03-22T02:54:02-07:00
documentation
MARTIN,REVELES,CASTILLO
is_lateral_inspection
false
