Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 22, 2019, 09:29 AM

  • A 1041_A 1040_3222019_031359.mp4

Date
03/22/2019
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00918
PipeID
P20816
Time
2:29 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1159
Sewer Name
A JOA-1A DISTRICT 5 INTERCEPTOR RELIEF
City
LAWNDALE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
20
Purpose
Routine Assessment
Project
20190322MDM_JOA_1A_DISTRIC_5_INTERCEPTOR_RELIEF
Material
RCP-PTL
Shape
Circular
Height
54 in.
Upstream MH
A 1041
Downstream MH
A 1040
Dir. of Survey
Downstream
Length Surveyed
579.2 ft.
Total Length
579.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole A 1041 to A 1040
MH: A 1041MH: A 1040downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:20AM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWL - Water Level, 20 %of cross sectional area101.3 ft. MGO - General Observation - 54" RCP-PTL412.3 ft. MGO - General Observation - LINER JOINTS IN PLACE465.1 ft. MWM - Water Mark, 30 %of cross sectional area465.1 ft. MWL - Water Level, 20 %of cross sectional area465.1 ft. MGO - General Observation - 54" RCP - PTL579.2 ft. AMH - Downstream Manhole, Survey Ends - 3:55AM

Observation photos (3)

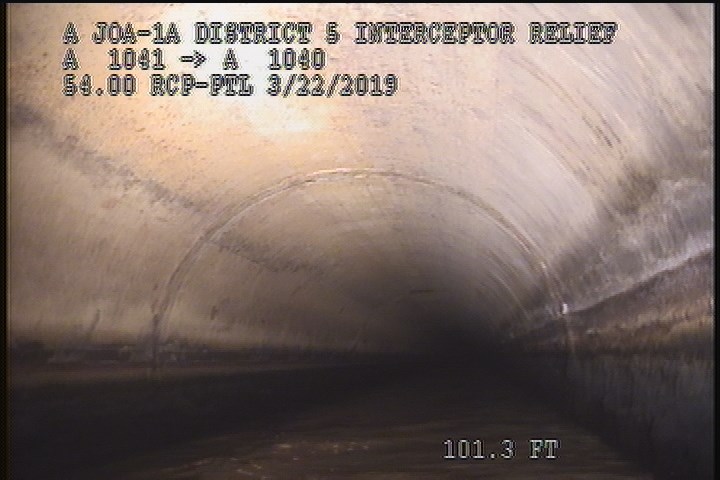

  • General Observation - 54" RCP-PTL

    101.3 ft. - General Observation - 54" RCP-PTL

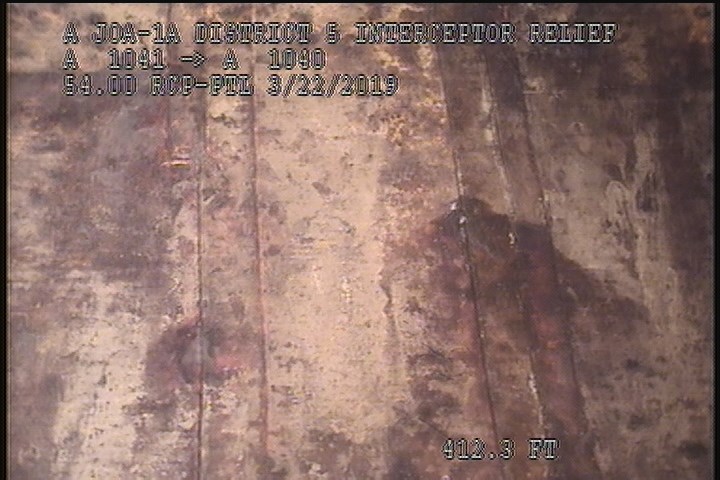

  • General Observation - LINER JOINTS IN PLACE

    412.3 ft. - General Observation - LINER JOINTS IN PLACE

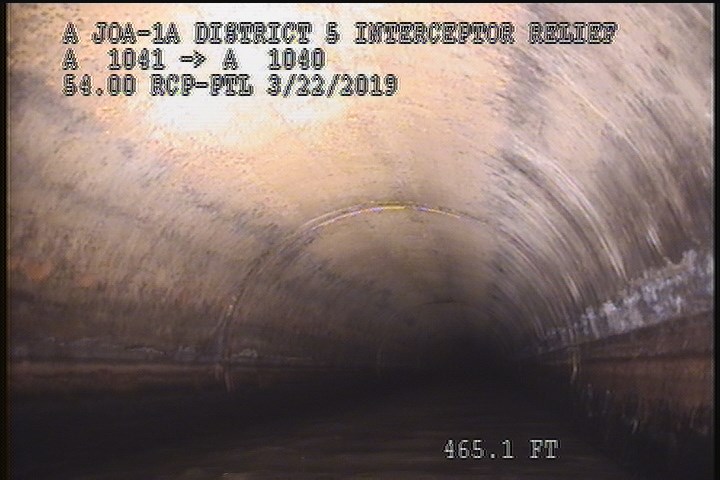

  • General Observation - 54" RCP - PTL

    465.1 ft. - General Observation - 54" RCP - PTL

All inspections of P20816Work order #

Observations (11)

DistanceCodeObservation
0MWM—
0AMH3:20AM
465.1MWM—
465.1MWL—
0MGOConn. @ Mh, 9 O' Clock. Active
465.1MGO54" RCP - PTL
101.3MGO54" RCP-PTL
0MGOConn. @ Mh, 3 O' Clock. Active
0MWL—
579.2AMH3:55AM
412.3MGOLINER JOINTS IN PLACE

Properties (7)

custom_field_three
PTL- LINER GOOD COND.
custom_field_two
4
customer
LACSD
datetime
2019-03-22T02:29:27-07:00
documentation
MARTIN,REVELES,CASTILLO
is_lateral_inspection
false
year_laid
19931117
