Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 21, 2019, 07:36 AM

  • 22 0283_22 0282_3212019_005735.mp4

Date
03/21/2019
W/O
0761873
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00793
PipeID
P16569
Time
12:36 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Heavy Cleaning
Media Label
H1156
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
31
Purpose
Maintenance Related
Project
20190321MDM_CAMERON_TRUNK_SECTS_1_2_3
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0283
Downstream MH
22 0282
Dir. of Survey
Downstream
Length Surveyed
295.7 ft.
Total Length
295.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 22 0283 to 22 0282
MH: 22 0283MH: 22 0282downstream0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Capped0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:45AM0 ft. MWL - Water Level, 10 %of cross sectional area7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active27.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open92.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open137.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open149.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped153.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open209.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open232 ft. MWL - Water Level, 30 %of cross sectional area254.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open282.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open295.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Capped295.2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active295.2 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - PAPER & ROOTS IN MH295.7 ft. AMH - Downstream Manhole, Survey Ends - 1:05AM

Observation photos (1)

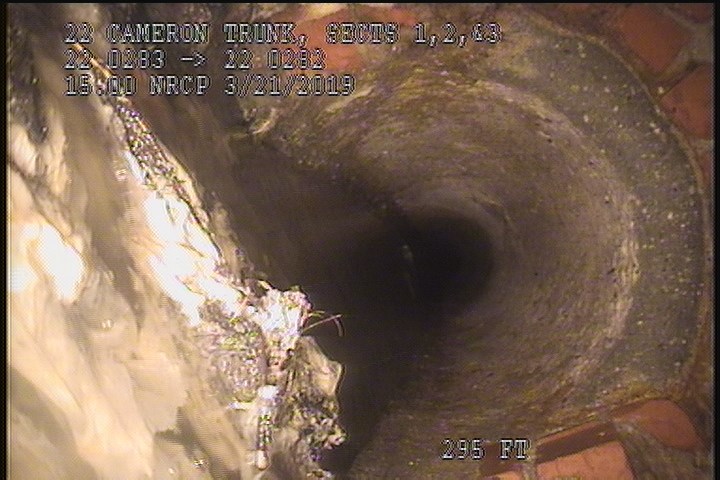

  • Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - PAPER & ROOTS IN MH

    295.2 ft. - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - PAPER & ROOTS IN MH

All inspections of P16569Work order 0761873

Observations (18)

DistanceCodeObservation
27.8TFOpen
282.4TFOpen
0MGOConn. @ Mh, 3 O' Clock. Capped
295.7AMH1:05AM
137.2TFOpen
295.2MGOConn. @ Mh, 3 O' Clock. Capped
92.5TFOpen
0MWM—
153.5TFOpen
232MWL—
0AMH12:45AM
254.4TFOpen
149.2TFCCapped
209.5TFOpen
7TFActive
295.2MGOConn. @ Mh, 9 O' Clock. Active
0MWL—
295.2DSZPAPER & ROOTS IN MH

Properties (5)

additional_info
POST OBSTRUCTION EVALUATION
customer
LACSD
datetime
2019-03-21T00:36:58-07:00
documentation
MARTIN,REVELES,OLIVER 111,CASTILLO
is_lateral_inspection
false
