Wastewater/Activity/PacpInspection/1.0Mar 20, 2019, 04:53 PM
Section#1_G 0077_G 0076__3202019__I0125.mp4
- Date
- 03/20/2019
- W/O
- 0759064
- Weather
- Light Rain
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00347
- PipeID
- P10439
- Time
- 9:53 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0125
- Sewer Name
- G JOINT OUTFALL G - UNIT 7
- City
- LONG BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- 20190320SHO_JOINT_OUTFALL_G_UNIT_7
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- G 0077
- Downstream MH
- G 0076
- Dir. of Survey
- Downstream
- Length Surveyed
- 935.3 ft.
- Total Length
- 935.3 ft.
- Structural Index
- 3
- Structural Quick
- 3d2d
- Structural Rating
- 925
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 925
Observation photos (2)

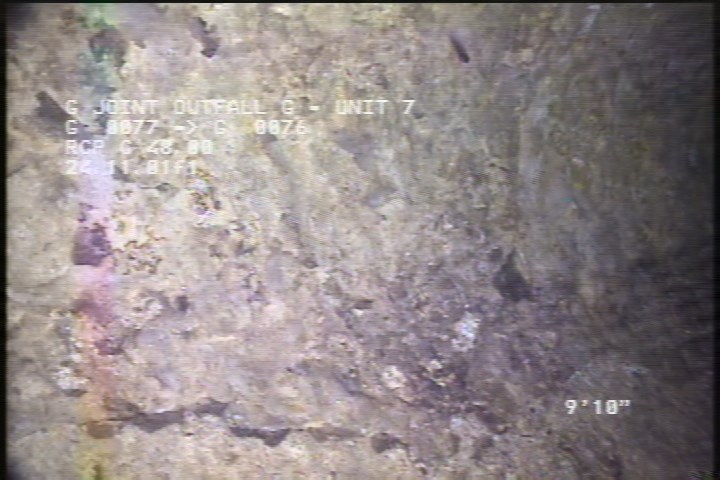

9.8 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SPORADICALLY THROUGHOUT

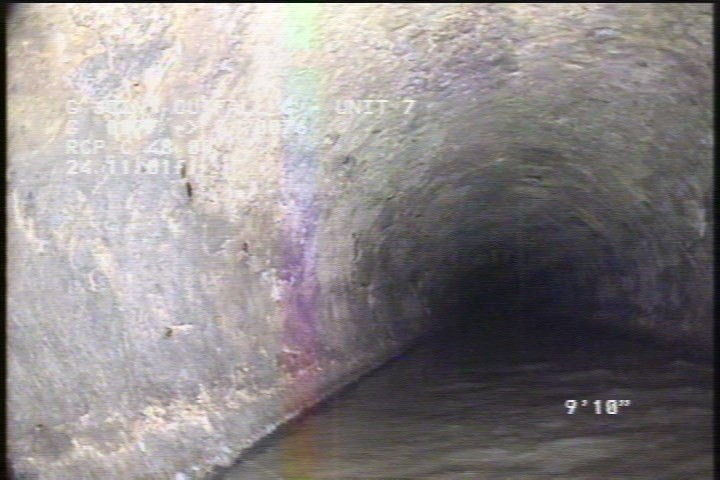

9.8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SPORADICALLY THROUGHOUT
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 935.3 | AMH | G 0076 |
| 9.8 | SAV | SPORADICALLY THROUGHOUT |
| 0 | MWL | — |
| 0 | AMH | G 0077 |
| 934.2 | SSS | — |
| 9.8 | SSS | SPORADICALLY THROUGHOUT |
| 934.2 | SAV | — |
Properties (6)
- custom_field_three
- SPALLING AND AGGREGATE SPORADICALLY THROUGHOUT
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-03-20T09:53:05-07:00
- documentation
- OBREGON, BRAR, RUVALCABA, YOUNG
- is_lateral_inspection
- false
