Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 20, 2019, 08:48 AM

  • 30 0120_30 0338_3202019_045116.mp4

Date
03/20/2019
W/O
0760336
Weather
Light Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00878
PipeID
P17824
Time
1:48 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1155
Sewer Name
30 SOUTH BAY CITIES MAIN TRUNK
City
REDONDO BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
06
Purpose
Capital Improvement Program Assesment
Project
20190320MDM_SOUTH_BAY_CITIES_MAIN_TRUNK
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
30 0120
Downstream MH
30 0338
Dir. of Survey
Downstream
Length Surveyed
90.6 ft.
Total Length
90.6 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 30 0120 to 30 0338
MH: 30 0120MH: 30 0338downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:05AM0 ft.0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area2 ft. MGO - General Observation - WHITE COATING ON PIPE START2 ft. MMC - Material Change, Other (state in comments) - VCP8 ft. MGO - General Observation - 18" PIPE10.8 ft. MGO - General Observation - VCP UNDER COATING25.9 ft. MGO - General Observation - PEELING COATING OFF VCP74.7 ft. SSS - Surface Spalling, from 10 to 12 o'clock, within 8 inches of joint: NO - FLAKING90 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active LARGE OUT GOING LINE90 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active LARGE INCOMING LINE90 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 07 to 08 o'clock, , within 8 inches of joint: NO - IN MH90 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 04 o'clock, , within 8 inches of joint: NO - IN MH90 ft. MGO - General Observation - WHITE COATING ON PIPE FINISH90.6 ft. AMH - Downstream Manhole, Survey Ends - 5:20AM

Observation photos (7)

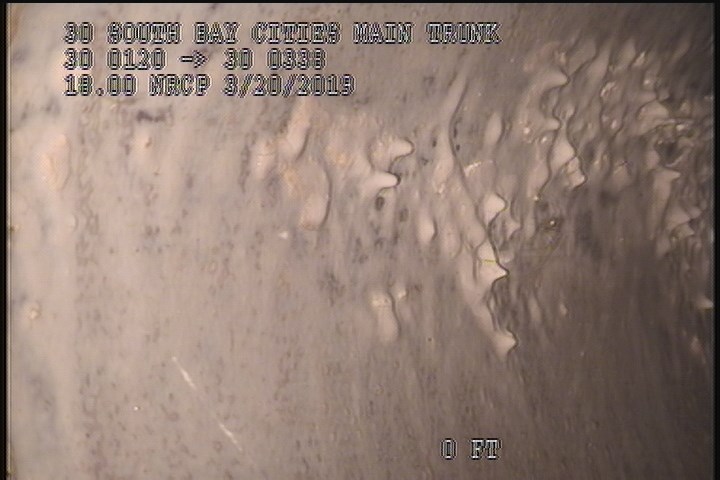

  • General Observation - WHITE COATING ON PIPE START

    2 ft. - General Observation - WHITE COATING ON PIPE START

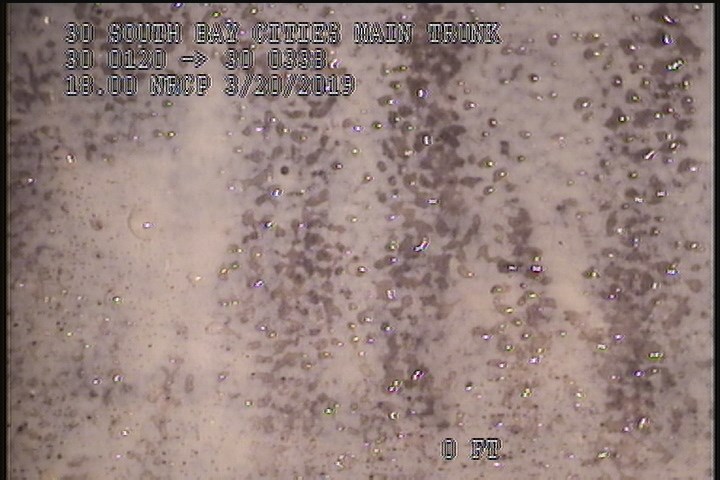

  • Material Change, Other (state in comments) - VCP

    2 ft. - Material Change, Other (state in comments) - VCP

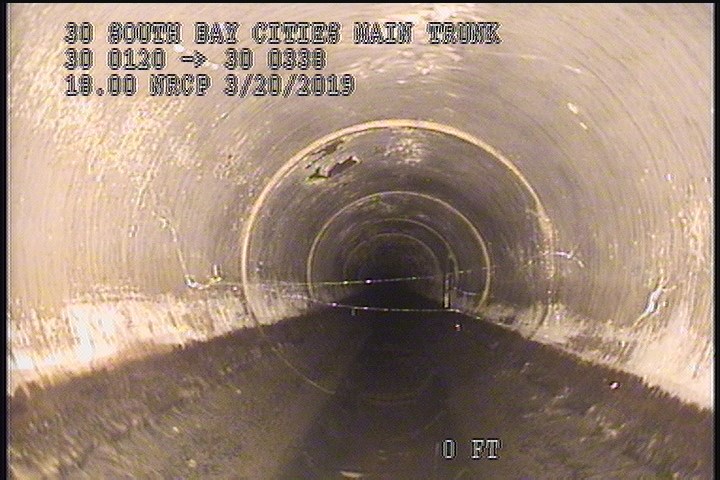

  • General Observation - 18" PIPE

    8 ft. - General Observation - 18" PIPE

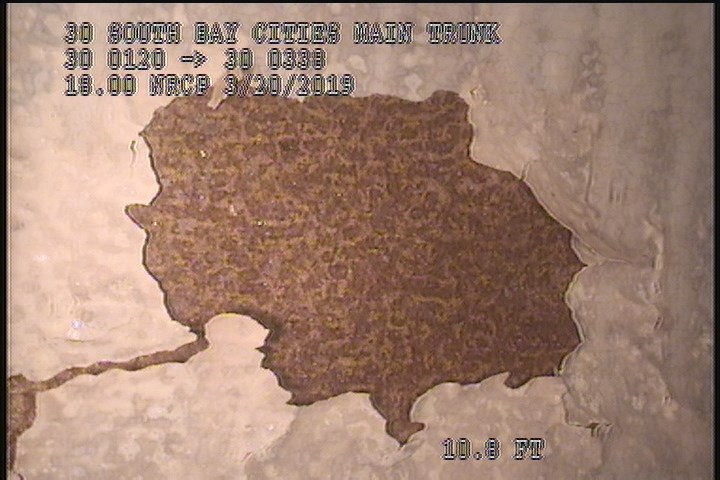

  • General Observation - VCP UNDER COATING

    10.8 ft. - General Observation - VCP UNDER COATING

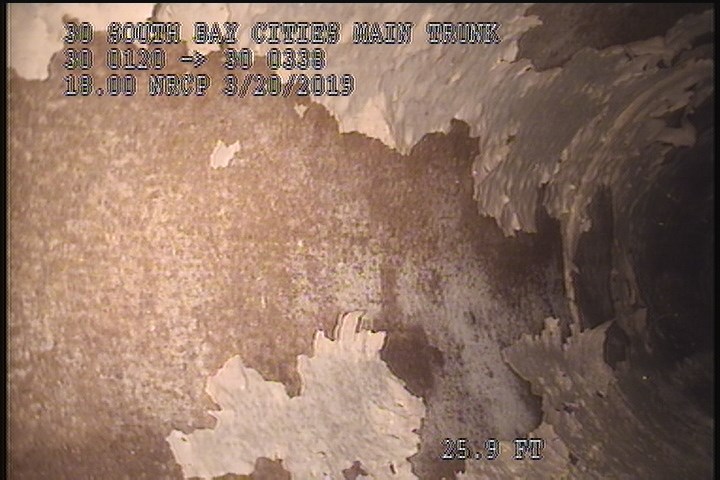

  • General Observation - PEELING COATING OFF VCP

    25.9 ft. - General Observation - PEELING COATING OFF VCP

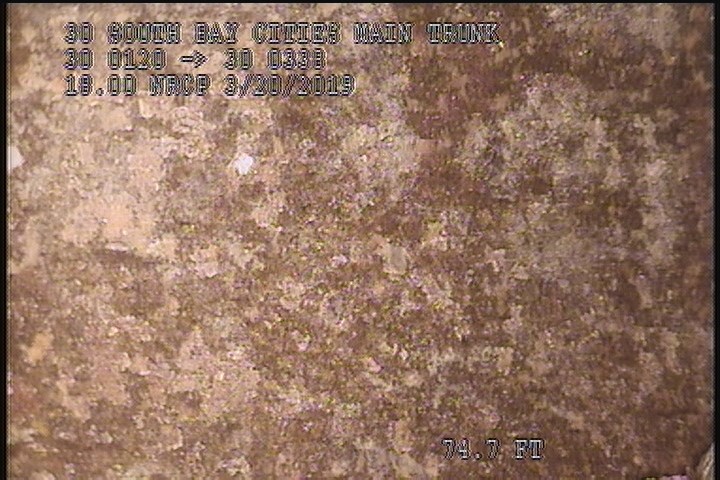

  • Surface Spalling, from 10 to 12 o'clock, within 8 inches of joint: NO - FLAKING

    74.7 ft. - Surface Spalling, from 10 to 12 o'clock, within 8 inches of joint: NO - FLAKING

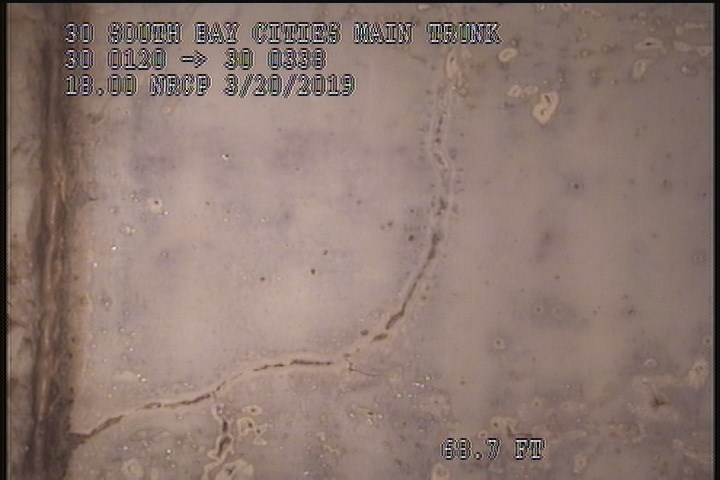

  • Downstream Manhole, Survey Ends - 5:20AM

    90.6 ft. - Downstream Manhole, Survey Ends - 5:20AM

All inspections of P17824Work order 0760336

Observations (16)

DistanceCodeObservation
90MGOConn. @ Mh, 9 O' Clock. Active LARGE OUT GOING LINE
74.7SSSFLAKING
2MGOWHITE COATING ON PIPE START
90MGOConn. @ Mh, 3 O' Clock. Active LARGE INCOMING LINE
0AMH5:05AM
90.6AMH5:20AM
90DAGSIN MH
10.8MGOVCP UNDER COATING
0——
2MMCVCP
90DAGSIN MH
0MWM—
0MWL—
25.9MGOPEELING COATING OFF VCP
8MGO18" PIPE
90MGOWHITE COATING ON PIPE FINISH

Properties (6)

custom_field_three
PIPE NOT NRCP-POSSIBLE VCP-WHITE COATING ON PIPE
custom_field_two
4
customer
LACSD
datetime
2019-03-20T01:48:47-07:00
documentation
MARTIN,REVELES,OLIVER 111,CASTILLO
is_lateral_inspection
false
