Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 19, 2019, 07:03 PM

  • Section#2_G 0078_G 0077__3192019__I0124.mp4

Date
03/19/2019
W/O
0759064
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00347
PipeID
P10440
Time
12:03 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0124
Sewer Name
G JOINT OUTFALL G - UNIT 7
City
LONG BEACH
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
05
Purpose
Routine Assessment
Project
20190319SHO_JOINT_OUTFALL_G_UNIT_7
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
G 0078
Downstream MH
G 0077
Dir. of Survey
Downstream
Length Surveyed
171.9 ft.
Total Length
171.9 ft.
Structural Index
3
Structural Quick
3E2E
Structural Rating
160
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
160
Pipe schematic from manhole G 0078 to G 0077
MH: G 0078MH: G 0077downstream0 ft. AMH - Upstream Manhole, Survey Begins - G 00780 ft. MWL - Water Level, 35 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area10 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start10 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start141.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 12"170.4 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish170.4 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish171.9 ft. AMH - Downstream Manhole, Survey Ends - G 0077

Observation photos (2)

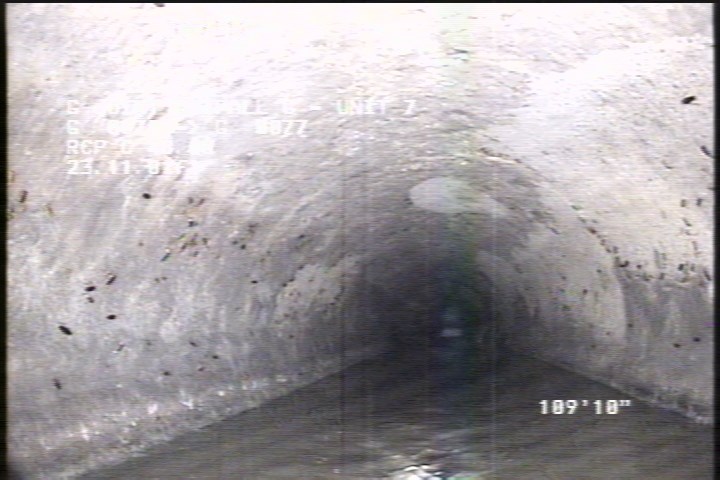

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    10 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

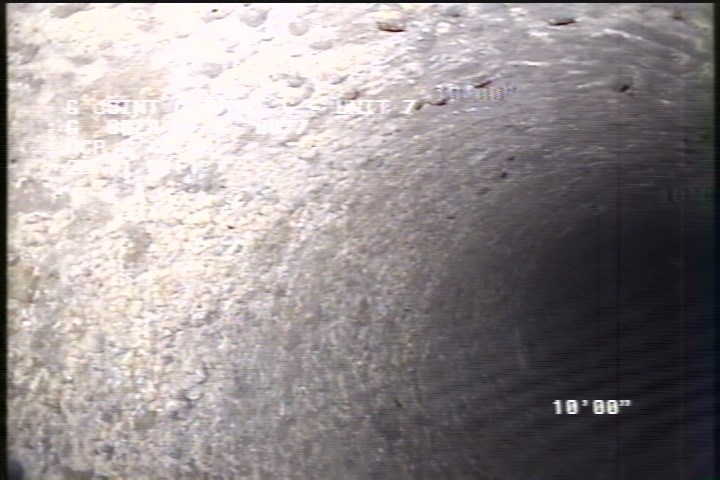

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    10 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P10440Work order 0759064

Observations (9)

DistanceCodeObservation
10SSS—
0AMHG 0078
0MWL—
171.9AMHG 0077
170.4SSS—
170.4SAV—
0MWM—
141.9TFA—
10SAV—

Properties (4)

customer
LACSD
datetime
2019-03-19T12:03:06-07:00
documentation
OBREGON, YOUNG, BRAR, RUVALCABA
is_lateral_inspection
false
