Wastewater/Activity/PacpInspection/1.0Mar 18, 2019, 11:30 AM
C 0119B_A 0247_3182019_060143.mp4
- Date
- 03/18/2019
- W/O
- 0759956
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00127
- PipeID
- P09642
- Time
- 4:30 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1153
- Sewer Name
- C JOINT OUTFALL C - UNIT 4B
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 20
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190318MDM_JOINT_OUTFALL_C_UNIT_4B
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- C 0119B
- Downstream MH
- A 0247
- Dir. of Survey
- Downstream
- Length Surveyed
- 19.6 ft.
- Total Length
- 19.6 ft.
- Structural Index
- 5
- Structural Quick
- 5241
- Structural Rating
- 14
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (3)

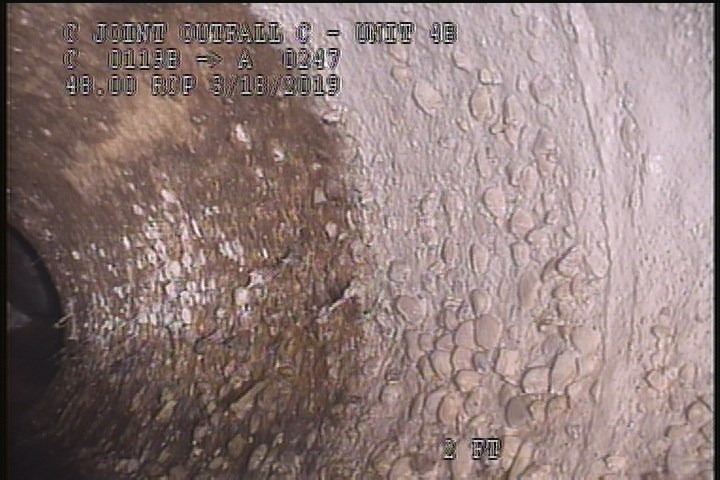

2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

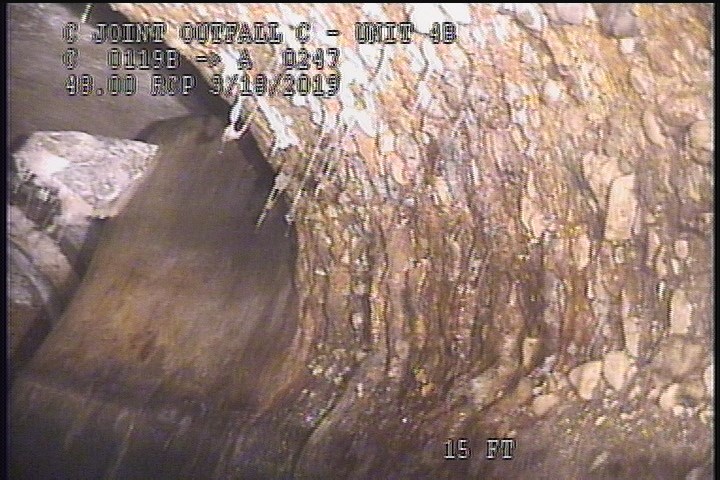

15 ft. - Surface Reinforcement Corroded, from 01 to 04 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

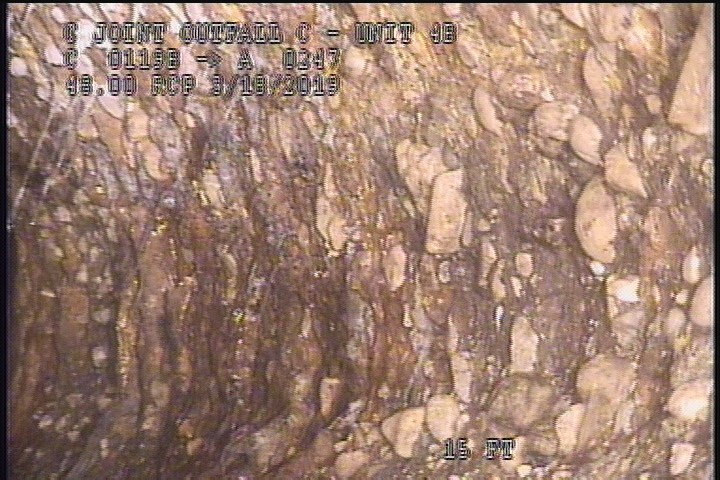

15 ft. - Surface Reinforcement Corroded, from 01 to 04 o'clock, within 8 inches of joint: NO - CIRCUM REBAR
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 15 | SRC | CIRCUM REBAR |
| 0 | AMH | 5:55AM |
| 2 | SAM | SEVERE AGG |
| 0 | MWL | — |
| 2 | MGO | ZOOM 15' |
| 19 | SAM | SEVERE AGG |
| 0 | MWM | — |
| 15 | SRC | CIRCUM REBAR |
| 19.6 | AMH | 6:10AM |
Properties (6)
- custom_field_three
- CIRCUM REBAR CORRODED
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-03-18T04:30:09-07:00
- documentation
- MARTIN,OLIVER 111,CASTILLO
- is_lateral_inspection
- false
