Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 18, 2019, 08:44 AM

  • C 0119_C 0118_3182019_033248.mp4

Date
03/18/2019
W/O
0759956
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00127
PipeID
P09639
Time
1:44 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1153
Sewer Name
C JOINT OUTFALL C - UNIT 4B
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20190318MDM_JOINT_OUTFALL_C_UNIT_4B
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
C 0118
Downstream MH
C 0119
Dir. of Survey
Upstream
Length Surveyed
60.5 ft.
Total Length
60.5 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole C 0118 to C 0119
MH: C 0118MH: C 0119upstream0 ft. AMH - Upstream Manhole, Survey Ends - 3:40AM-ZOOM APPOX 60'0.5 ft. MGO - General Observation - ZOOM APPOX 60'0.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE58.5 ft. DSZ - Deposits Settled Other, 30 %of cross sectional area, at 08 o'clock, , within 8 inches of joint: YES - SLUDGE58.5 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG60.5 ft. AMH - Upstream Manhole, Survey Begins - 3:30AM60.5 ft. MWL - Water Level, 30 %of cross sectional area - NO FLOW60.5 ft. MWM - Water Mark, 30 %of cross sectional area - 30% SLUDGE

Observation photos (5)

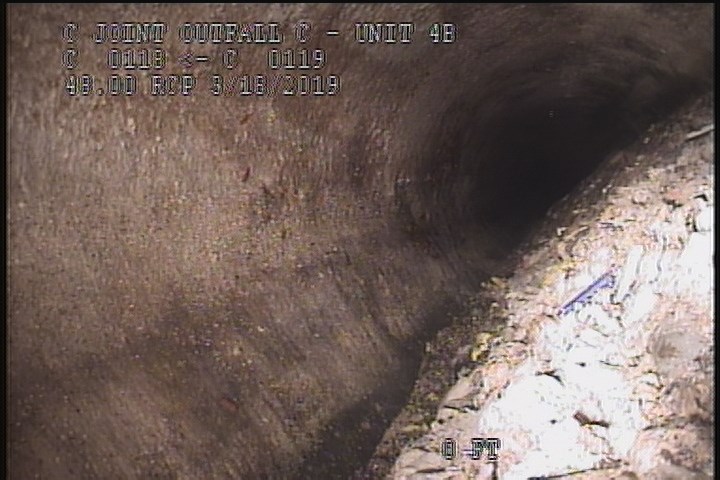

  • Deposits Settled Other, 30 %of cross sectional area, at 08 o'clock, , within 8 inches of joint: YES - SLUDGE

    2 ft. - Deposits Settled Other, 30 %of cross sectional area, at 08 o'clock, , within 8 inches of joint: YES - SLUDGE

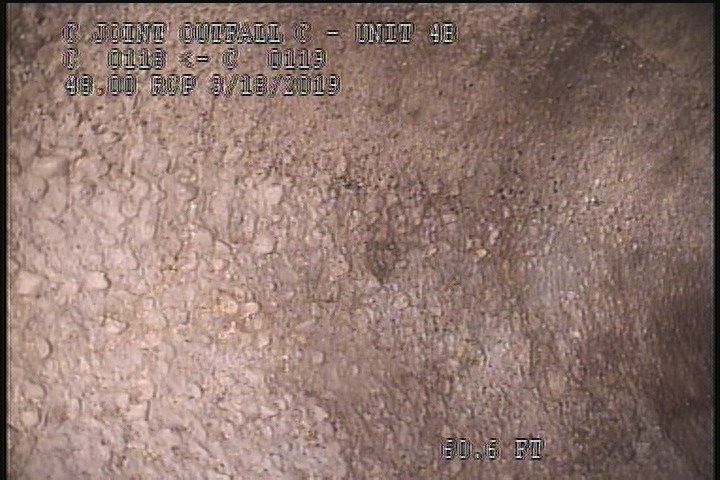

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG

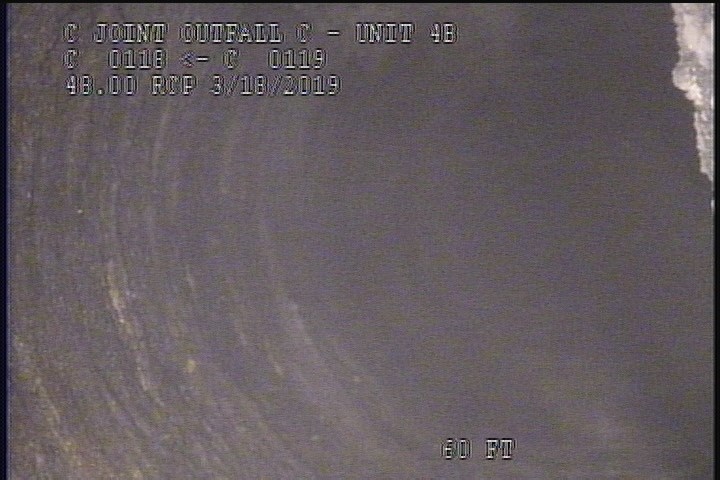

  • General Observation - ZOOM APPOX 60'

    60 ft. - General Observation - ZOOM APPOX 60'

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

    60 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

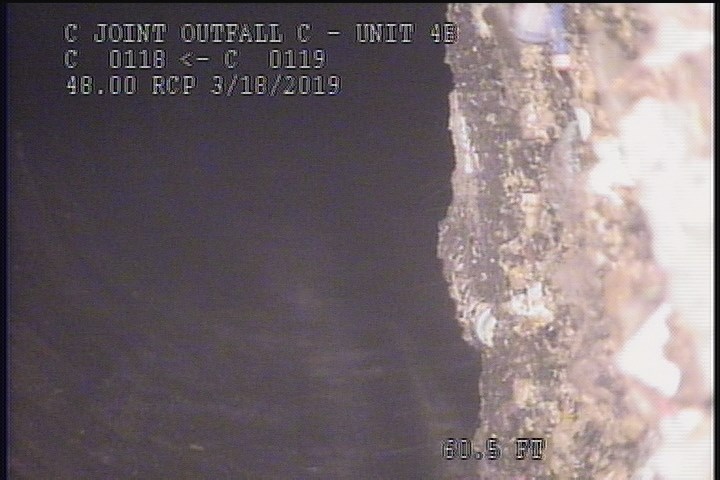

  • Upstream Manhole, Survey Ends - 3:40AM-ZOOM APPOX 60'

    60.5 ft. - Upstream Manhole, Survey Ends - 3:40AM-ZOOM APPOX 60'

All inspections of P09639Work order 0759956

Observations (8)

DistanceCodeObservation
2DSZSLUDGE
0AMH3:30AM
60MGOZOOM APPOX 60'
0MWLNO FLOW
60.5AMH3:40AM-ZOOM APPOX 60'
2SAPSEVERE AGG
60SSSBLISTERING PEELING CONCRETE
0MWM30% SLUDGE

Properties (7)

additional_info
REVERSE INSPECTION
custom_field_three
CIRCUM REBAR CORRODED & MISSING UPSTREAM- ZOOM 60'
custom_field_two
1
customer
LACSD
datetime
2019-03-18T01:44:14-07:00
documentation
MARTIN,OLIVER 111,CASTILLO
is_lateral_inspection
false
