Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 18, 2019, 08:42 AM

  • C 0119_C 0118_3182019_030917.mp4

Date
03/18/2019
W/O
0759956
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00127
PipeID
P09639
Time
1:42 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1153
Sewer Name
C JOINT OUTFALL C - UNIT 4B
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20190318MDM_JOINT_OUTFALL_C_UNIT_4B
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
C 0119
Downstream MH
C 0118
Dir. of Survey
Downstream
Length Surveyed
60 ft.
Total Length
60 ft.
Structural Index
5
Structural Quick
5141
Structural Rating
9
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
5
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole C 0119 to C 0118
MH: C 0119MH: C 0118downstream0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN0 ft. AMH - Upstream Manhole, Survey Begins - 2:55AM2 ft. MGO - General Observation - DEBRIE & SLUDGE UNDER FLOW2 ft. SRC - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BROKEN MISSING CIRCM REBAR2 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG10 ft. MGO - General Observation - ZOOM APPOX 10'10 ft. SRC - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BROKEN MISSING CIRCUM REBAR60 ft. MSA - Survey Abandoned - ZOOM APPOX 60' NO FLOW

Observation photos (4)

  • Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BROKEN MISSING CIRCM REBAR

    2 ft. - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BROKEN MISSING CIRCM REBAR

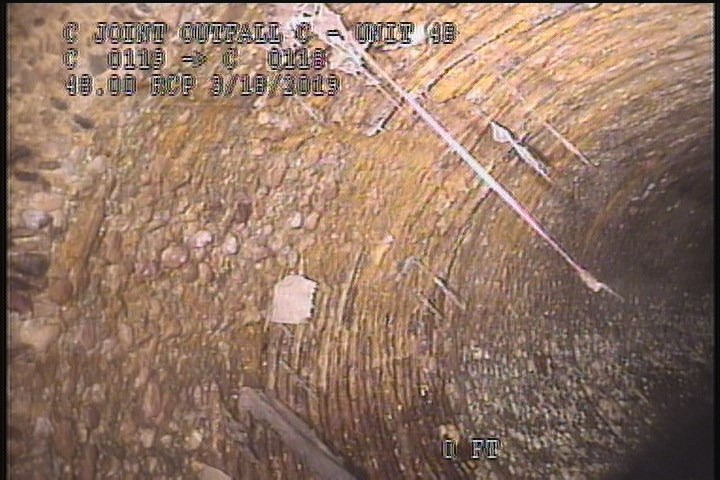

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG

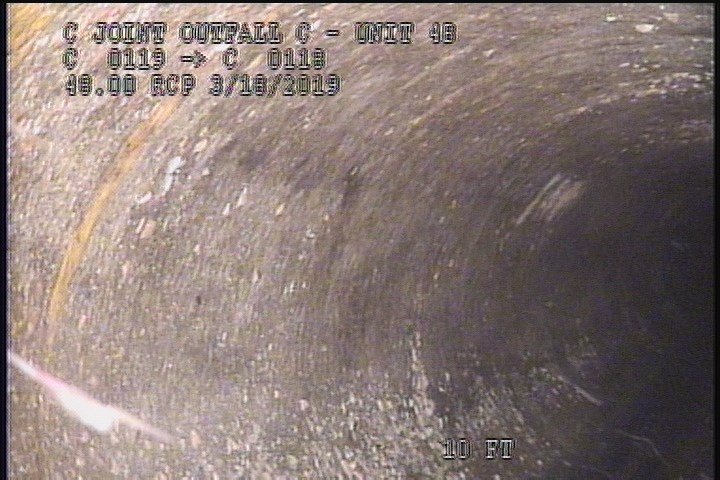

  • Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BROKEN MISSING CIRCUM REBAR

    10 ft. - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BROKEN MISSING CIRCUM REBAR

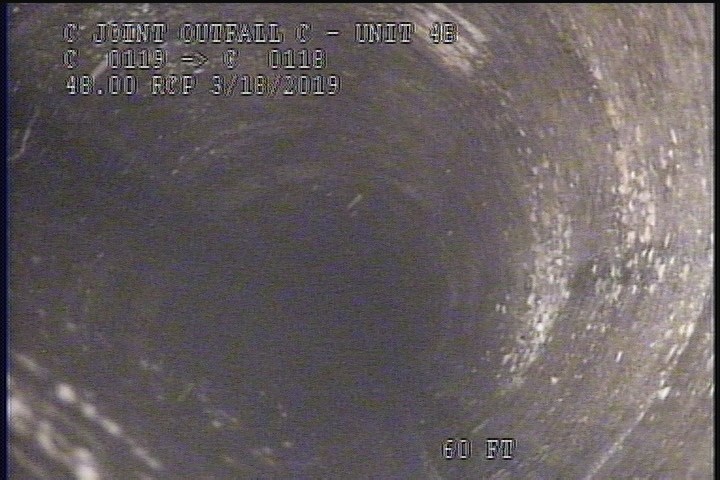

  • Survey Abandoned - ZOOM APPOX 60' NO FLOW

    60 ft. - Survey Abandoned - ZOOM APPOX 60' NO FLOW

All inspections of P09639Work order 0759956

Observations (9)

DistanceCodeObservation
2MGODEBRIE & SLUDGE UNDER FLOW
2SRCBROKEN MISSING CIRCM REBAR
0MGOConn. @ Mh, 3 O' Clock. OPEN
2SAMSEVERE AGG
10MGOZOOM APPOX 10'
10SRCBROKEN MISSING CIRCUM REBAR
0MGOConn. @ Mh, 3 O' Clock. OPEN
60MSAZOOM APPOX 60' NO FLOW
0AMH2:55AM

Properties (6)

custom_field_three
CIRCUM REBAR CORRODED MISSING - ZOOM APPOX 60'
custom_field_two
1
customer
LACSD
datetime
2019-03-18T01:42:12-07:00
documentation
MARTIN,OLIVER 111,CASTILLO
is_lateral_inspection
false
