Wastewater/Activity/PacpInspection/1.0Mar 13, 2019, 07:31 PM
02 1109_02 1407_3132019_123416.mp4
- Date
- 03/13/2019
- W/O
- 0760483
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00300
- PipeID
- P03683
- Time
- 12:31 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7940
- Sewer Name
- 02 RANDOLPH STREET TRUNK
- City
- COMMERCE
- Loc. details
- Sidewalk
- Location Code
- F
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 20
- Purpose
- Maintenance Related
- Project
- 20190313DF_RANDOLPH_STREET_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 02 1109
- Downstream MH
- 02 1407
- Dir. of Survey
- Downstream
- Length Surveyed
- 117 ft.
- Total Length
- 117 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

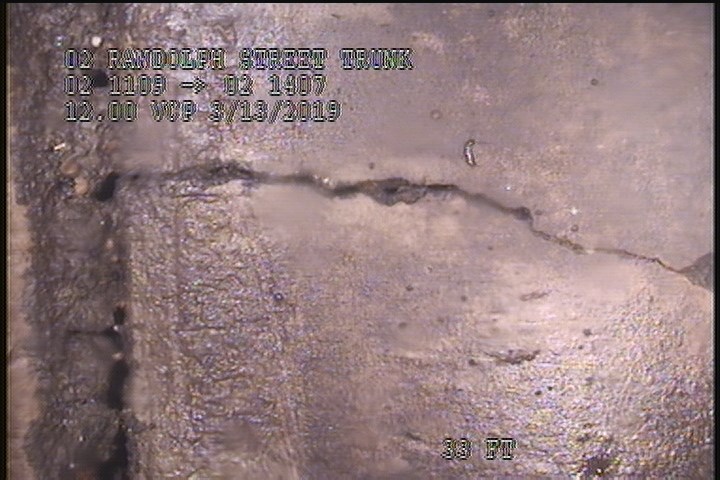

2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

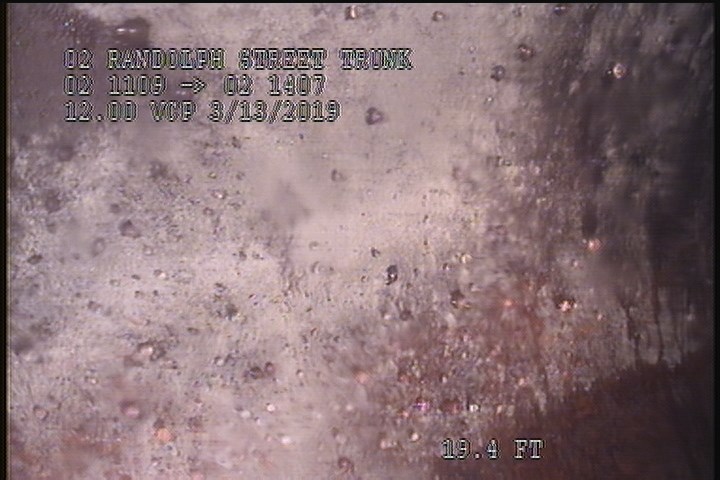

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0.1 | MWL | — |
| 117 | AMH | 12:43 PM |
| 115.5 | CM | — |
| 0 | AMH | 12:32 PM |
| 117 | MGO | Grease Throughout The Reach (5%) |
| 0.1 | MWM | — |
| 2 | CM | — |
| 115.5 | SSS | — |
| 2 | SSS | — |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-03-13T12:31:58-07:00
- documentation
- FRANKLIN, IGNACIO, RUVALCABA
- is_lateral_inspection
- false
