Wastewater/Activity/PacpInspection/1.0Mar 12, 2019, 03:59 PM
Section#1_G 0076_G 0075__3122019__I0123.mp4
- Date
- 03/12/2019
- W/O
- 0759064
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00347
- PipeID
- P10438
- Time
- 8:59 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0123
- Sewer Name
- G JOINT OUTFALL G - UNIT 7
- City
- LONG BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- 20190312SHO_JOINT_OUTFALL_G_UNIT_7
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- G 0076
- Downstream MH
- G 0075
- Dir. of Survey
- Downstream
- Length Surveyed
- 757 ft.
- Total Length
- 757 ft.
- Structural Index
- 3
- Structural Quick
- 3V2A
- Structural Rating
- 364
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 364
Observation photos (5)

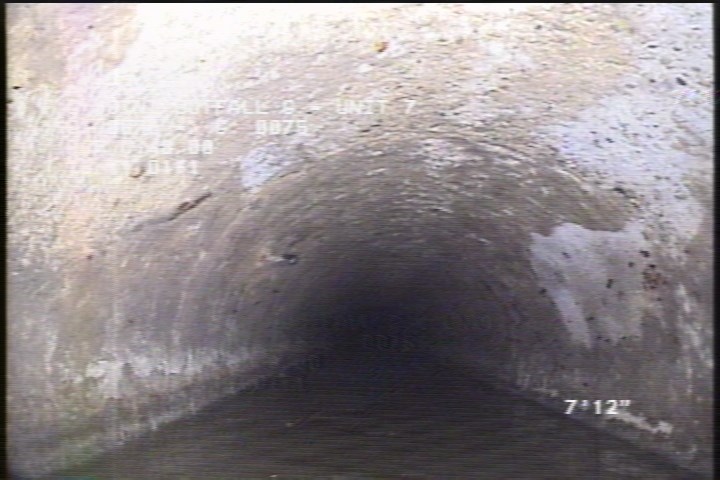

8 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

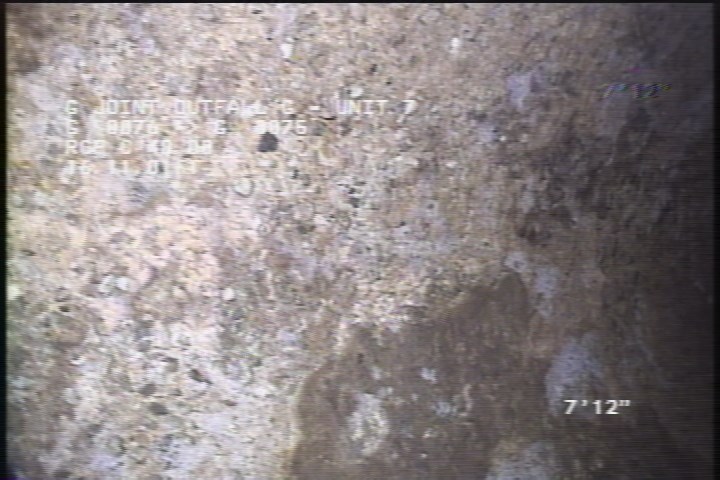

8 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

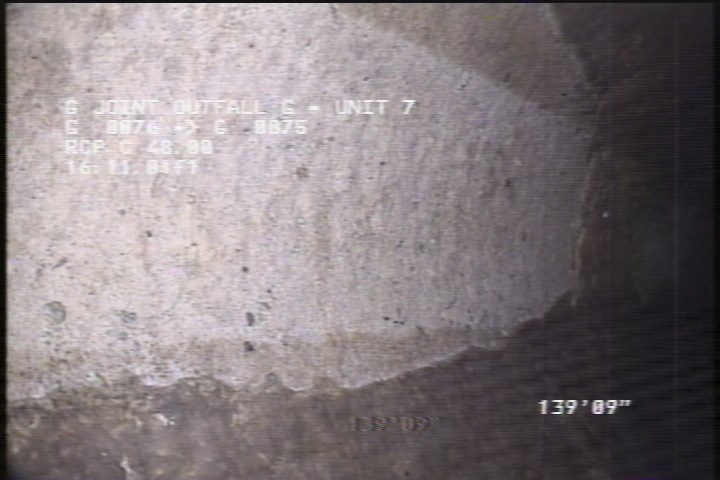

139.8 ft. - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES

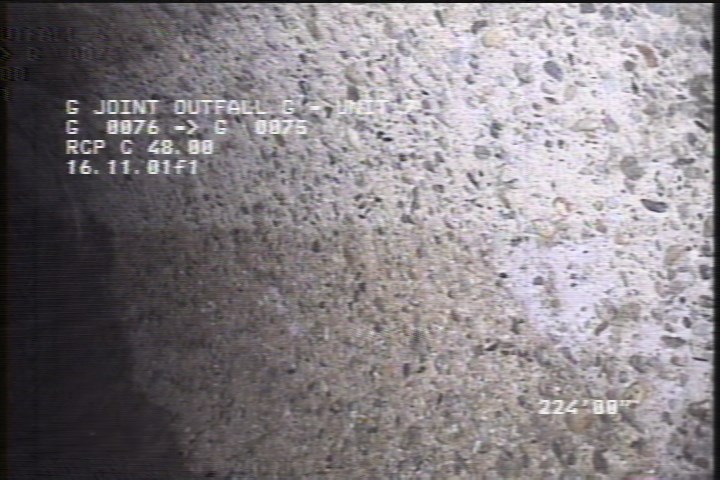

224 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES

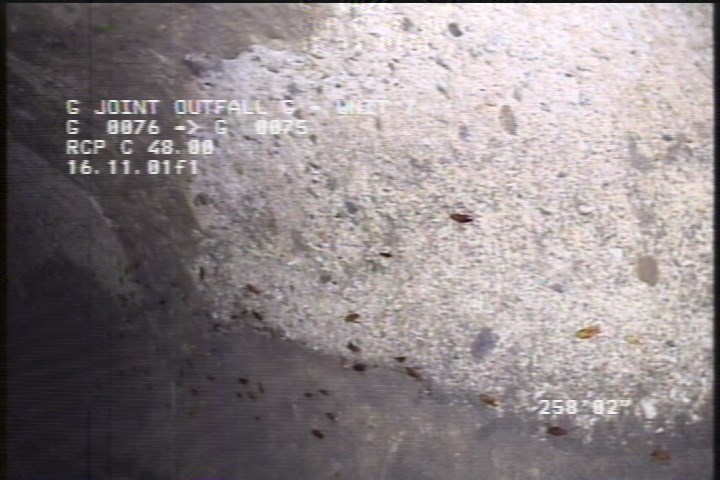

258.2 ft. - Surface Aggregate Visible, from 10 to 03 o'clock, within 8 inches of joint: YES, Start - SPORADICALLY THROUGHOUT
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | G 0076 |
| 65.9 | SAV | — |
| 0 | MWM | — |
| 224 | SAV | — |
| 757 | AMH | G 0075 |
| 756.6 | SAV | — |
| 0 | MWL | — |
| 8 | SSS | — |
| 8 | SAV | — |
| 139.8 | SAV | — |
| 65.2 | SSS | — |
| 258.2 | SAV | SPORADICALLY THROUGHOUT |
Properties (6)
- custom_field_three
- SPORADIC AGGREGATE THROUGHOUT THE REACH
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-03-12T08:59:50-07:00
- documentation
- OBREGON, BRAR, YOUNG, RUVALCABA
- is_lateral_inspection
- false
