Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 15, 2019, 10:11 AM

  • 05 1011_05 1010_3152019_032115.mp4

Date
03/15/2019
W/O
0760333
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00421
PipeID
P06244
Time
3:11 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1152
Sewer Name
05 AVIATION BOULEVARD TRUNK
City
HAWTHORNE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
12
Purpose
Routine Assessment
Project
20190312MDM_AVIATION_BOULEVARD_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
05 1010
Downstream MH
05 1011
Dir. of Survey
Upstream
Length Surveyed
365.9 ft.
Total Length
365.9 ft.
Structural Index
2
Structural Quick
2300
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 05 1010 to 05 1011
MH: 05 1010MH: 05 1011upstream0 ft. AMH - Upstream Manhole, Survey Ends - 3:45AM0.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE0.7 ft. MGO - General Observation - MAG COAT 20% FINISH191.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE330.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLIDSTERING PEELING CONCRETE330.8 ft. MGO - General Observation - MAG COAT 20% START363.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE363.9 ft. MGO - General Observation - 90-% MAG COAT START365.9 ft. MWL - Water Level, 10 %of cross sectional area365.9 ft. AMH - Downstream Manhole, Survey Begins - 3:15AM365.9 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active365.9 ft. MWM - Water Mark, 30 %of cross sectional area

Observation photos (5)

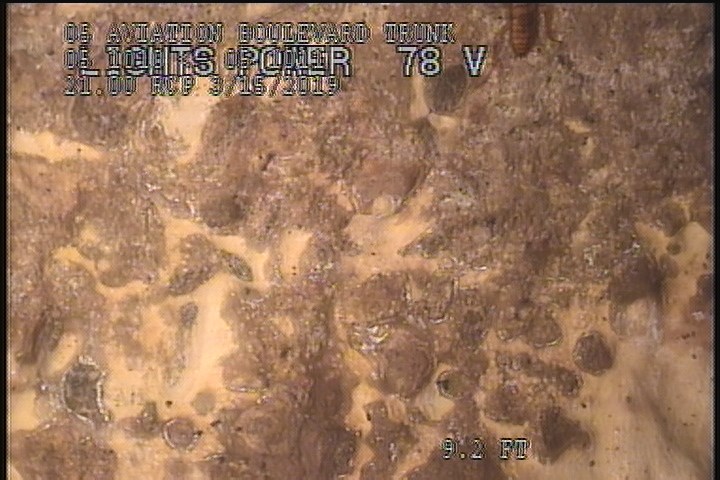

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

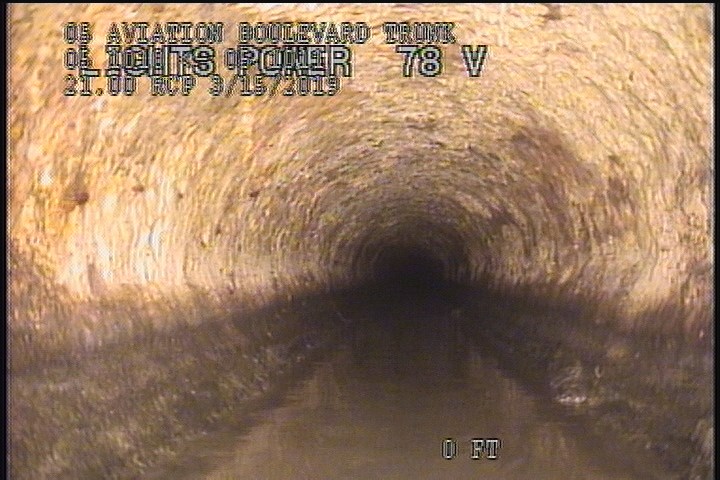

  • General Observation - 90-% MAG COAT START

    2 ft. - General Observation - 90-% MAG COAT START

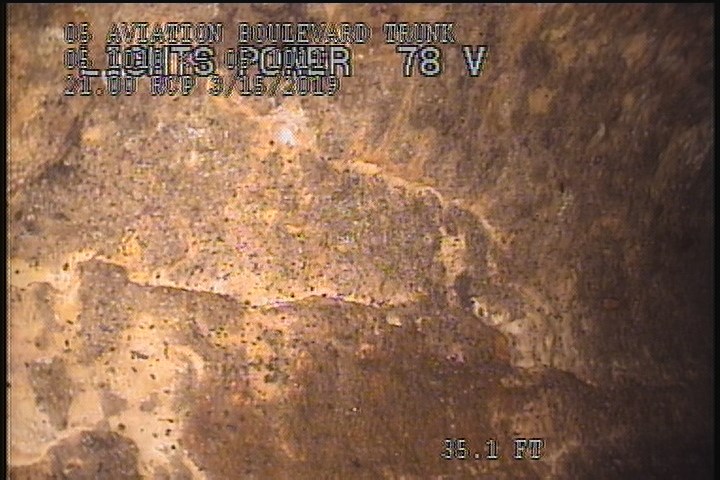

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLIDSTERING PEELING CONCRETE

    35.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLIDSTERING PEELING CONCRETE

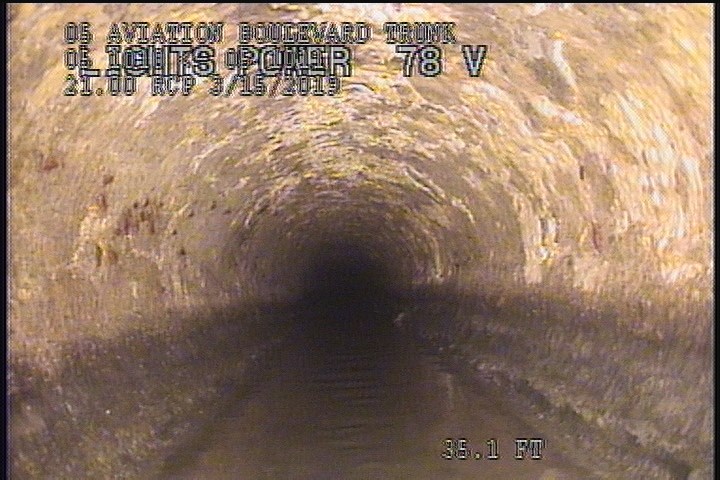

  • General Observation - MAG COAT 20% START

    35.1 ft. - General Observation - MAG COAT 20% START

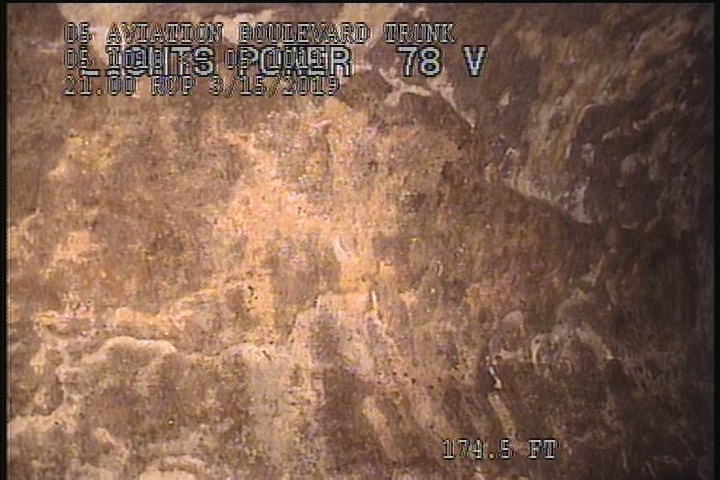

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

    174.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

All inspections of P06244Work order 0760333

Observations (12)

DistanceCodeObservation
2SSSBLISTERING PEELING CONCRETE
35.1SSSBLIDSTERING PEELING CONCRETE
2MGO90-% MAG COAT START
35.1MGOMAG COAT 20% START
174.5SSSBLISTERING PEELING CONCRETE
365.9AMH3:45AM
365.2SSSBLISTERING PEELING CONCRETE
0MWL—
365.2MGOMAG COAT 20% FINISH
0AMH3:15AM
0MGOConn. @ Mh, 9 O' Clock. Active
0MWM—

Properties (7)

additional_info
REVERSE INSPECTION
custom_field_three
BLISTERING PEELING CONCRETE
custom_field_two
4
customer
LACSD
datetime
2019-03-15T03:11:54-07:00
documentation
MARTIN,OLIVER 111,CASTILLO
is_lateral_inspection
false
