Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 14, 2019, 11:47 AM

  • 05 1012_05 1011_3142019_050244.mp4

Date
03/14/2019
W/O
0760333
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00421
PipeID
P06245
Time
4:47 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1150
Sewer Name
05 AVIATION BOULEVARD TRUNK
City
HAWTHORNE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
12
Purpose
Routine Assessment
Project
20190312MDM_AVIATION_BOULEVARD_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
05 1012
Downstream MH
05 1011
Dir. of Survey
Downstream
Length Surveyed
372.6 ft.
Total Length
372.6 ft.
Structural Index
2
Structural Quick
2500
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 05 1012 to 05 1011
MH: 05 1012MH: 05 1011downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:55AM2 ft. MGO - General Observation - MAG COAT 90% START2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE61.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE75.5 ft. MGO - General Observation - MAG COAT 60% START119.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE204.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE278.1 ft. MGO - General Observation - 30% MAG COAT START349.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE372.2 ft. MGO - General Observation - 30% MAG COAT FINISH372.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE372.6 ft. AMH - Downstream Manhole, Survey Ends - 5:35AM

Observation photos (7)

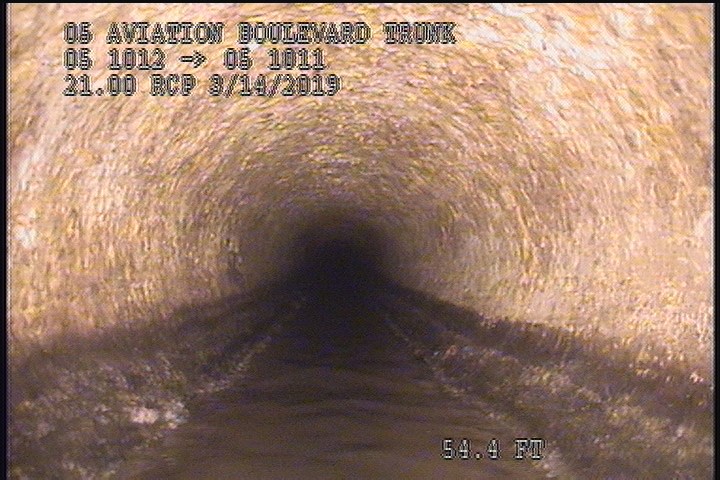

  • General Observation - MAG COAT 90% START

    2 ft. - General Observation - MAG COAT 90% START

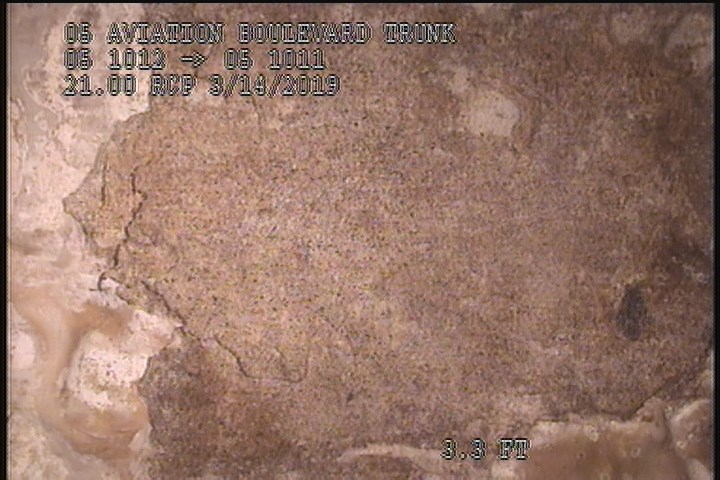

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

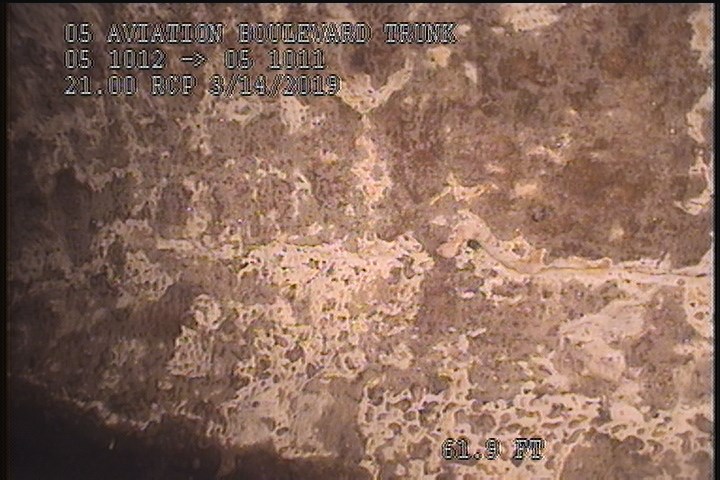

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE

    61.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE

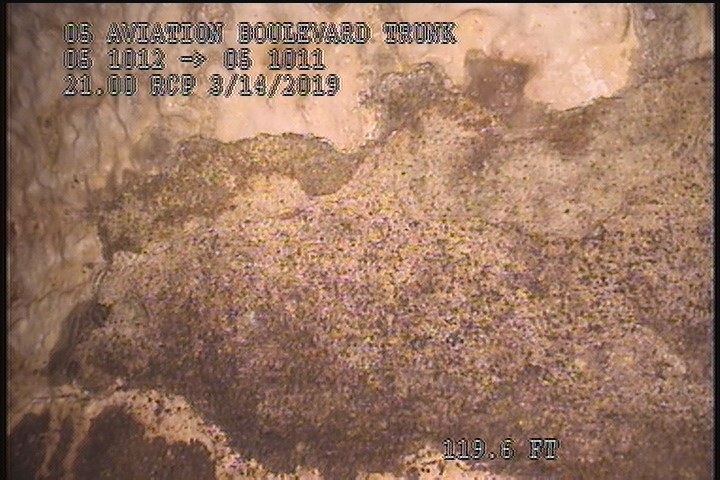

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

    119.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

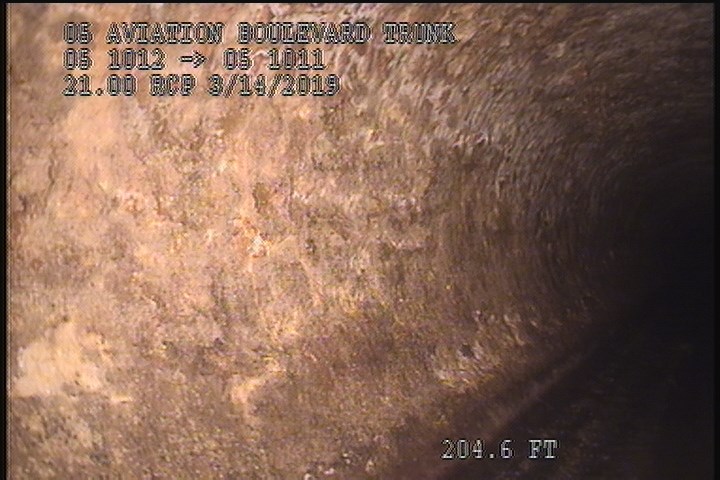

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

    204.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

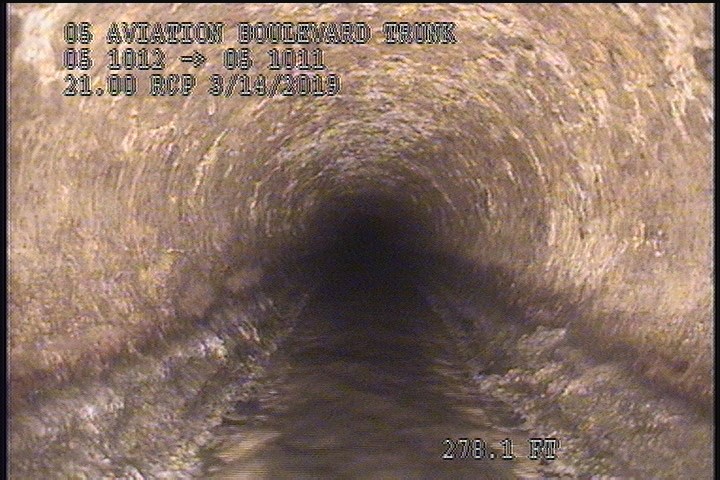

  • General Observation - 30% MAG COAT START

    278.1 ft. - General Observation - 30% MAG COAT START

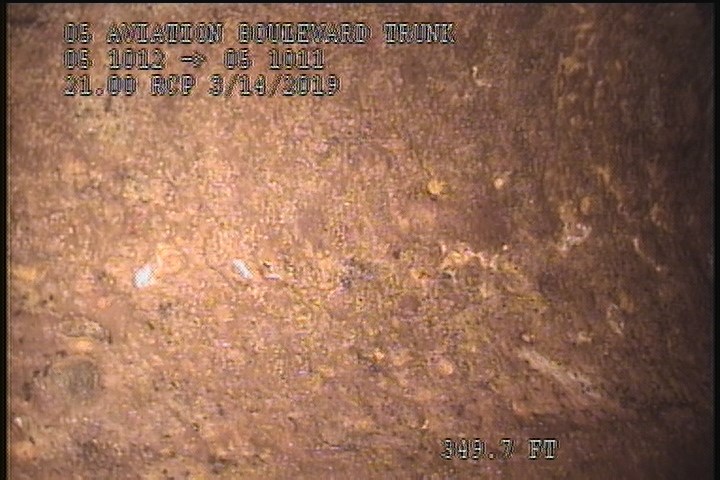

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

    349.7 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

All inspections of P06245Work order 0760333

Observations (14)

DistanceCodeObservation
204.6SSSBLISTERING PEELING CONCRETE
0MWM—
0MWL—
75.5MGOMAG COAT 60% START
372.2MGO30% MAG COAT FINISH
119.6SSSPEELING CONCRETE
0AMH4:55AM
2MGOMAG COAT 90% START
278.1MGO30% MAG COAT START
349.7SSSBLISTERING PEELING CONCRETE
2SSSBLISTERING PEELING CONCRETE
372.2SSSBLISTERING PEELING CONCRETE
372.6AMH5:35AM
61.9SSSBLISTERING CONCRETE

Properties (6)

custom_field_three
BLISTERING PEELING CONCRETE-30% MAG COAT
custom_field_two
4
customer
LACSD
datetime
2019-03-14T04:47:24-07:00
documentation
MARTIN,OLIVER 111,CASTILLO
is_lateral_inspection
false
